Installing a Power Module
To install a power module, do the following:
1. If equipped, remove the existing module.
2. If applicable, connect the supplied terminal block to the module or connect the
terminal block from the previous module.
3. Confirm or connect the wiring from the power supply to the module. For more
information, refer to
4. Insert the module into the empty slot.

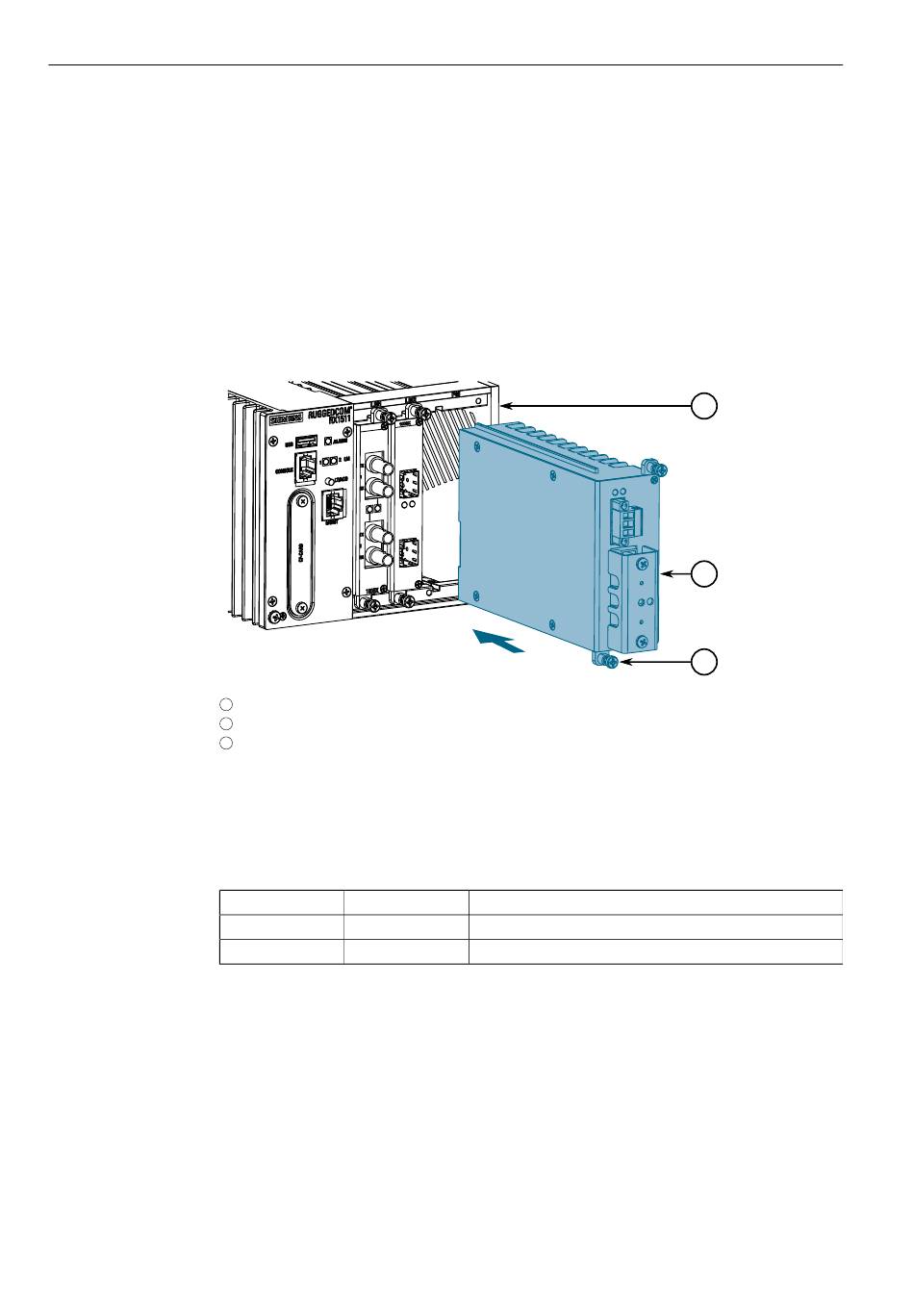

Figure 4.6
5. Hand-tighten the screws to secure the power module to the chassis.
6. Turn on power to the device and confirm the module is receiving and supplying
power. This is indicated by the LEDs on the module.
RUGGEDCOM RX1511
Installation Manual, 12/2019, C79000-G8976-1056-16
All manuals and user guides at all-guides.com
"Connecting Power (Page
Chassis
1
Power Module
2
Screws
3
Installing a Power Module
LED State
O Green
I Green
4.3 Installing/Removing Power Modules
9)".
Description
The module is supplying power
The module is receiving power
Modules
1
2
3
