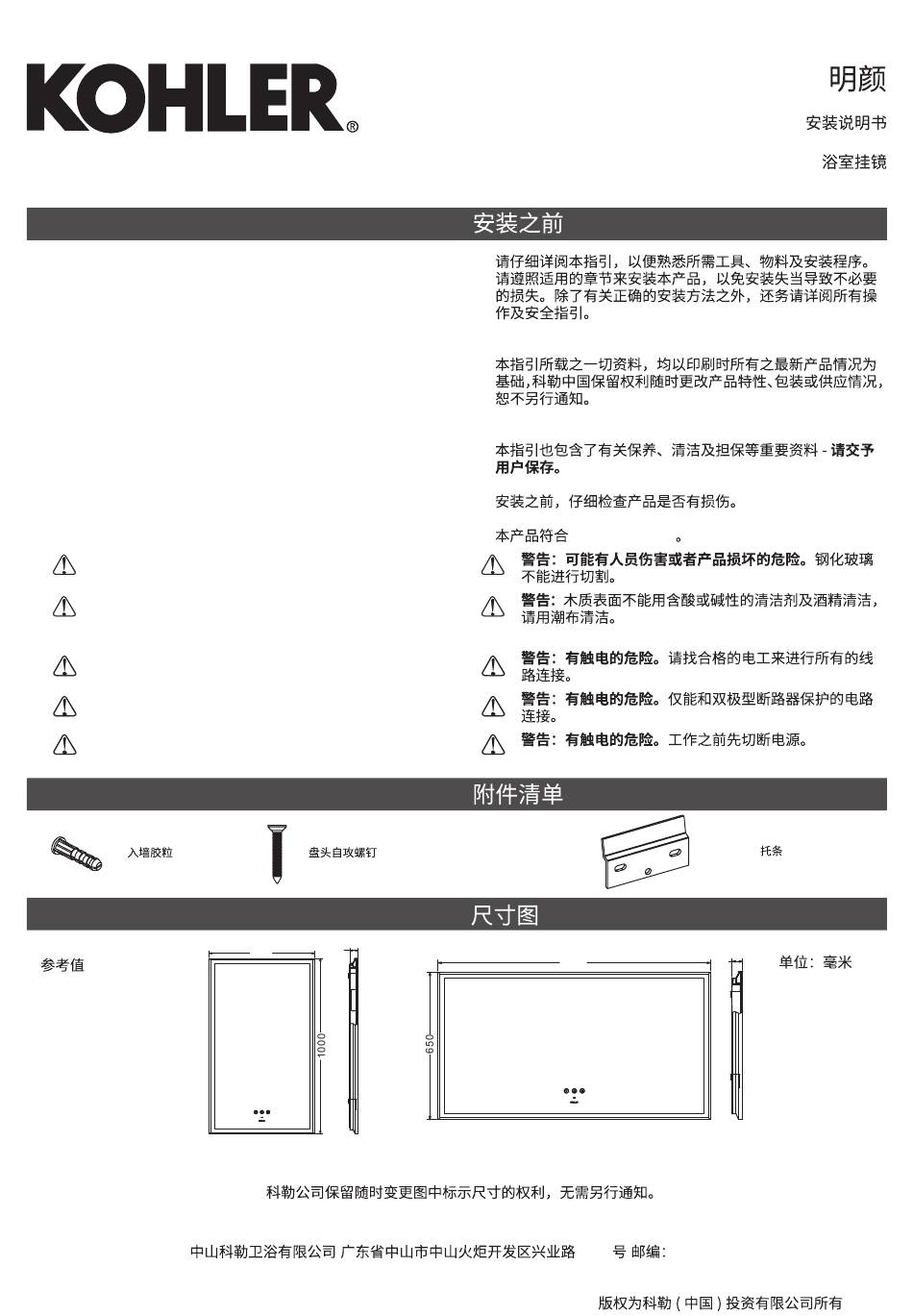

Kohler K-26773-C05 Installation Instructions

BEFORE YOU BEGIN

• Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
• All information in these instructions is based upon the latest
product information available at the time of publication.
Kohler China. reserves the right to make changes in
product characteristics, packaging, or availability at any
time without notice.
• These instructions contain important care, cleaning, and
warranty information-please leave instructions for the
consumer.
• Before installation carefully inspect the new fixture for any
signs of damage.
• This product complies with GB 24977-2010.
WARNING: Risk of injury or product damage.
Tempered glass can not be cut.
WARNING: Don't use acidic or alkaline cleaners or
alcohol to clean the wooden surface. Use a dampened
cloth to clean.
WARNING: Risk of electrical shock. A licensed
electrician should make all electrical connections.
WARNING: Risk of electrical shock. Connect only to
a circuit protected by a typical two-pole circuit breaker.
WARNING: Risk of electrical shock. Disconnect
power before servicing.

ACCESSORIES LIST

Wall Anchors
8PCS

ROUGHING-IN

Reference Value
ZHONGSHAN KOHLER SHOWER CO., LTD.
DEVELOPMENT ZONE, ZHONGSHAN, GUANGDONG, CHINA
1521949-T2-A
Screws ST3.5 × 35
ST3.5 × 35
8PCS
46
600
K-26773-C05
Kohler reserves the right to change marked dimensions without prior notice.

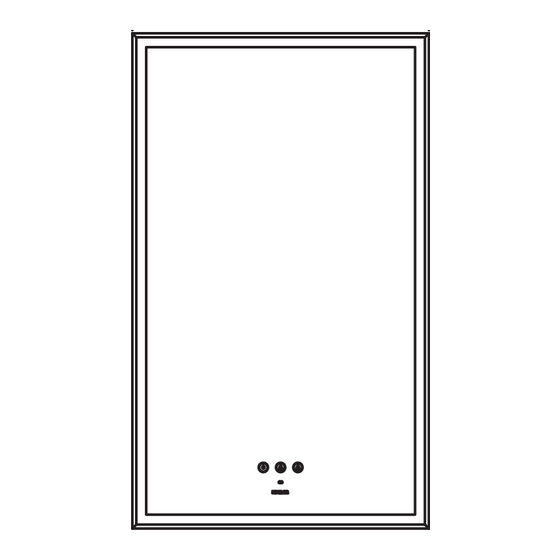

GROOMING MIRROR
•
•
•
•
• GB 24977-2010
1200
K-26774-C05
NO13-1, XINYE ROAD, ZHONGSHAN TORCH
POST CODE: 528437
13-1
-1- © Copyright Kohler China Investment Co., Ltd. 2021
©
INSTALLATIONINSTRUCTIONS
K-26773-C05/K-26774-C05
Mounting Bar
L=60
4PCS
Unit: mm
46
528437
MIRROR
2021
