Kohler VERDERA K-26385T Installation Instructions

BEFORE YOU BEGIN
Please read these instructions carefully to familiarize yourself
•
with the required tools, materials, and installation sequences.
Follow the sections that pertain to your particular installation.
This will help you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
All information in these instructions is based upon the latest
•
product information available at the time of publication. Kohler
China. reserves the right to make changes in product
characteristics, packaging, or availability at any time without notice.
• These instructions contain important care, cleaning, and warranty
information-please leave instructions for the consumer.
Before installation carefully inspect the new fixture for any signs
•
of damage.
The product complies with GB/T10357.4-2013,
•
GB/T10357.5-2013 and GB24977-2010.
TOOLS REQUIRED
ACCESSORIS LIST
ROUGHING-IN
ZHONGSHAN KOHLER SHOWER CO., LTD.
中山科勒衛浴有限公司 廣東省中山市中山火炬開發區興業路13-1號 郵編：528437
1427738-T01-A
500
K-26386T-L
Kohler reserves the right to change marked dimensions without prior notice.
科勒公司保留隨時變更圖中標示尺寸的權利，無需另行通知。
DEVELOPMENT ZONE, ZHONGSHAN, GUANGDONG, CHINA
安装之前
請仔細閱讀本指引，以便熟悉所需工具、物料及安裝程式。請遵照
•
適用的章節來安裝本產品，以免安裝失當導致不必要的損失。除了
有關正確的安裝方法之外，還務請詳閱所有操作及安全指引。
本指引所載之一切資料，均以印刷時所有之最新產品情況為基礎，
•
科勒中國保留權利隨時更改產品特性、包裝或供應情況，恕不另行
通知。
說明書包括重要的安裝、清潔及保養方面的內容，請把這些資料交
•
給用戶閱讀，保管。
安裝之前，仔細檢查產品是否有損傷。
•
本產品符合 GB/T10357.4-2013, GB/T10357.5-2013和
•
GB24977-2010。
所需工具
附件清單
尺寸圖
900
599 299
K-26385T
NO13-1, XINGYE ROAD, ZHONGSHAN TORCH
© Copyright Kohler China Investment Co., Ltd. 2020
© 安裝版權為科勒（中國）投資有限公司所有 ����
-1-
VERDERA 維樂
INSTALLATION INSTRUCTIONS

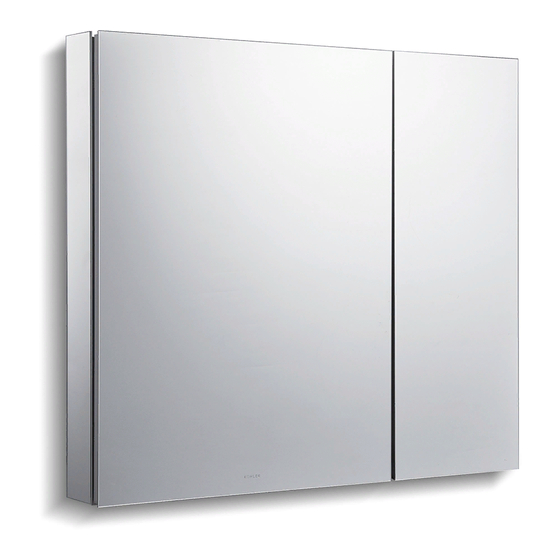

MIRRORED CABINET
K-26385T/K-26386T-L
φ 6
125
800
100
POST CODE: 528437
安裝說明書
鏡櫃
UNIT: mm
單位 : mm
