WorkForce®1
Model WF1
User's Information
Top LED Indicators (4)
Side Button
Emergency
Alarm
Button
System Status
Indicators
(4 Side LEDs)
Grace Industries, Inc.
Top Button
Antenna

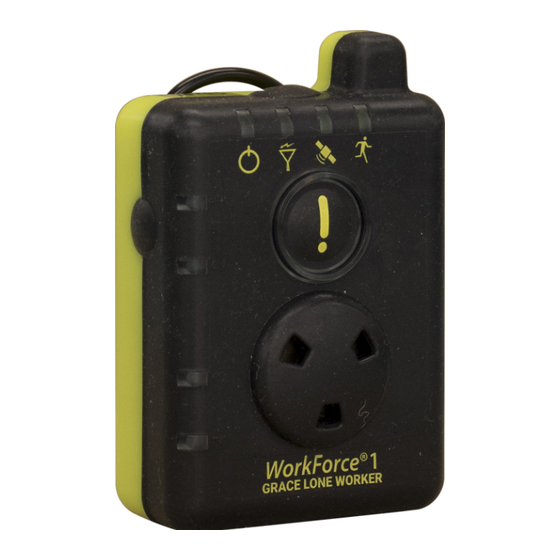

WorkForce® model WF1 is a worker-worn motion-
sensing Man-Down Alarm that uses independent, high
performance RF (radio-frequency) wireless signaling
to help protect workers in dangerous and hazardous
environments.
WorkForce® provides real-time motion-sensing, includ-
ing fall-detection, and contains an Emergency Alarm
Button to immediately transmit a distress alarm signal.
WorkForce® Alarm Monitoring (AM) version also
receives distress alarm signals from other workers
equipped with WorkForce® and alerts the user with
audible and visual indicators. Other emergency
signaling features of WorkForce® include Evacuate, PAR,
Roll-Call and optional Out-of-Range indication.
A complete worker safety system can be achieved
by using additional Grace monitoring products with
locating capabilities.
Side Button
Alarm Ring
LEDs
Piezo
Sounder
Micro B USB Connection
for Configuration
and Battery Charging
Rear View
with Grip Clip
for attachment
WorkForce WF1 UI 2021-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WorkForce 1 and is the answer not in the manual?

Questions and answers

Related Manuals for Grace Industries WorkForce 1

Summary of Contents for Grace Industries WorkForce 1

  • Page 1 Side Button Side Button Rear View Emergency with Grip Clip Alarm for attachment Alarm Ring Button LEDs System Status Piezo Indicators Sounder (4 Side LEDs) Micro B USB Connection for Configuration and Battery Charging Grace Industries, Inc. WorkForce WF1 UI 2021-11...
  • Page 2 WorkForce®, it can be manually acknowledged by on the upper left or right shoulder with the sound port facing out, simultaneously pressing both side buttons. or on the right or left hip area. The optional swivel-clip attachment Grace Industries, Inc.

  • Page 3: Mode Selection

    • Rapid pulsing of Red LEDs in Alarm Ring. • Loud audio alarm. • Audio Alarm pauses briefly as an aid for determining direction when personnel need assistance. • Radio LED flashes Red when transmitting the emergency radio signal. Grace Industries, Inc.

  • Page 4: Battery Power Level

    Charging status is displayed on the side LED status bar 1-4. This battery charge status will be indicated by the number of blinking status bar LEDs. Grace Industries, Inc.

  • Page 5: Specifications

    WARNING: Any motion sensing Alarm Time period longer than 90 seconds is potentially dangerous to the user of this product. The longer the motion sensing time period is, the greater the risk of exposing the user to a delayed response to an incapacitated, distressed worker. Grace Industries, Inc.

  • Page 6: Definition Of Terms

    Alarm Inhibit Timer: When WorkForce® receives an alarm message of an escalated situation prompting the user to acknowledge their from another GRACE Industries device and that alarm is cleared, safety status immediately. the Alarm Inhibit Timer provides a 30 second period of time where Sensing Mode: When the WorkForce®...
  • Page 7 SELECT button. To exit Survey mode, press and release both side buttons (MENU and SELECT) and then again press and hold the MENU and SELECT buttons simultaneously to power off the unit. c. The WorkForce® model WF1 is placed in Survey mode after Grace Industries, Inc.
  • Page 8 This page is intentionally blank. Except for this part. Grace Industries, Inc.
  • Page 9 Try connecting with a different USB port on the computer. The best port is a directly connected port on the body of the PC. USB hubs are a common point of communications trouble. Turn computer completely off for 5 minutes and try again. Grace Industries, Inc.

  • Page 10: Device Settings Tab

    WorkForce® has not received a ping message from a base station within the set timeout period. NOTE: To use this function, WorkForce® must be used with, and in communication with, a Grace Base (MS2000, SMS, Grace-Watch, Alarm Box, MX900, etc.) Grace Industries, Inc.

  • Page 11: Device Log

    NOTE: You cannot filter out the group your current device belongs to - it will always be active. Sync Messages: This button will transmit the configurations to the connected WF1 Read Device: Reads the configuration out of the device Grace Industries, Inc.
  • Page 12 3) Return products including Return Authorization number, prepaid and accompanied by original proof of purchase that states the date and location of purchase to: Grace Industries, Inc., Repair Department, 305 Bend Hill Road, Fredonia, PA 16124, USA.
