HIDPass5Confi g
User Information / Operation Manual

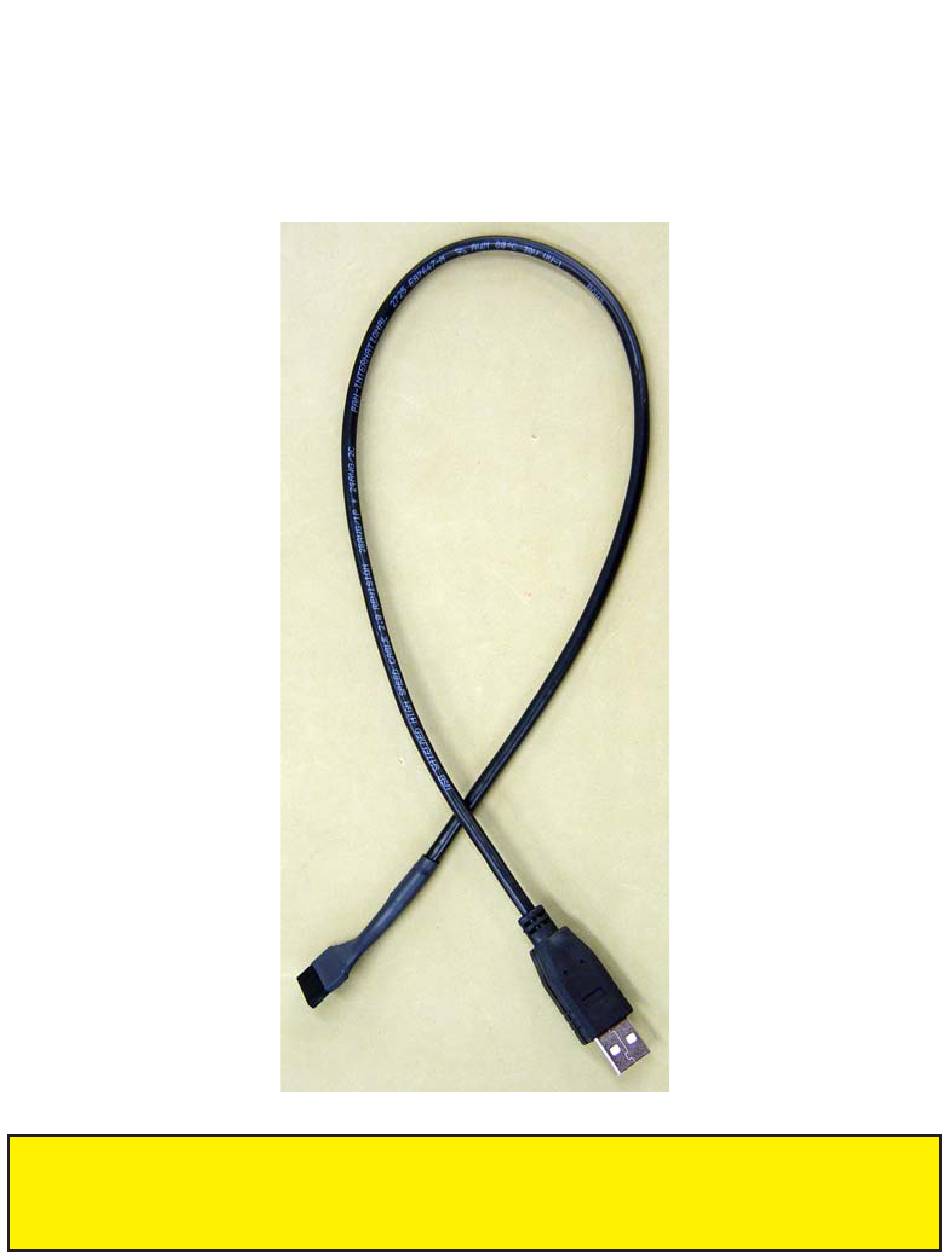

HIDPass5Confi g USB Cable for use with SP5, SP5X, TP5 and TP5 GPS Models
HIDPass5Confi g USB Cable (S5T5DLC-1) is used to download internal data logs, set clock, set
®
®
Alarm Delay, and device upgrade of SuperPASS
5 and TPASS
5. Must be used with appropriate
software available for download from http://www.graceindustries.info/utilityapps/
Advertisement
Table of Contents
Related Manuals for Grace Industries HIDPass5Config
Summary of Contents for Grace Industries HIDPass5Config
- Page 1 HIDPass5Confi g User Information / Operation Manual HIDPass5Confi g USB Cable for use with SP5, SP5X, TP5 and TP5 GPS Models HIDPass5Confi g USB Cable (S5T5DLC-1) is used to download internal data logs, set clock, set ® ® Alarm Delay, and device upgrade of SuperPASS 5 and TPASS 5.
- Page 2 1. If you do not have an install CD, the HIDPass5Confi g installer can be downloaded at: http://www.graceindustries.info/utilityapps/ or contact Grace Industries for a download link. 2. Now that you have the installer, Run HIDPass5Confi g Installer (HIDPass5Confi g x.xx Setup.exe) x.xx represents the version of the HIDPass5Confi...
- Page 3 1. Remove battery cover from PASS unit. 2. Connect USB cable as shown below A. Note, the connector is keyed and can only connect in one direction. B. Key Plug must align with the Key Slot. 3. Remove Accountability Key to power unit ON. 4.
- Page 4 7. If PASS device has successfully connected, it will show up as Device Found in Program status bar. A. Note, it may take 30 seconds after connection tones are completed before unit is displayed as Device Found in HIDPass5Confi g Program. B.
- Page 5 10. Once download is complete, your log will be displayed in a table as shown below. The events will be indexed from #1 (as the most recent) to the oldest event. A. Each event will have a timestamp of when the event occurred. 1.
- Page 6 APPENDIX A: Common Events 1. PASS Ready: Indicates a change of state of the unit. Generally paired with Turn ON / OFF, and Alarm events. 2. Turn On: The unit was off when the key was removed from the unit to activate it. Pressing the Panic Button while the unit is turned off does not register as a Turn On log entry, it will instead be recorded as Alarm Manual Activation.
- Page 7 APPENDIX B: Setting the Clock and Alarm Delay 1. While connected to the Pass Log program, click the Confi gure TPASS 5 Button. 2. Set the Clock A. Select the radio button to either use Computer time or to enter a Custom Time and then press the Set Clock Button.
- Page 8 If you don’t see the Upgrade button you might not have a SuperPASS 5X connected. See the red arrow pointing to device type below. * Before you can upgrade your device, you must contact your Grace Industries sales representative to obtain a Grace Conversion Key. Upgrade...
