Summary of Contents for Sunbeam JE8600

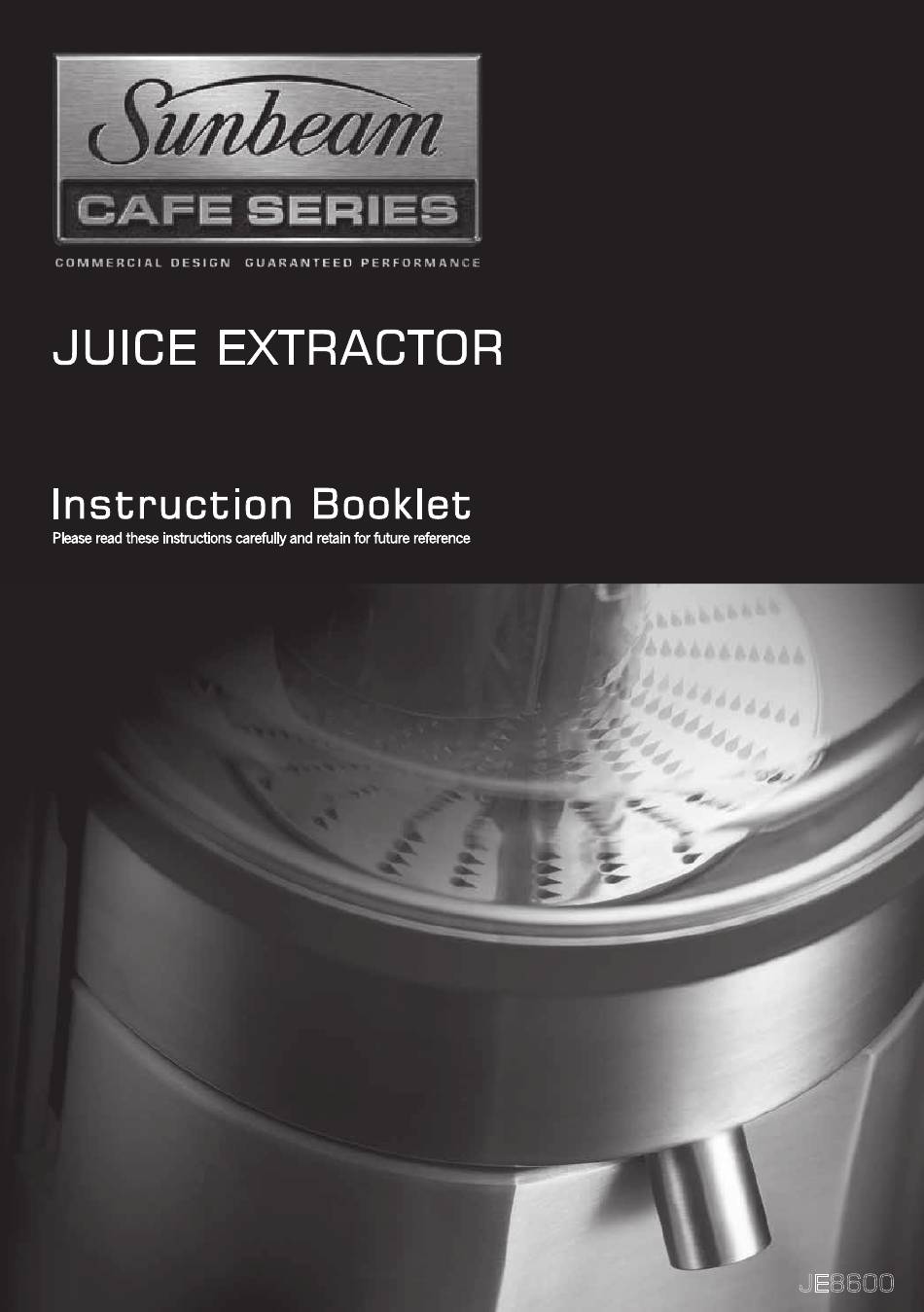

- Page 1 JE8600...
-
Page 2: Table Of Contents
Contents Sunbeam's Safety Precautions Features of your Café Series Juice Extractor ™ Helpful hints for juicing A guide to the benefits of juicing Assembling your Café Series Juice Extractor ™ Operating your Café Series Juice Extractor ™ Juicing speed guide Disassembling your Café... -
Page 3: Sunbeam's Safety Precautions
• Never operate without pulp container. • Ensure the juicer is correctly and completely assembled before turning the appliance ‘On’. Sunbeam is very safety conscious when designing and • Never leave an appliance unattended while manufacturing consumer products, but it is essential that the in use. product user also exercise care when using an electrical • Do not use an appliance for any purpose other than its appliance. Listed below are precautions which are essential intended use. - Page 4 Features of the Sunbeam Café Series ™ Juice Extractor Food pusher Whole fruit & vegetable feed chute The extra wide 75mm diameter feed chute takes whole fruit and vegetables reducing the amount of preparation needed. Patent pending feed chute lever Ensures a controlled and safe juicing action. The lever suspends the fruit above the blade until you are ready to apply downward pressure with the food pusher and commence juicing. Juicer cover Juice collector / bowl Twin-locking handles Control switch with two speeds and off Two speed electronic control combines a 1250 watt motor to achieve consistent juicing power regardless of the load.
- Page 5 Heavy Duty blade and filtering basket The large blade and filtering basket is fitted with twin blades and stainless steel photo-etched mesh for durability, performance and cleaning ease. 3 litre pulp container Large 3 litre capacity pulp container is ideal for extracting large volumes of juice without stopping. Once full the pulp container can be easily removed and emptied without having to dismantle the juicer. Commercial power with 1250 watt motor A heavy-duty 1250 watt motor with sealed ball bearings ensures an efficient juicing action. Supplying the necessary power to juice the toughest fruit and vegetables, the motor helps maximise juice extraction and delivers reliability and high performance backed by a 5 year motor guarantee. Juicing jug Large 1 litre juicing jug with froth separating lid ensuring an easy pour and a smooth tasting juice.
-
Page 6: Helpful Hints For Juicing
Helpful hints for juicing Preparing fruit and vegetables Bananas can be hard to juice but the taste goes a long way. When juicing a blend of fruit with bananas, add Wash all fruit and vegetables well before juicing. There the banana as either the first or second piece of fruit. is no need to peel vegetables that have a thin skin but The nectar of the banana will sit inside the filtering a light scrub with a clean sponge will help rid of any basket and as the remaining fruits are added into the dirt that may be stuck on or any waxy coatings. juice extractor they will release the banana nectar Peel fruit and vegetables that have a thick skin such as throughout the rest of the juice resulting in frothy melons, pineapple and citrus fruit. flavoursome juice. Juice only the freshest of fruit and vegetables to get the When juicing small fruit such as grapes or strawberries, most out them and the best flavours. add the fruit in handfuls rather than one at a time, this Cut large pieces of fruit, such as melons into large will maximise the amount of juice extracted. wedges. Be aware that beetroot stains all other fruit and Some seeds from citrus fruits can be bitter so you may vegetables. If juicing several different juice want to remove some of the seeds if desired. combinations, juice the drink with the beetroot last, so Remove seeds and stones from fruit such as mangoes, as to not stain the other drinks. papaya and stone fruit. This will prevent the blade from getting damaged. Juicing techniques When juicing different fruit and vegetables it may help to juice in different combinations. For example, when juicing apples and oranges, juice the soft fruit (oranges) -
Page 7: A Guide To The Benefits Of Juicing
A guide to the benefits of juicing Fruit / Vegetable Source of Benefits KJ per 100g Apples Carotenes, pectin, potassium, May help in the treatment 150kj/100g vitamin C and dietary fibre, of constipation. energy giving carbohydrates. Apricots Beta-carotene, iron, vitamin C, High in natural sugars for energy. 280kj/100g dietary fibre. Banana Potassium, carbohydrates, Provides sustained energy. 225kj/100g dietary fibre, vitamin B6, vitamin C. Beetroot Folate, potassium, leafy tops are rich The folate is excellent for 120kj/100g in beta carotene, calcium and iron. healthy cells. Blueberries Carotenoids, vitamin C. - Page 8 A guide to the benefits of juicing (continued) Fruit / Vegetable Source of Benefits KJ per 100g Mango Beta carotene, potassium, flavenoids Easy to digest. 235kj/100g and other antioxidants. Mint Antispasmodic volatile oils, Aids digestion. flavenoids, menthol. Oranges High in vitamin C, fibre, beta Excellent for healthy skin and helps 100kj/100g carotene, flavenoids, thiamine, the body’s defences against bacterial pectin, folate. infections. Papaya Protective carotenoids, rich in Helps digest proteins. 160kj/100g vitamin C, fibre, rich in papain. Parsley Vitamin C, iron.
-
Page 9: Assembling Your Café Series
Assembling your Café Series Juice ™ Extractor Before Use 3. P osition the stainless steel blade and filtering basket onto the motor drive shaft and push down until firmly After unpacking your juicer, we recommend that you in place – figure 3. dissemble the unit before using for the first time. Wash all parts except the motor base in hot soapy water. Figure 3 Rinse and dry immediately. Important: Always ensure your juicer is unplugged from the power outlet when not in use, during assembling or whilst removing parts. 1. S et the motor base on a dry, level surface. For convenience when juicing, have the control switch facing you – figure 1. Figure 1 4. P lace the juicer cover onto the juice collector/bowl, with the feed chute positioned over the stainless steel blade and filtering basket and push into position – figure 4. Figure 4 2. P lace the juice collector/bowl onto the top of the motor base – figure 2. - Page 10 Assembling your Café Series ™ Juice Extractor (continued) 5. S ecure the juicer cover by raising the twin-locking 7. T ake the food pusher, align the groove on the food handles and clip the tops to the juicer cover – figure pusher with the notch on the inside of the feed chute 5a. Press firmly on the lower part of the twin-locking and slide the food pusher down into the feed chute handles to lock into place – figure 5b. – figure 7. Figure 5a Figure 5b Figure 7 6. S lightly tilt the pulp container and slide into place under the juicer cover – figure 6. Figure 6 Tip: To reduce cleaning we recommend that you line the pulp container with a plastic bag to collect the pulp.
-
Page 11: Operating Your Café Series
Operating your Café Series Juice ™ Extractor Note: The juicer should be completely assembled before Important: Do not operate for more than 17 seconds at use, if this is not the case see ‘Assembling your Café a time when juicing heavy loads. None of the recipes Series™ Juice Extractor' on page 7. in this manual are considered a heavy load. 1. E nsure the control switch on the juicer is in the ‘Off’ 6. W ith the juicer in operation, place the fruit and position and insert the power cord into a 230-240V vegetables into the feed chute. Using the food AC power outlet and turn the power ‘On’. pusher, guide the fruit and vegetables down the feed chute and onto the stainless steel blade. 2. C lean fruit and vegetables thoroughly, ready for juicing. Tip: For maximum juice extraction, guide the food pusher down the feed chute in a slow downward Note: The extra large feed chute allows whole fruit motion. and vegetables to be juiced, however some fruit Important: The juicer is protected by an overload and vegetables may require other preparation before juicing, such as peeling and removing stones, switch which will activate in the event of heavy loads. see ‘Juicing speed guide’ on page 10 for our Should this occur unplug the juicer allow it to cool recommendations. -
Page 12: Juicing Speed Guide
Juicing speed guide Fruit / Vegetable Type Recommended Speed Apples High Apricots – remove stone Banana – remove skin Beetroot High Blueberries Capsicum - remove seeds Carrots High Celery High Cherries – remove pips Cucumber Fennel High Ginger High Grapes - remove stems High Grapefruit – remove skin Honeydew melon – remove skin Kiwi fruit – remove skin Lemon – remove skin Lime – remove skin Mandarins – remove skin Mangoes – remove skin & seed Mint High Oranges – remove skin Papaya High / Low Parsley High... -
Page 13: Disassembling Your Café Series
Disassembling your Café Series Juice ™ Extractor 1. T urn the power ‘Off’ at the power outlet and unplug 5. P lace fingers under the rim of the stainless steel the cord. blade and filtering basket and lift out – figure 11. 2. S lightly tilt the pulp container and slide away from Important: Juicing blades are very sharp, handle the juicer – figure 8. juicing filter basket with care when removing, replacing and cleaning. Figure 8 Figure 11 3. P lace fingers under the bottom of the twin-locking handles and lift to release – figure 9. 6. L ift the juice collector/bowl from the Figure 9 motor base – figure 12. Figure 12 4. Lift the juicer cover from the juice collector/bowl – figure 10. -
Page 14: Care And Cleaning
Care and cleaning Note: Ensure that the juicer is unplugged from the Using the nylon cleaning brush supplied with the juicer, power outlet prior to cleaning. hold the stainless steel blade and filtering basket under running water and brush the outside of the basket first. Quick clean Then with the basket still under running water, brush For easy cleaning, ensure that immediately after use the inside of the basket in an anti-clockwise direction, that the juicer is disassembled and that each removable removing the pulp. To ensure the stainless steel blade part is rinsed under running water, removing any wet and filtering basket is free of all remaining pulp, hold pulp and then allow to air dry. it up to light and ensure that the holes in the filtering basket are not blocked. Thorough cleaning Important: Juicing blades are very sharp, handle juicing Disassemble the juicer and place all removable parts filter basket with care when removing, replacing and aside, see ‘Disassembling your Café Series™ juice cleaning. Extractor’ on page 11. Important: Never immerse the motor base in water or Rinse the juice collector/bowl, juicer cover, pulp any other liquid. container and food pusher under running water and Important: Do not use chemical, steel wool or abrasive wash with warm, soapy water. Rinse well. cleaners to clean the outside of the juicer, as these will scratch the stainless steel and die-cast metal surface. To clean the motor base Using a damp soft sponge with a mild detergent, wipe the motor base clean. -
Page 15: Trouble Shooting Guide
Trouble Shooting Guide PROBLEm POSSIBLE CAUSE WHAT TO DO Juicer will not start when speed The juicer hasn’t been assembled See ‘Assembling your Café Series™ is selected. correctly. Juice Extractor’ on page 7. The juicer motor appears to struggle Pulp container is full. Empty the pulp container. during operation. Pulp is caught in the juicer cover. Stop juicing, remove the juicer cover and clean out pulp. See ‘Disassembling your Café Series™ Juice Extractor’ and ‘Care and Cleaning’ sections. Try a slower juicing action – guide the food pusher down the feed chute in a slow downward motion. Stainless steel blade and filtering After extended juicing of fibrous fruit basket is blocked with excess pulp. and vegetables the mesh on the filtering basket may need to be cleaned. Stop juicing, disassemble the juice extractor and clean the filtering basket. S ee ‘Disassembling your Café Series™ Juice Extractor’ and ‘Care and Cleaning’ sections. The selected juicing speed See ‘Juicing speed guide’ on page 10. is incorrect. -
Page 16: Recipes
Recipes DAY STARTERS Orange madness ½ Pawpaw large, peeled, seeds removed For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve ¼ Rockmelon , peeled, seeds removed immediately. ¼ Lime , peeled All recipes make approximately 2 small serves. ½ Grapes cup Zinger morning Calmer ¼ Pineapple small, peeled Mango 1, seed removed Green apples Oranges 2, peeled Celery 1 stalk Blood plums 4, seeds removed Mint 1 sprig Pick Up The Pace ¼... -
Page 17: Juice Remedies
Recipes (continued) JUICE REmEDIES Body Cleanser Carrot For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve Celery immediately. Pear All recipes make approximately 2 small serves. Beetroot 1 small Immune Booster Power Purifier Green apples Carrot Celery 3 stalks Beetroot 1 small Ginger 2cm piece ½ Red capsicum , seeds removed See the light Spinach 2 large leaves Green apples Classic Karma Carrot Carrot Ginger 2cm piece Green apples... -
Page 18: Juice Jolts
Recipes (continued) JUICE JOLTS Watery Wonderland Watermelon 1 wedge, 300g piece For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve ¼ Pineapple small, peeled immediately. Mint 1 sprig All recipes make approximately 2 small serves. Juice Rush Tropical memories ¼ Rockmelon , peeled ¼ Pineapple small, peeled Carrot Strawberries 2 large Watermelon 1 wedge, 300g piece Kiwi Fruit 1, peeled Lime half, peeled Watermelon 1 wedge, 200g piece Tropical Treasure Cafe Cruiser ½... -
Page 19: A Good Start For Kids
Recipes (continued) A GOOD START FOR KIDS Juicy Juice Raspberries 125g, frozen, thawed For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve Pear 1 small immediately. Water ¹/ ³ cup All recipes make approximately 2 small serves. Drink Your Veges! Goody Gumdrops Carrot Orange 1, peeled Green apple ¼ Pineapple small, peeled Celery 1 stalk Strawberries 2 large Kid Cold Crusher Kiwi Fruit 1, peeled Orange... - Page 20 Notes...
- Page 21 Notes...
-
Page 22: Juice Extractor
Sunbeam at the address listed below. cannot be excluded under the Australian against faulty materials or manufacture. On receipt of your claim, Sunbeam will Consumer Law and under the New Zealand This guarantee is just another expression advise you on how to obtain a replacement Consumer Guarantees Act. - Page 23 12 months of purchase (3 months commercial use) due to faulty materials or manufacture, we will replace it for you free of charge. Should you experience any difficulties with In Australia you are entitled to a your appliance, please phone our customer replacement or refund for a major failure and service line for advice on 1300 881 861 in for compensation for any other reasonably Australia, or 0800 786 232 in New Zealand. foreseeable loss or damage. You are also Alternatively, you can send a written claim entitled to have the goods repaired or to Sunbeam at the address listed below. replaced if the goods fail to be of acceptable On receipt of your claim, Sunbeam will quality and the failure does not amount to seek to resolve your difficulties or, if the a major failure. appliance is defective, advise you on how Should your appliance require repair or to obtain a replacement or refund. service after the guarantee period, contact Your Sunbeam 12 Month Replacement your nearest Sunbeam service centre. Guarantee naturally does not cover misuse For a complete list of Sunbeam’s authorised...
- Page 24 Sunbeam Corporation Limited 2009. ABN 45 000 006 771 Units 5 & 6, 13 Lord Street Botany NSW 2019 Australia Unit 3, Building D 26 Vestey Drive Mt Wellington Auckland New Zealand Sunbeam Corporation is a division of GUD Holdings Ltd. 8/11...
