IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

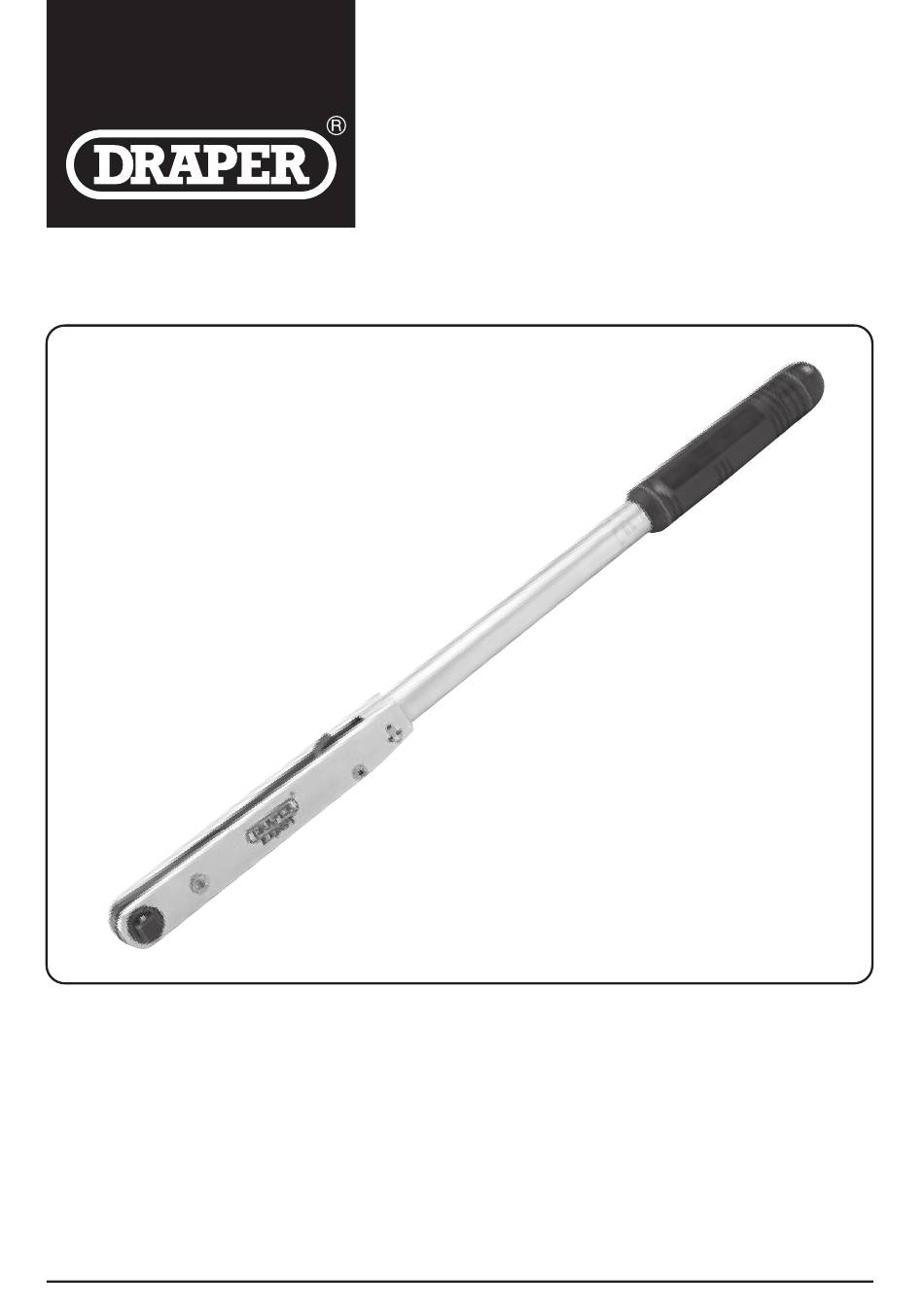

MICROMETER ADJUSTMENT
TORQUE WRENCHES
72623 - PTW
72714 - PTW
83317 - PTW

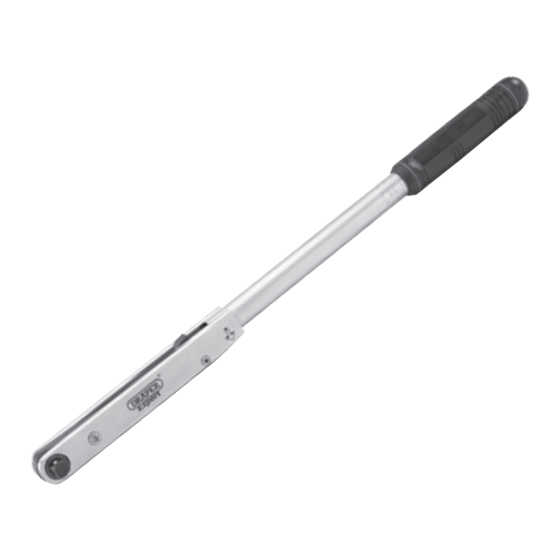

*83317 shown
Advertisement
Table of Contents
Related Manuals for Draper 72623-PTW
Summary of Contents for Draper 72623-PTW
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE........................ 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
Whilst every effort has been made to ensure that the accuracy of information given in this manual is correct at time of going to print, the Draper Tools policy of continuous improvement determines the right to change specification without notice. -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION WARNING! Never use the torque wrench to undo bolts, nuts or fasteners, as this will damage the calibrated setting Always adjust the torque wrench upwards through the scale to reach the required torque. Calibration will be affected if the torque required is set by coming down the scale. IMPORTANT: Only pull the torque wrench in the direction of the arrow shown on the top face of the torque wrench. -
Page 7: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION *83317 shown Push-through drive square. Handle. Torque setting handle. Direction arrow. Torque scales. Note: After use ALWAYS reset torque wrench to its lowest setting for storage. Storing at a level other than the lowest setting will affect torque wrench calibration. -
Page 8: Unpacking & Checking
Carefully remove the Torque wrench from the packaging and examine it for any sign of damage that may have happened during shipping. If it is damaged; please contact the Draper Helpline (the telephone number appears on the title page). WARNING! Some of the packaging materials used may be harmful to children. Do not leave any of these materials in the reach of children. -
Page 9: Operation Instructions
OPERATING INSTRUCTIONS 8.1 OPERATION INSTRUCTIONS - FIG. 1 IMPORTANT: Always use the correct size socket. Apply a steady pull to the handle of the torque wrench. When the required torque is reached, this will be indicated by the following: Audible click: NOTE: The click will be quieter at lower torque settings. - Page 10 OPERATING INSTRUCTIONS First select required torque scale, then pull-out torque setting handle , lock into the spindle at 90 degrees and turn until handle edge is at the required torque value. FIG.1 *83317 shown NOTE: To obtain correct torque setting ONLY move the handle UPWARDS through the range.
- Page 11 OPERATING INSTRUCTIONS Push the drive square through the head - checking the direction arrow of the torque wrench is correct for a left or right handed thread. FIG.4 FIG.4.1 *72623 shown NOTE: Items 72623 and 72714 have a double sided, dual drive adaptor. To change drive size, simply push out the drive square and re-insert to get the correct rotation for torque application.
- Page 12 OPERATING INSTRUCTIONS When the correct torque level has been reached stop pulling! If you continue to apply torque after you can hear, feel and see the torque wrench “CLICK” you will damage your fixings. DO NOT apply torque again to “test’ if the torque has been applied as this may damage the fixing.
-
Page 13: Conversion Chart
CONVERSION CHART... - Page 14 NOTES...
- Page 15 NOTES...
- Page 16 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST PJDH0217...
