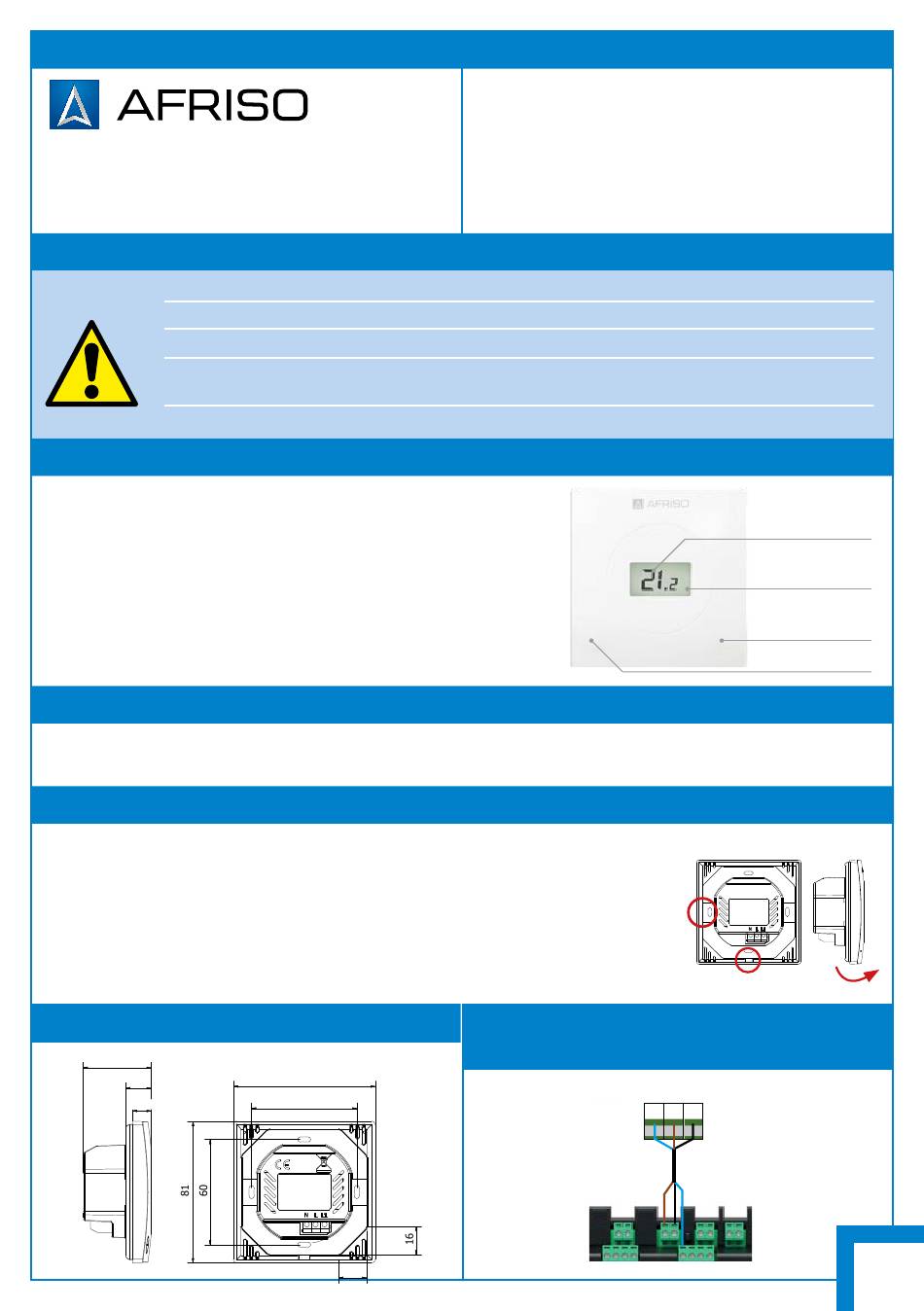

AFRISO FloorControl RT01 Installation And Operation Manual

INSTALLATION AND OPERATION MANUAL
AFRISO-EURO-INDEX GmbH
Lindenstr. 20
D-74363 Güglingen
www.afriso.com
WARNUNG!
Work on electrical circuits should only be carried out by an authorised electrician.
The mains voltage (AC 230 V AC) can cause serious injury or death.
Do not allow the device to come into contact with water.
Before dismantling the housing, disconnect the wiring box or other controlled device
from the power supply.
Do not make any modifications to the device.
Description of the device
The FloorControl RT01 thermostat is a compact device with
a display and built-in temperature sensor that enables precise
temperature setting in a single room or multiple rooms.
The thermostat is supplied with 230 V AC from the wiring box.
The FloorControl RT01 room thermostat is connected to
the FloorControl WB01 D-8-230 underfloor heating box to
control the floor heating system.
Compatibility with wiring boxes
The FloorControl RT01 D-230 thermostat (Art. No. 86 018) can be connected to the WB01 D-8-230
box (power supply 230 V AC - Art. No. 86 013).
Wall mounting
The thermostat's mounting location must provide protection from the we-
ather. The RT01 thermostat is designed for wall mounting using a standard
Ø60 mm flush-mounted electrical junction box. The thermostat is fixed to
the box through the mounting holes (A) in the back of the housing. The
main part of the thermostat should be disconnected from the rear part by
slightly lifting the latch (B) at the bottom. Attach the rear part to the moun-
ting box, then insert the main part and snap it into the rear part.
Dimensions
4 3
39
14,5
10,6
Service AFRISO
Tel. 07135 102 0
service@afriso.de
2 1
81
60
16
FloorControl RT01 D-230
room thermostat
Electrical connections with
FloorControl WB01 D-8 box
D
C
953.011.0094 953.000.0094
Current room
temperature
A
B
N L L1
Display
+
