König CSACW100 - Full HD Action Camera Manual

Description

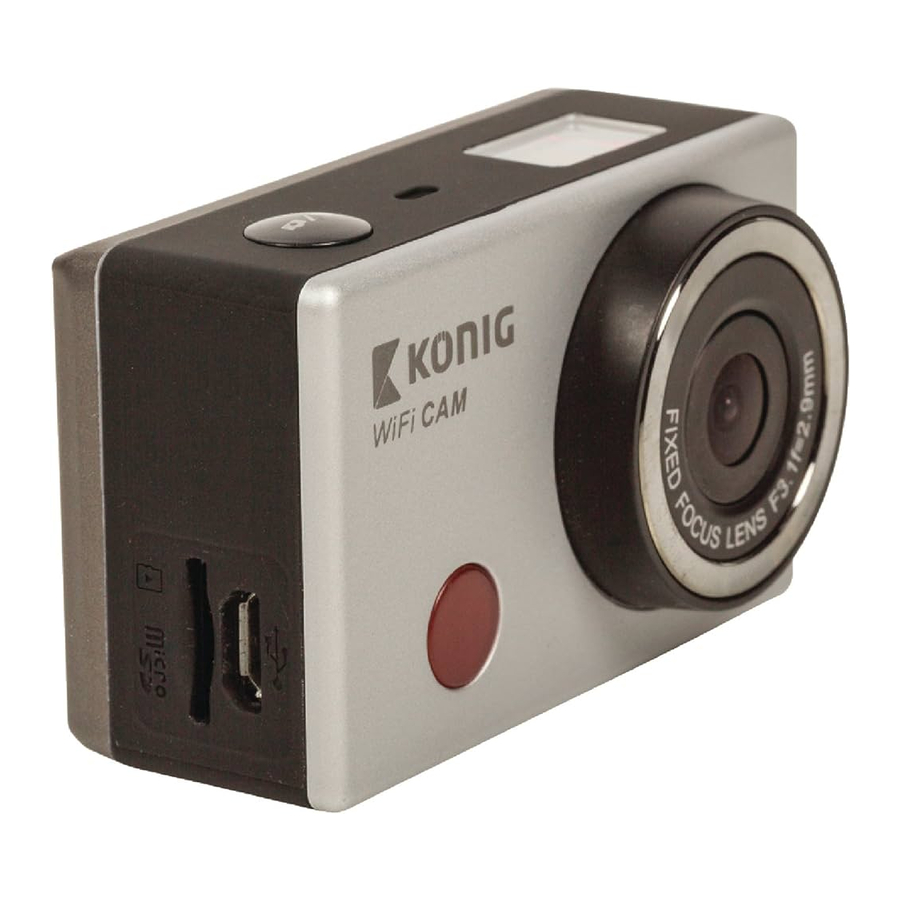

The camera is a device to take photos and record videos.
Description

  1. On/off button
    Mode button
  • Press the button for 3 seconds to switch on or off the device.
Note: The device switches off automatically when the preset idle time has been reached or the battery is low.
  • Press the button to select photo mode, video mode or replay mode.
  1. Shutter
    OK button
  • Photo mode: Press the button to take a photo.
  • Video mode: Press the button to start and stop recording video.
  • Playback mode: Press the button to play back photos and videos.
  • Menu mode: Press the button to confirm the selection.
  1. Wi-Fi button
    Wi-Fi indicator
 Note:
  • Press the Wi-Fi button to enable Wi-Fi. The Wi-Fi indicator starts to flash. The Wi-Fi indicator lights continuously when the Wi-Fi connection is established.
  • Press the Wi-Fi button again to disable Wi-Fi. The Wi-Fi indicator goes off.
Note: Wi-Fi is disabled by default. Wi-Fi will be automatically disabled if no Wi-Fi connection is established within 30 seconds.
  1. IR receiver
  • The receiver is used to take photos with the remote control.
  1. Pairing indicator
  • Download and install the "SYMAGIX" app from Apple App Store or Google Play Store on your mobile device.
  • Press the Wi-Fi button. The pairing indicator comes on.
  • Select the Wi-Fi ID of the device: "CSACW100".
  • Enter the password: "1234567890". The device is ready for use when the Wi-Fi connection is established and you have opened the "SYMAGIX" app.
  1. Display
  1. Lens
  • The lens is used to record video.
  1. Microphone
  • The microphone is used to record audio.
  1. Battery compartment
  • Refer to the illustration to install the battery.
    Installing the battery
  1. Lock/unlock switch (battery compartment)
  1. Memory card slot (microSD / TransFlash)
  • Insert a memory card into the memory card slot (storage).
  1. USB port (Micro USB)
  • Use the USB port and the USB cable to connect the device to the computer (charging / data transfer).
  1. USB cable
 Note: For charging, make sure that the device is switched off. For data transfer, make sure that the device is switched on.
  1. HDMI input
  • Connect a TV to the HDMI input using an HDMI cable.
  1. Microphone jack
  • Connect a microphone to the microphone jack.

Use

Photo mode

  1. Insert a memory card into the memory card slot.
  2. Switch on the device.
  3. Set the photo mode.
  4. Take the photo. The photo file is saved to the memory card.

Video mode

  1. Insert a memory card into the memory card slot.
  2. Switch on the device.
  3. Set the video mode.
  4. Record the video. The video file is saved to the memory card.
    Maximum time: 29 minutes per sequence.

Playback mode

  1. Insert a memory card into the memory card slot.
  2. Switch on the device.
  3. Set the playback mode.
  4. Play back photos and videos.

Technical data

External memory microSD / TransFlash (≤ 32 GB)
Photo file format JPEG
Photo file size 1 MB / 3 MB / 5 MB
Photo pixels 3264 x 2448
Video file format AVI
Video file length 1 minute / 3 minutes / 5 minutes
Video resolution and frame rate 1280 x 720 (60 fps) / 1920 x 1080 (30 fps)
Aspect ratio 4:3
Digital zoom 1x / 2x / 3x / 4x
USB version USB 2.0
Battery Rechargeable Lithium battery (3.7 V)
Operating temperature 0°C - 40°C
Relative humidity 20% - 80%

Safety


RISK OF ELECTRIC SHOCK
DO NOT OPEN

  • To reduce risk of electric shock, this product should only be opened by an authorized technician when service is required.
  • Disconnect the product from the mains and other equipment if a problem should occur.
  • Read the manual carefully before use. Keep the manual for future reference.
  • Only use the device for its intended purposes. Do not use the device for other purposes than described in the manual.
  • Do not use the device if any part is damaged or defective. If the device is damaged or defective, replace the device immediately.
  • Do not expose the device to water or moisture.

Cleaning and maintenance

  • Do not use cleaning solvents or abrasives.
  • Do not clean the inside of the device.
  • Do not attempt to repair the device. If the device does not operate correctly, replace it with a new device.
  • Clean the outside of the device using a soft, damp cloth.
