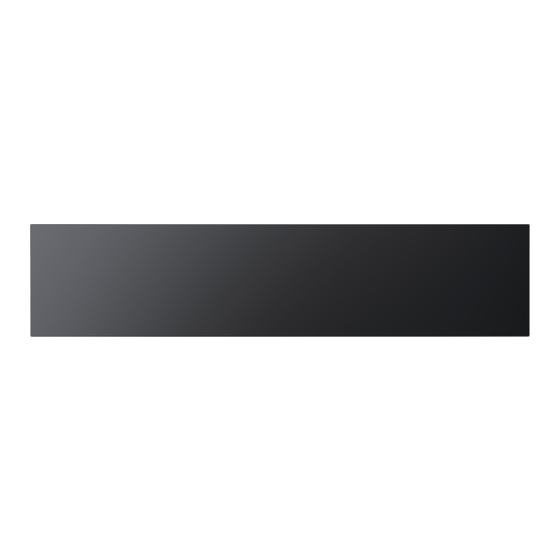

- Page 1 Operating instructions WarmingDrawer V4000 Warming drawer...
- Page 2 WarmingDrawer V4000 14 DW4T-34026 60-144 WarmingDrawer V4000 14 DW4T-34027 60-144 WarmingDrawer V4000 22 DW4T-34029 60-220 WarmingDrawer V4000 28 DW4T-34030 60-283 WarmingDrawer V4000 31 DW4T-34031 60-312 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2021...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Index 24 Symbols used............ 4 Service & Support 27 General safety precautions........ 4 Notes 25 Appliance-specific safety precautions .... 5 Instructions for use.......... 5 General appliance description 8 Structure .............. 8 Operating and display elements...... 9 Opening and closing the drawer ...... 10 Standby mode ............ 10 Operating the appliance........ 11... -
Page 4: Safety Precautions
Safety precautions Symbols used provided they are supervised or have been instructed on Unauthorized repairs could result in unforeseen dangers for the user, for the safe use of the appliance which the manufacturer cannot ac- and have understood the haz- cept liability. -
Page 5: Appliance-Specific Safety Precautions
1 Safety precautions Appliance-specific safety ▪ Under no circumstances use precautions a steam cleaner to clean the appliance. ▪ WARNING: If the surface is cracked, switch the appliance ▪ WARNING: The appliance off and disconnect it from the and its accessible parts get mains to avoid possible elec- hot during use. - Page 6 1 Safety precautions ▪ Refer to the identification plate for in- ▪ The appliance corresponds to recog- formation on the required mains nized technology standards and the rel- voltage, current type and fuse protec- evant safety regulations. Proper use of tion.
- Page 7 1 Safety precautions ▪ Do not leave the appliance unattended when drying or desiccating herbs, bread, mushrooms, etc. If the foodstuff dries out too much, it can pose a fire hazard. ▪ If you notice smoke possibly coming from the appliance itself or from inside the warming drawer, keep the drawer closed and disconnect it from the power supply.
-
Page 8: General Appliance Description
General appliance description Structure The warming drawer can be used for warming dishes and keeping food warm. Operating panel ▸ Touch to switch the warming drawer on. Drawer front ▸ Gently push the drawer front to both open and close the drawer (push/pull system). Pilot lamp ▸... -
Page 9: Operating And Display Elements
2 General appliance description Operating and display elements Operation Display 1 On/Off Temperature 2 Decrease temperature or duration 10 Temperature – the current setting is displayed 3 Increase temperature or duration 11 Duration 4 Operating mode for heating serving 12 Duration – the current setting is and tableware displayed 5 Operating mode for heating cups and... -
Page 10: Opening And Closing The Drawer
2 General appliance description Opening and closing the drawer Opening Closing ▸ Push in the middle of the drawer front. ▸ Close in the middle of the drawer front. – The drawer opens. – The drawer engages and closes. Never force the drawer open as this could damage the closing mechanism (push/pull system). -
Page 11: Operating The Appliance
2 General appliance description Operating the appliance The operating panel must be kept clean and dry. Wash and dry your hands. The buttons will otherwise not react or can come on accidentally. ▸ Touch the button to switch the drawer on. ▸... -
Page 12: Sabbath Mode
2 General appliance description Setting a delayed start ▸ For the duration, touch the but- ton for 5 seconds. – flashes. ▸ Using the button, set the desired delayed start. – The delayed start selected flashes in the display. ▸ Close the drawer. –... -
Page 13: Loading Examples
2 General appliance description Loading examples The maximum load depends on the dimensions and weight of your dishes. Appliance Plates Basic place settings Full place settings and height serving dishes 40 items A, B, C 20 of each A, B, C 12 of each item item 1 of each item D, E... -
Page 14: Wire Shelf
2 General appliance description Wire shelf For models DW4T-34030 and DW4T-34031, the loading surface can be increased by using the wire shelf sup- plied. It can also be useful for keeping food warm in different items of tableware. The wire shelf can be inserted on the left- or right-hand side of the warming drawer. -
Page 15: Operating Modes
3 Operating modes Operating modes Heating serving and tableware Spread dishes across entire warming plate. The heating duration depends on the mater- ial and thickness of the dishes as well as their quantity, height and arrangement. Stacked plates take longer to heat up than individual items. Do not place any large platters on their end in front of the ventilation slits. -
Page 16: Heating Cups
3 Operating modes Heating cups The heating duration depends on the material and thickness of the dishes as well as their quantity, height and arrangement. Tall stacks of cups and glasses take longer to heat up than individual cups and glasses. Do not place any dishes in front of the ventilation slits. -
Page 17: Making Yoghurt
3 Operating modes Risk of burns! The surface of the warming plate is hot. Items around the outside of the drawer get hotter than those in the middle. Always use protective gloves or oven cloths to remove the dishes. Suitable foods Accompaniments, poultry, vegetables, fish, meat, sauces and soups Making yoghurt ▸... -
Page 18: Uses
4 Uses Uses Possible uses The table lists various uses for the warming drawer. ▸ Set the required level. ▸ Preheat the dishes according to the table below. Setting level Approximate duration Food/dishes Note Proofing yeast dough Put in suitable cook- ware, cover with damp –... - Page 19 4 Uses Setting level Approximate duration Food/dishes Note Heating up food or Preheat tableware, keeping it warm, cover food – max. e.g. omelettes, crêpes, pancakes, tacos, tortil- las, fajitas Keeping food warm, Preheat tableware, cover food – max. e.g. roasts, sauces Keeping beverages Preheat tableware as warm...
-
Page 20: Low Temperature Cooking
4 Uses Low temperature cooking setting is suitable for low temperature cooking and cooking to completion of seared, small to medium-sized, high-quality cuts of meat (beef, lamb, pork, veal) no thicker than 6 cm. We recommend cooking larger pieces of meat in an oven or combi-steam cooker. -
Page 21: Care And Maintenance
5 Care and maintenance Care and maintenance Procedure Only clean the drawer in the standby state in left-on mode. Do not use high pressure or steam cleaners. Do not use abrasive, caustic cleaning agents or stainless steel cleaner. Do not use scouring pads, steel wool, etc. -
Page 22: Trouble-Shooting
6 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If another fault is displayed or the fault cannot be remedied, please call Customer Ser- vices. What to do if … Problem Possible cause Solution Dishes and/or food remain ▪... -
Page 23: Accessories And Spare Parts
7 Accessories and spare parts Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts. Wire shelf for models DW4T-34030 and DW4T-34031 Technical data External dimensions ▸ See installation instructions Electrical connection ▸... - Page 24 Index Making yoghurt..........17 Model designation ..........2 Accessories and spare parts ......23 Appliance disposal .......... 23 Appliance installation ......... 5 Notes ..............25 Care..............21 Operating elements ..........9 Cleaning............. 21 Cleaning the exterior ........21 Construction............8 Possible uses ...........
-
Page 25: Notes
Notes... -
Page 27: Service & Support
