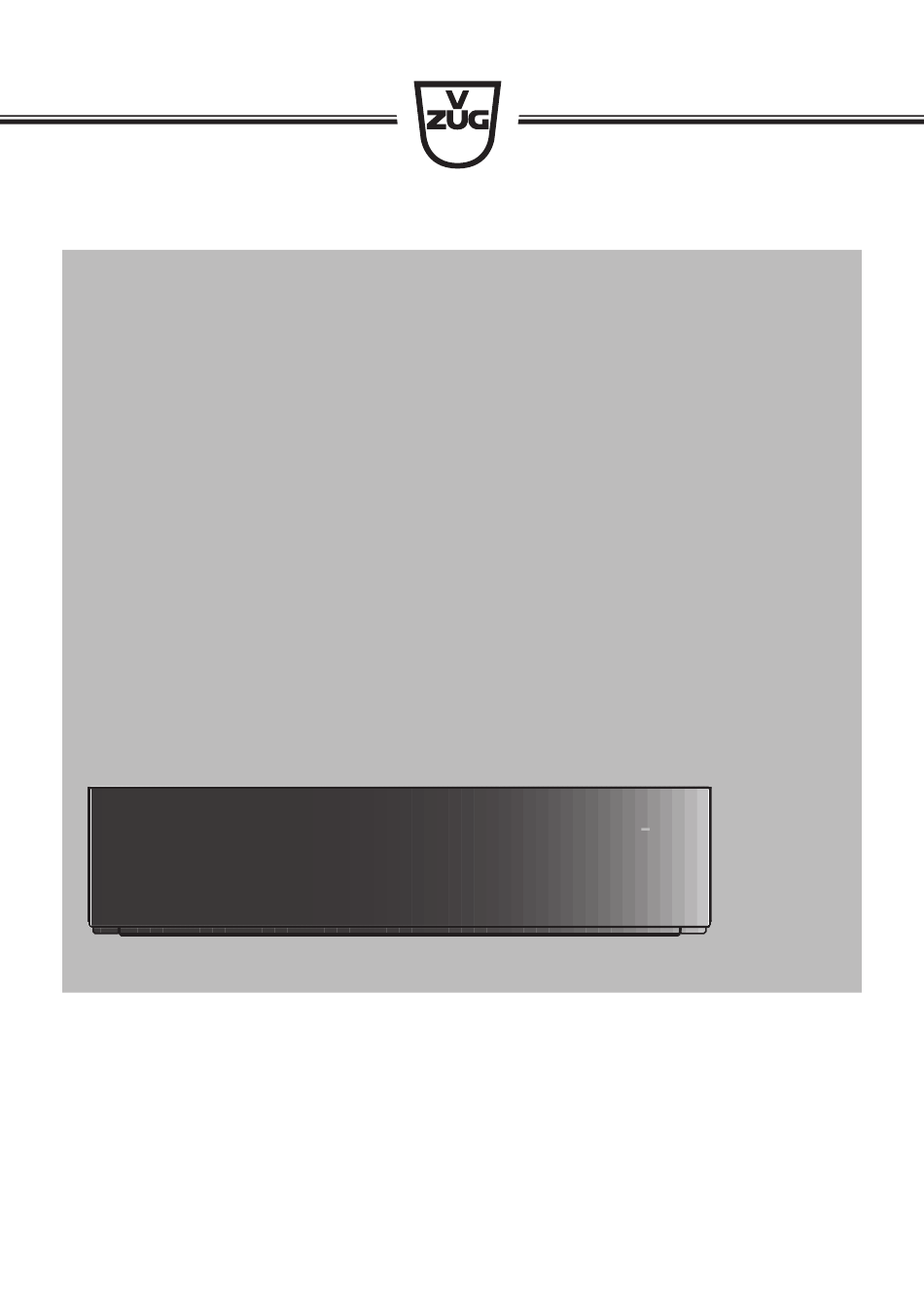

- Page 1 Operating instructions WS 60 144 | WS 60 162 | WS 60 220 | WS 60 283 | WS 60 312 Warming drawer...
- Page 2 The product family (model number) corresponds to the first alphanumerics on the identi- fication plate. These operating instructions apply to: Type Model no. WS 60 144, WS 60 144c 34017 WS 60 162, WS 60 162c 34018 WS 60 220, WS 60 220c...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Index 22 Symbols used............ 4 Service & Support 23 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 General appliance description 8 Structure .............. 8 Operating and display elements...... 8 Opening and closing the drawer ...... 9 Standby mode ............ 10 Operating the appliance........ 10 Delayed start ............ 11... -
Page 4: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions ▪ Children under 8 years of age Instructions for use must be kept away from the Appliance installation appliance unless they are constantly supervised. ▪ This appliance can be used ▪ The appliance must be installed by by children aged 8 and above qualified personnel only. - Page 6 1 Safety precautions ▪ Do not store objects in the warming Correct use drawer that could pose a danger if it ▪ The appliance can be used in the home were accidentally switched on. Do not for preparing food. Under no circum- store food or any temperature-sensitive stances flambé...
- Page 7 1 Safety precautions ▪ When open, the drawer poses a danger of tripping or injury! Do not sit or rest on the drawer or use it as a storage sur- face. Caution: Risk to life! ▪ Packaging materials, e.g. plastic film and polystyrene, can be dangerous for children.
-
Page 8: General Appliance Description
General appliance description Structure The warming drawer can be used for warming dishes and keeping food warm. 1 Operating panel ▸ Press to switch the warming drawer on. 2 Drawer front ▸ Gently push the drawer front to both open and close the drawer (push/pull system). -
Page 9: Opening And Closing The Drawer
2 General appliance description Operation Display 1 On/Off Temperature 2 Decrease temperature or duration 10 Temperature – the current setting is displayed 3 Increase temperature or duration 11 Duration 4 Operating mode for heating serving 12 Duration – the current setting is and tableware displayed 5 Operating mode for heating cups and... -
Page 10: Standby Mode
2 General appliance description Standby mode The standby mode refers to the state of the drawer when the function is temporarily de- activated, but can be reactivated at any time and without any preparation or lengthy wait- ing times. Open the drawer and it is ready for operation. The button illuminates dimly to indicate the appliance is ready for operation. -
Page 11: Delayed Start
2 General appliance description Delayed start The delayed start is activated when both an operating time and a delayed start duration have been set for the operating mode selected. The appliance switches on when the delayed start is up and switches off again when the operating time finishes. -
Page 12: Loading Examples
2 General appliance description Loading examples The maximum load depends on the dimensions and weight of your dishes. Appliance Plates Basic place settings Full place settings and height serving dishes 40 items A, B, C 20 of each A, B, C 12 of each item item 1 of each item D, E... -
Page 13: Wire Shelf
3 Operating modes Wire shelf For models 283 and 312, the loading surface can be increased by using the wire shelf supplied. It can also be useful for keeping food warm in different items of tableware. The wire shelf can be inser- ted on the left- or right-hand side of the warming drawer. -
Page 14: Heating Cups
3 Operating modes It takes approximately 45 minutes to heat place settings for 6 persons. Unloading dishes As heated dishes cools down quickly, take them out of the warming drawer just before you need them. ▸ Open the drawer when the operating mode finishes. ▸... -
Page 15: Making Yoghurt
3 Operating modes ▸ Place the food in the preheated dishes. To avoid spillage, do not overfill plates, dishes, cups, etc. Cover food with a heat-resistant lid or aluminium foil. The surface of food that is not covered will dry out. We recommend that food is not kept warm for longer than one hour. -
Page 16: Uses
4 Uses Starting favourites ▸ Touch – The set values illuminate. ▸ Close the warming drawer. – The pilot lamp illuminates. – The appliance heats up. – Open the drawer when the operating mode finishes. – Touch to switch the appliance off. Risk of burns! The surface of the warming plate is hot. - Page 17 4 Uses Setting level Approximate Food/dishes Note duration Preheating drinking Only use suitable tableware – vessels, e.g. espresso cups Melting chocolate Use suitable cookware, leave uncovered Dissolving gelatine Use suitable cookware, leave uncovered Keeping delicate Preheat tableware, cover – max. foods warm, food e.g.
-
Page 18: Low Temperature Cooking
4 Uses Setting level Approximate Food/dishes Note duration Preheating serving Spread tableware out flat for – max. dishes shorter heating times e.g. soup plates, plates, bowls, plat- ters, sauce boats Keeping beverages Preheat tableware, cover – max. beverages as required Drying, desiccating Prepare and chop up the Extend as re-... -
Page 19: Care And Maintenance
5 Care and maintenance Dish Searing on Completion the hob in the appliance Small pieces of meat Steak medallions 1–2 mins. per side – Medium-sized pieces of meat Loin of lamb (ca. 150– 2–3 mins. per side 300g) Fillet of pork (400–600g) 4–6 mins. -
Page 20: Cleaning The Interior
6 Trouble-shooting Cleaning the interior ▸ Remove any soiling from the warming drawer while still hand warm. ▸ Clean the warming plate, ventilation grille and operating panel with a soft cloth dampened with water and a little washing-up liquid and dry with a soft cloth. Trouble-shooting This section lists faults that can be solved simply by following the instructions given. -
Page 21: Accessories And Spare Parts
7 Accessories and spare parts Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts. Wire shelf for models 283 / 312 mm Technical data External dimensions ▸... - Page 22 Index Accessories and spare parts ......21 Maintenance ............. 19 Appliance description ........8 Making yoghurt..........15 Appliance disposal .......... 21 Model number ............. 2 Appliance installation ......... 5 Operating elements ..........8 Care..............19 Operating modes ..........13 Cleaning............. 19 Cleaning the exterior ........
- Page 23 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
- Page 24 Quick instructions Open appliance Switch appliance on Set temperature Set duration Switch appliance off Close appliance 1044764-R02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
