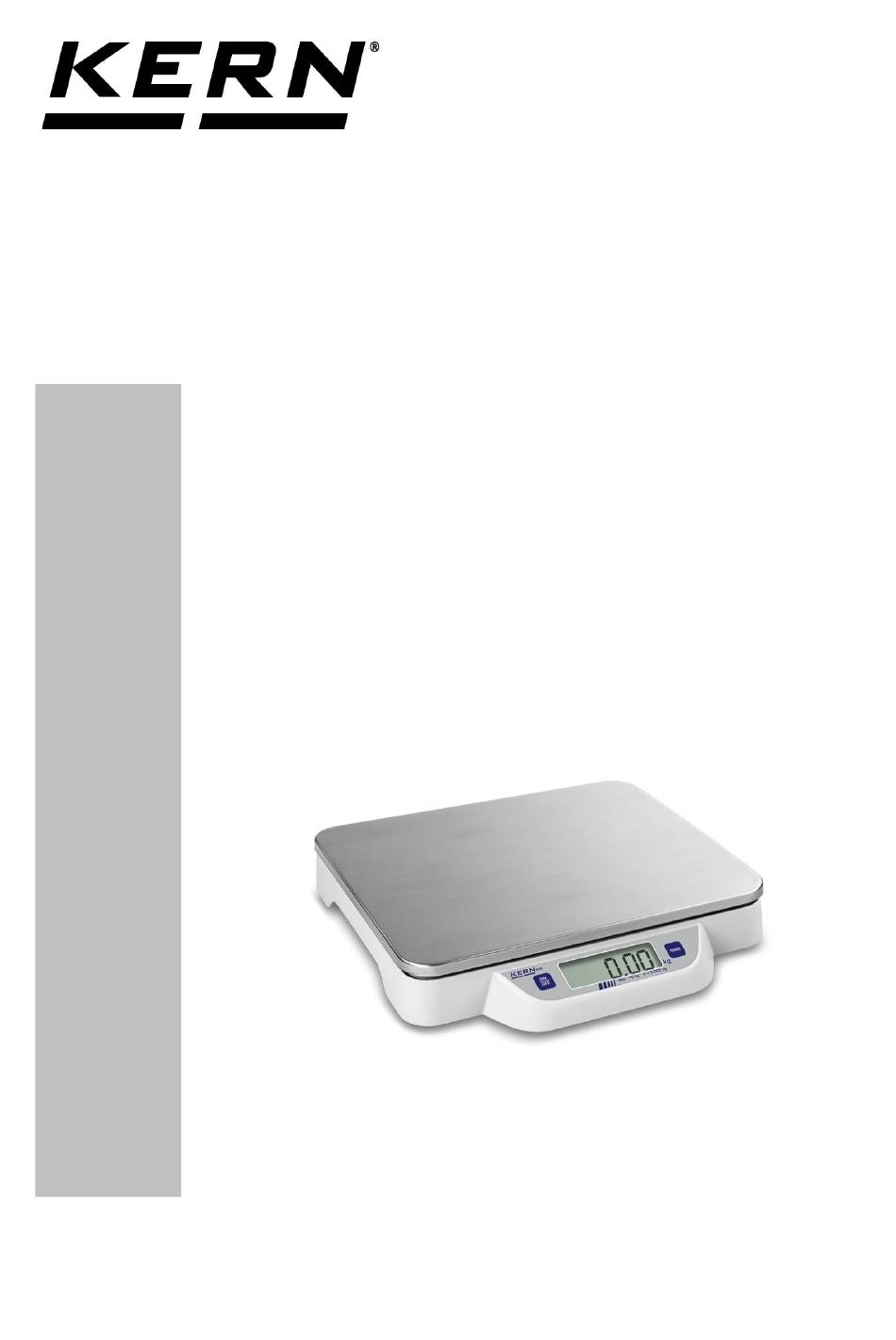

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instruction Platform scale KERN ECB_ECE-N Version 2.4 2017-12 (ECB-N) ECB_ECE-N-BA-e-1724...
-
Page 2: Table Of Contents
KERN ECB_ECE-N Version 2.4 2017-12 Operating instruction Platform scale Table of contents: Technical data ....................3 Fundamental information (general) .............. 5 Intended use ..........................5 Inappropriate use ........................5 Guarantee ..........................5 Monitoring the test substances ....................6 Fundamental safety information..............6 Observe the information in the operating instructions ............ -
Page 3: Technical Data
1 Technical data Models ECB-N: KERN ECB 10K-3N ECB 20K-2N ECB 50K-2N Readout (d) 10 g 20 g Weighing range (max) 10 kg 20 kg 50 kg Taring range (subtractive) 10 kg 20 kg 50 kg Reproducibility 10 g 20 g Linearity ±... - Page 4 Models ECE-N: KERN ECE 10K-3N ECE 20K-2N ECE 50K-2N Readout (d) 10 g 20 g Weighing range (max) 10 kg 20 kg 50 kg Taring range (subtractive) 10 kg 20 kg 50 kg Reproducibility 10 g 20 g Linearity ± 20 g ±...
-
Page 5: Fundamental Information (General)
The balance may only be used in compliance with the described guidelines. Varying areas of application/planned use must be approved by KERN in writing. 2.3 Guarantee The guarantee is not valid following... -
Page 6: Monitoring The Test Substances
For this purpose, the answerable user must define a suitable interval as well as the nature and scope of this check. Information is available on KERN’s home page (www.kern- sohn.com) with regard to the monitoring of balance test substances and the test... -
Page 7: Unpacking, Installation And Commissioning
5 Unpacking, installation and commissioning 5.1 Place of installation, place of use The balance is constructed in such a way that reliable weighing results can be achieved under normal application conditions. By selecting the correct location for your balance, you will be able to work quickly and precisely. -
Page 8: Package Volume
Electric power supply is by means of the external mains supply circuit. The printed voltage level must comply with the local voltage. Only use original KERN mains supply circuits. The use of other makes is subject to approval by Kern. - Page 9 Rechargeable Battery Installation: 1. Remove battery cover 2. Slide spacer to left or right, lever down on corner, then remove the spacer 3. Insert and connect rechargeable battery ECB_ECE-N-BA-e-1724...
-
Page 10: Initial Start-Up
5.4 Initial start-up A warm-up time of 5 minutes stabilises the measured values after switching on. The accuracy of the balance depends on the local acceleration of the fall. Please be sure to observe the information in the chapter on adjusting. 5.5 Adjustment As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated –... -
Page 11: Operation
6 Operation 6.1 Weighing • The balance is switched on by pressing the "ON/OFF" key. • The balance performs auto-diagnostics (for 2 s) and then displays "0.00". • If the weighing object is heavier than the weighing range the display indicates "E"... -
Page 12: Rear Illuminated Display (Only Models Ecb-N)
6.3 Rear illuminated display (only models ECB-N) To choose the backlight mode, please follow the below instruction for the setting: When the balance is switched off, press the TARE -key and keep it pressed Do not release the TARE -key. Press also the ON/OFF -key and keep it pressed ... -
Page 13: Dosage Und Zero-Tracking (Only Models Ecb-N)
6.4 Dosage und Zero-tracking (only models ECB-N) When the Auto-Zero-function is activated, any slight changes of the zero readout are automatically tared. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be displayed due to the “stability compensa- tion“... -
Page 14: Auto-Off Function (Only Models Ecb-N)
AUTO-OFF function (only models ECB-N) For battery operation the balance has an automatic switch off function which can be activated and deactivated in the menu. Please follow the below instruction for the setting: When the balance is switched off, press the TARE -key and keep it pressed ... -
Page 15: Reset Function
Reset function Factory setting reset. When the balance is switched off, press the TARE -key and keep it pressed Do not release the TARE -key. Press also the ON/OFF -key and keep it pressed Keep the ON/OFF -key pressed, however release the TARE -key ... -
Page 16: Maintenance, Upkeep, Disposal
Remove any spilt material to be weighed immediately. 7.2 Maintenance, upkeep The device may only be opened by trained service engineers authorised by KERN. Disconnect from the mains supply before opening. 7.3 Disposal The operating company shall dispose of the packaging and the device in compliance with the valid national or regional law of the operating location. -
Page 17: Declaration Of -Conformity
Switch the balance off if other error messages should appear and then switch on again. Contact the manufacturer if the error message does not disappear. 9 Declaration of –Conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce ECB_ECE-N-BA-e-1724...
