- Page 1 OLP-37XV2 SmartPocket™ V2 Optical Power Meters User manual BN 2335/98.11 2021.07 English...
- Page 2 ITU-T and/or ETSI. Copyright © Copyright 2021 Viavi Solutions Inc. All rights reserved. Viavi and the Viavi logo are trademarks of Viavi Solutions Inc. All other trademarks and registered trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
ONTENTS ONTENTS ....... . 5 NTRODUCTION OLP-37XV2 Optical Power Meter ..... . 5 User manual update . - Page 4 ONTENTS ......29 RDERING INFORMATION Devices ......... . . 29 Accessories .
-
Page 5: Introduction
NTRODUCTION OLP-37XV2 O PTICAL OWER ETER NTRODUCTION OLP-37XV2 Optical Power Meter The OLP-37XV2 is a specialized optical power meter designed for use cases such as system/network qualification, subscriber activation, and troubleshooting of passive optical network (PON). The instrument performs wavelength selective optical power measurements suitable for testing G-PON networks, as defined in ITU-T G.983/4 or IEEE 802.3ah and XGS-PON networks, as defined in ITU-T G.9807.1 respectively. -
Page 6: User Manual Update
SER MANUAL UPDATE User manual update If the operating instructions about features provided by your device are missing, please visit the Viavi web site to check if additional information is available. To download the latest operating instructions: Visit the Viavi web site at www.viavisolutions.com. -
Page 7: Symbols Used In This User Manual
NTRODUCTION YMBOLS USED IN THIS USER MANUAL Symbols used in this user manual Various elements are used in this user manual to draw attention to special meanings or important points in the text. Symbols and terms used in warnings The following warnings, symbols and terms are used in this document in compliance with the American National Standard ANSI Z535.6-2011: NOTICE... - Page 8 NTRODUCTION YMBOLS USED IN THIS USER MANUAL Warning format All warnings have the following format: WARNING Type and source of danger Consequences of ignoring the warning Action needed to avoid danger. The following character formats are used in this user manual: Requirement This requirement must be met first;...
-
Page 9: Safety Information
AFETY NFORMATION YMBOLS USED IN THIS USER MANUAL AFETY NFORMATION All safety information for your device can be found in the printed booklett “ Safety, Disposal and Environmental Protection“ provided with your device. Carefully read and follow all instructions given there. The booklett “... -
Page 10: Getting Started
This is particularly likely if the packaging is visibly damaged. If there is damage, do not attempt to operate the device. Doing so can cause further damage. In case of damage, please contact your local Viavi Sales Company. Addresses can be found at www.viavisolutions.com. -
Page 11: Device Overview

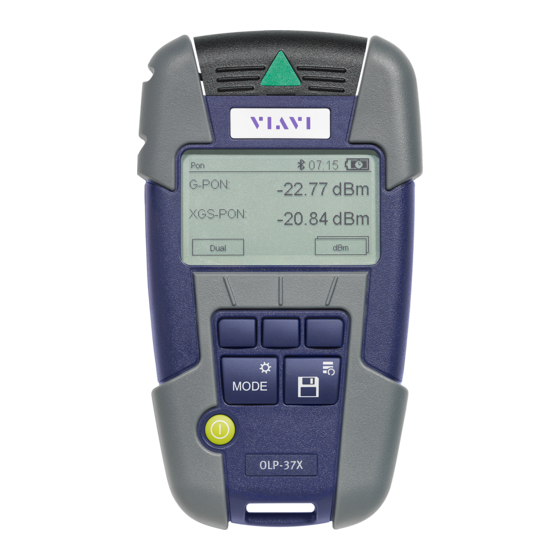

ETTING TARTED EVICE OVERVIEW Device overview Test head cover Fixed SC adapter Display Key pad Representation in the user manual: [] Context sensitive keys (here left key is selected) [MODE] Mode/Settings key Save/Results key Power key USB interface For power supply and measurement data downloads and updates. Batter y compartment (on rear of the device) OLP-37XV2... -
Page 12: Power Supply
ETTING TARTED OWER UPPLY Keys The key pad contains two types of keys: • Contex t sensitive keys: The functions of these keys depend on the selected mode or menu and is shown in the display above the key. • Function keys: The functions of these keys are always the same and shown on the key itself. - Page 13 ETTING TARTED OWER UPPLY Battery operation WARNING Dangers in handling batteries Handling batteries may be dangerous. Please note the following safety instructions. Please note the battery operation safety information in the booklett “ Safety, Disposal end Environmental Protection” provided with your device. Replacing the batteries Do not replace individual batteries.
- Page 14 Any dry or rechargeable batteries that you purchased from Viavi can be returned to one of our Service Centers for disposal. Operation from AC power To fit one of the mains plug adapters: Fig.
-
Page 15: Operation
PERATION WITCHING THE DEVICE ON PERATION Switching the device on/off The OLP-37XV2 has two battery power modes: Mode Icon Description Permanent ON The device is switched on (PERM) permanently. Automatic OFF The device switches off 20 minutes (ECON) after the last operation. This function is only available when the device is powered from batteries. -
Page 16: Display Elements
PERATION ISPLAY ELEMENTS Display elements The following elements can be found in the display. Display of one value (here G-PON) Display of both values in Dual mode 1 – Status bar Mode Further modes for future use. Bluetooth® is active Bluetooth connction allows for data transfer via the MobileTech app (for future use). -
Page 17: Settings Menu
PERATION ETTINGS MENU Settings menu The following settings can be changed in the settings menu. To open the settings menu long press [MENU]. Item Settings Description 1...12 Press [ ] to change Hour setting: 1...59 – Press once to change one Minute step at a time. -
Page 18: Selecting A Operation Mode
PERATION ELECTING A OPERATION MODE Selecting a operation mode The OLP-37XV2 provides three operation modes with following displays: • G-PON: Gigabit Passive Optical Network measurement at 1490 nm • XGS-PON: 10-Gigabit-Capable Symmetric Passive Optical Network measurement at 1577 nm • Dual: Display of G-PON and XGS-PON simultaneously To select a operation mode: Press [] to select a mode. -
Page 19: Selecting A Display Mode
PERATION ELECTING A DISPLAY MODE Selecting a display mode The OLP-37XV2 provides following display modes: • dBm/Watt: Display of absolute power level • Loss: Display of power level relative to a reference value • PF Abs: Pass/Fail indication based on an absolute power threshold •... -
Page 20: Loss Mode
PERATION OSS MODE Loss mode In Loss mode the power level relative to a reference value is displayed. The reference value can be set by defining the current power level as the reference value [Abs>Ref]. Press [] to display relative power level. Setting the reference level Absolute power level mode or Loss mode is selected. -
Page 21: Pass/Fail Mode
PERATION AIL MODE Pass/Fail mode An integrated pass/fail analysis feature simplifies standard conformity testing and provides unambiguous measurement result presentation. The OLP-37XV2 provides two Pass/Fail modes: • PF Abs: Pass/Fail indication based on a absolute power threshold • PF Loss: Pass/Fail indication based on a loss threshold To select a Pass/Fail mode: Press [] until PF Abs or PF Loss is displayed. -
Page 22: Memory Management
EMORY ANAGEMENT ENERAL INFORMATION EMORY ANAGEMENT General information The OLP-37XV2 allows you to save the measured power level values in a data memory and recall them as required. Up to 1000 results can be stored. NOTE: See also “Specifications” on page 27 for additional data management tools. -
Page 23: Deleting Measurements
EMORY ANAGEMENT ELETING MEASUREMENTS []/[] Press to browse through the list. Press [ ] to open the highlighted entry. The selected measurement data is displayed. []/[] Press [ ] to return to the list or, press to show next/previous result or press [MODE] to exit. Deleting measurements The device shows the list of saved measurements. -
Page 24: Data Export And Firmware Update
Bluetooth® and MobileTech app / StrataSync cloud You have also the choice to upload the saved data and to update the firmware using Bluetooth® via Viavi's MobileTech App into the StrataSync cloud. Please contact your Viavi representive for more information. -
Page 25: Maintenance
Do not open the instrument for maintenance or service. Service shall be performed by Viavi trained personnel only. Cleaning the test port It is a good idea to check that the optical connections are clean and to clean them if necessary before starting measurements. -
Page 26: Cleaning The Instrument
AINTENANCE LEANING THE INSTRUMENT Cleaning the instrument If the device gets dirty through use, you can clean it using a soft cloth moistened with a mild solution of detergent. NOTICE Water and cleaning fluids The instrument may be damaged or destroyed if water or cleaning fluids penetrate it. -
Page 27: Specifications
PECIFICATIONS OLP-37XV2 PECIFICATIONS OLP-37XV2 G-PON (1490 nm downstream) Power measurement range -45 to +13 dBm Maximum permitted input level +15 dBm Spectral pass band 1260 to 1500 nm Power uncertainty ±0.5 dBm 1) At -2 dBm, at 23 °C ± 3 °C, at nominal wavelength XGS-PON (1577 nm downstream) Power measurement range -45 to +13 dBm... - Page 28 PECIFICATIONS ENERAL SPECIFICATIONS EMC and safety Electromagnetic compatibility (EMC) EN 61326-1:2013 Device safety EN 61010-1:2010 Environmental Operating temperature range -10 to +55 °C (14 to 131 °F) conditions Storage and transport -40 to +70 °C (-40 to 158 °F) Altitude 2000 m max.
- Page 29 RDERING INFORMATION EVICES RDERING INFORMATION Devices OLP-37XV2 Optical Power Meter (G-PON, XGS-PON) OLP-37XV2 Calibration report OLP-37XV2 BN 2333/90.03 Accessories Cleaning materials, power supplies OCK-10 Optical cleaning kit BN 2229/90.21 Cleaning tape for optical connectors BN 2229/90.07 Spare optical cleaning tape BN 2229/90.08 NiMH rechargeable batteries, Mignon AA, 1.2 V BN 2237/90.02...
- Page 30 10 P RODUCT EGULATORY OMPLIANCE CCESSORIES RODUCT EGULATORY OMPLIANCE All information about the product regulatory compliance can be found in the printed booklett “ Safety, Disposal and Environmental Protection“ provided with your device. OLP-37XV2...
- Page 31 10 P RODUCT EGULATORY OMPLIANCE CCESSORIES OLP-37XV2...
- Page 32 North America +1 844-468 4284 Viavi product specifications and descriptions in Latin America +1 954 688 5660 this document are subject to change without China +86 21 6859 5260 notice. Germany +49 7121 86 0 © 2021 User manual SmartPocket V2 Optical Power Meters OLP-37XV2 viavisolutions.com...
