Hyundai IONIQ 6 Emergency Response Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IONIQ 6
Emergency Response Guide

Advertisement

Table of Contents
loading

Related Manuals for Hyundai IONIQ 6

Summary of Contents for Hyundai IONIQ 6

  • Page 1 IONIQ 6 Emergency Response Guide...

  • Page 2: Table Of Contents

    Contents 1. Identification / recognition 2. Immobilization / stabilization / lifting 3. Disable direct hazards / safety regulations 4. Access to the occupants 5. Stored energy / liquid / gases / solids 6. In case of fire 7. In case of submersion 8.

  • Page 3: Identification / Recognition

    1. Identification / recognition Initial Response: Identify, Immobilize and Disable The following procedures should be used whenever you are dealing with a IONIQ 6 at an emergency scene. However, all operations should be consistent with your department's standard operating procedures, guidelines, and any applicable laws. When an EV is damaged in a crash, the high voltage safety systems may have been compromised and present a potential high voltage electrical shock hazard.

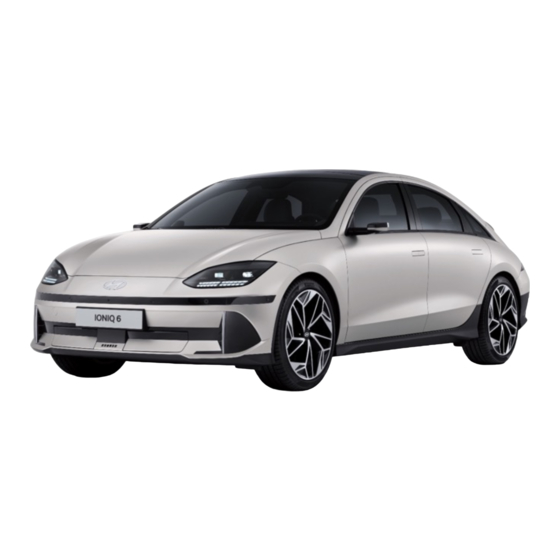

  • Page 4 • The HYUNDAI IONIQ 6 can be easily identified by the Exterior design and IONIQ 6 logo on the tail gate. • The IONIQ 6 logo may be missing or hidden after a crash due to damage to the vehicle. Always be sure to utilize additional methods of identification before determining that the vehicle is not an electric car.
  • Page 5 1. Identification / recognition 1.1 Identifying a HYUNDAI IONIQ 6 VIN Label The VIN (Vehicle Identification Number) identifies an electric car with a “A” or “B” or “C” or “D” displayed in the 8th position, as shown in the below picture.
  • Page 6 1. Identification / recognition 1.1 Identifying a HYUNDAI IONIQ 6 Motor Compartment and underside IONIQ 6 has a logo on the tail gate and an identifying exterior design. Additionally, there are orange colored high-voltage electrical cables in the motor compartment and underside...

  • Page 7: Immobilization / Stabilization / Lifting

    The next step is to immobilize the vehicle to prevent any accidental movement that can endanger response personnel or civilians. When the IONIQ 6 is damaged in a crash, the vehicle may appear to be shut off when it is not due to no engine sounds.

  • Page 8: Disable Direct Hazards / Safety Regulations

    3. Disable direct hazards / safety regulations The final step in the initial response process, conducted after immobilizing the vehicle, is to disable the vehicle, its SRS components and the high voltage electrical system. To prevent current flow through the system, use the following procedure to disable the vehicle. 12V battery Power Off High voltage shut off...
  • Page 9 3. Disable direct hazards / safety regulations Without depressing the brake pedal Pressing Button Vehicle condition POWER button Position/LED One time ACC/ON Electrical accessories are operational. The warning lights can be checked before the Two times ON/ON vehicle is started. Three times While depressing the brake pedal Pressing...
  • Page 10 3. Disable direct hazards / safety regulations b) Remove the Junction block upper cover (A) in the PE room c) Disconnect the High voltage cut-off Switch B : High voltage cut-off Switch Electrocution Risk • Before engaging in any emergency response procedures, ensure the vehicle is disabled and wait 5 minutes to allow the capacitor in the high voltage system to discharge to avoid electrocution.

  • Page 11: Access To The Occupants

    4. Access to the occupants 4.1 Extraction Operations The IONIQ 6 is an electric model. Because of the high voltage components contained therein, first responders should pay special attention when they extract occupants in the car. Before performing any extraction operations, the first responders should "Identify, Immobilize and Disable"...
  • Page 12 4. Access to the occupants 4.4 Location of ultra-high strength steel In these images, high strength steel is used in the areas colored in blue and ultra-high strength steel is used in the red colored areas. Depending on the tools used, ultra high strength steel can be challenging or impossible to cut.
  • Page 13 4. Access to the occupants 4.5 Occupants rescue guide When dealing with the emergency situation, check the components as below. Driver only Supplemental Restraint Syst Airbag Gas Airbag em Control Module (SRSCM) Inflators High voltage cable 12V Battery Air-conditioning line Ultra-High Strength High voltage disconnect OBC (On –...

  • Page 14: Stored Energy / Liquid / Gases / Solids

    5. Stored energy / liquid / gases / solids 5.1 High voltage system Supplies electric energy to traction motor and High voltage battery stores generated electric energy. High-voltage It supplies electricity from battery to the inverter, Junction box (FRT, RR) LDC, air conditioner compressor, etc...
  • Page 15 High voltage battery The HV Lithium ion battery supplies and stores electric energy, to the traction motor, and is located under the IONIQ 6 chassis. 12V auxiliary battery The 12V auxiliary battery is located in the right side of the electric motor room, and powers all of the vehicle’s standard electronics...
  • Page 16 5. Stored energy / liquid / gases / solids 5.2 High voltage orange cabling The High Voltage cabling is orange, per Society of Automotive Engineers (SAE) standards. Cables run under the floor of the vehicle and connect the High Voltage Battery to the ICCU, Motor, A/C compressor and other High Voltage components located towards the front and rear of the vehicle.

  • Page 17: In Case Of Fire

    6. In case of fire 6.1 Firefighting Operations Strict precautions must be taken while conducting firefighting operations due to following Reasons: • Lithium-ion batteries contain electrolyte that can vent, ignite and produce sparks when subjected to temperatures above 300°F. • Vehicle may burn rapidly with a flare-burning effect. •...
  • Page 18 6. In case of fire 6.3 How to deal with the situation Extinguish the fire with a large amount of water. Fire Don’t use seawater or salt water. It can generate the toxic vapor or cause the reignition. Disconnecting 12V Battery (-) terminal, Damaged Disabling the high voltage system, Battery...
  • Page 19 6. In case of fire 6.3.2 High Voltage Battery Damage and Fluid Leaks If electrolyte solution leakage, or any damage to the Lithium ion battery casing is observed, the first responders should attempt to neutralize the battery by applying a large volume of water to the battery pack while wearing appropriate Personal Protective Equipment (PPE).
  • Page 20 6. In case of fire 6.4 High Voltage Battery re-ignition by stranded energy Damaged cells in the high voltage battery can experience thermal runaway* and reignition. To prevent reignition, the first responder and second responder need to be aware of the risk of stranded energy* which remains in the damaged cells and lead to reignition.

  • Page 21: In Case Of Submersion

    7. In case of submersion 7.1 Submerged or Partially Submerged Vehicles Some emergency responses can involve a submerged vehicle. IONIQ 6 that is submerged does not have high-voltage components on the vehicle’s body or framework. It is safe to touch the vehicle’s body or framework if there is no severe damage to the vehicle, whether it is in water or on land.

  • Page 22: Towing / Transportation / Storage

    In the event of an accident, the high voltage system must be disabled. The safety plug must be removed from the high voltage battery according to the method described in page 7-9 to disable the vehicle. Towing the IONIQ 6 Vehicle is not different from towing a conventional electric vehicle. If emergency towing is necessary, we...
  • Page 23 8. Towing / Transportation / storage 8.2 Storage of damaged vehicle with the damaged battery • Drain fluids and water, then disconnect the negative (-) terminal of the 12V battery before storing a damaged vehicle. • Place the vehicle in an open space away from any structure, vehicle, or building. •...
  • Page 24 8. Towing / Transportation / storage 8.3 Battery Storage • To store the damaged battery safely, the battery must be discharged. • If the battery can be removed from the vehicle, using salt water and discharge the battery. • Prepare approx. 2% salt water by pouring salt into the water. •...

  • Page 25: Important Additional Information

    (3), then the other end to a solid, stationary, metallic point away from the fuse box (4). Do not attempt to jump start the IONIQ 6 high voltage battery. Failure to follow these instructions will lead to serious bodily injury or death by electrical shock.
  • Page 26 9.2 Airbag system (SRS: Supplemental Restraint System) Airbag Five airbags are installed in the IONIQ 6, located in the areas shown in the image below. Before performing any emergency procedure, make sure the vehicle ignition switch is turned off and disconnect the negative connector from the 12V auxiliary battery(located in the motor room) to prevent accidental deployment of undeployed airbags.
  • Page 27 9. Important additional information Airbag system components 4. Side Airbag (SAB) 1. Driver’s front Airbag (DAB) 5. Curtain Airbag (CAB) 2. Passenger’s front Airbag (PAB) 6. Supplemental Restraint System 3. Seat Belt Pretensioner (BPT) Control Module (SRSCM) Undeployed Airbags To avoid injuries caused by accidental deployment of undeployed airbags •...
  • Page 28 9. Important additional information Seat belt System 1) Front Seatbelt Pretensioner 2) Rear Seatbelt Pretensioner Undeployed Airbags To avoid injuries caused by accidental deployment of undeployed airbags • Do not cut the airbag system shown in the image above. • Make sure the vehicle ignition switch is turned off, disconnect the negative cable from the 12V auxiliary battery (located in the motor room) and wait 3 minutes or longer to allow the system to deactivate.
