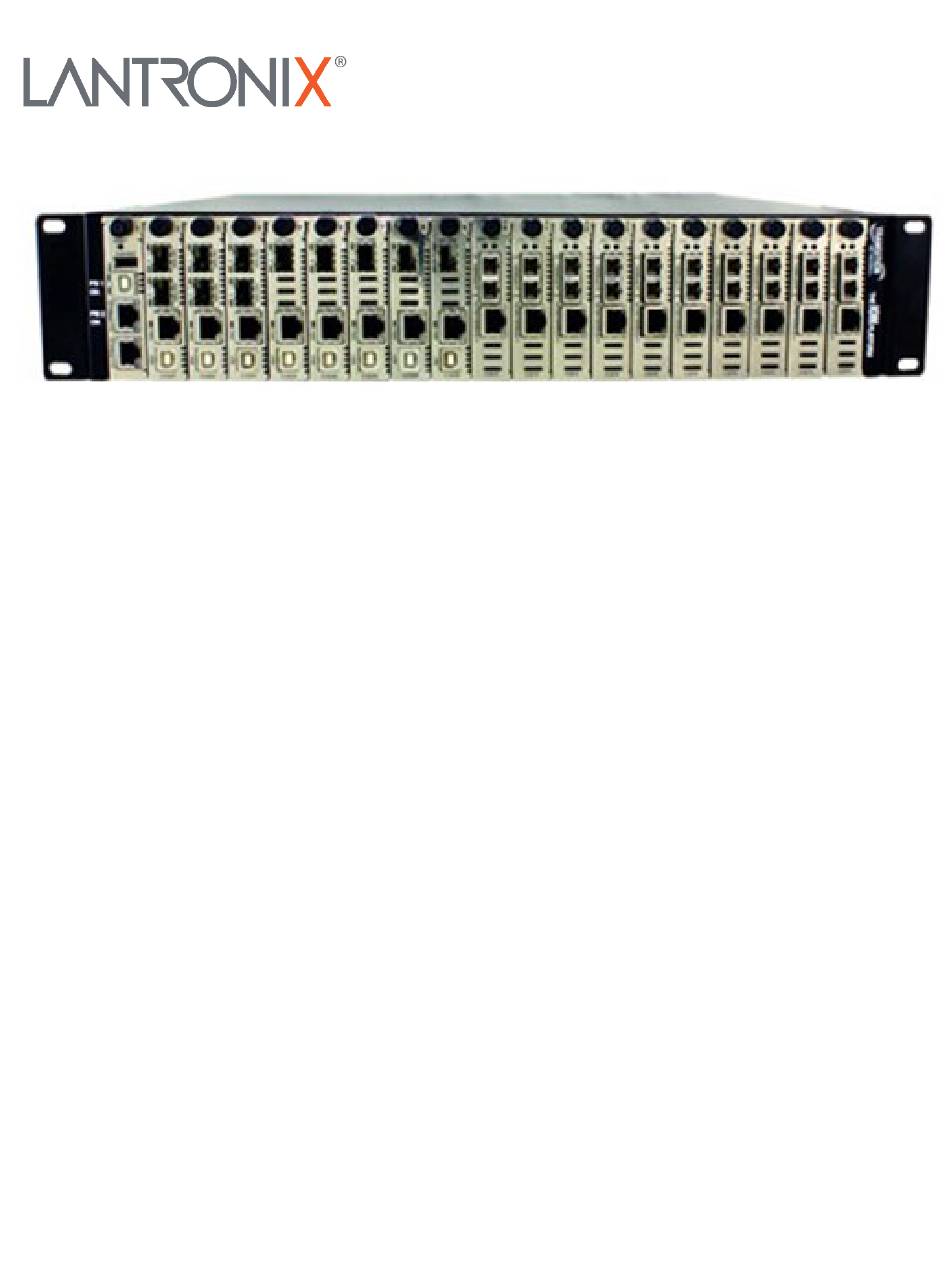

- Page 1 ION219-x ION 19-Slot Chassis Install Guide Part Number 33412 Revision E August 2023...
- Page 2 ION219-x Install Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders.
- Page 3 Lantronix ION219-x Install Guide Cautions and Warnings Definitions Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to person. Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to read and understand the information identified by this symbol could result in poor equipment performance, damage to the equipment, or injury to persons.
- Page 4 Lantronix ION219-x Install Guide Warnings Warning: Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Warning: Visible and invisible laser radiation when open. Do not look into the beam or view the beam directly with optical instruments.
-
Page 5: Table Of Contents
Lantronix ION219-x Install Guide Contents Introduction and Description ..........................7 Product Description ..............................7 Features ..................................7 Ordering Information ...............................8 ION219-x Chassis Specifications ...........................9 IONPS-x Power Supply Specifications ........................ 10 About this Manual ..............................10 Related Manuals and Online Help ........................10 Unpacking ................................11 Site Preparation ............................. - Page 6 Lantronix ION219-x Install Guide SICs to Network Connections .......................... 23 Chassis Daily Operation ..........................23 SIC Monitoring ..............................23 Network Management............................23 Firmware and Applications ..........................23 Troubleshooting ............................24 Introduction ................................24 Label Information ..............................25 Record Model and System Information ....................... 25 Compliance Information ............................
-
Page 7: Introduction And Description
ION chassis with the modules in another ION chassis, an ION stand-alone, or a Lantronix’ Point System™ stand-alone device. To take full advantage of all the features and functions available with the ION Chassis, an ION Management Module (IONMM) is required. -
Page 8: Ordering Information
America, -JP = Japan, -OZ = Australia, -BR = Brazil. Note: Only for ION219-A and ION219-AAMB. Lantronix offers a full line of small form factor pluggable (SFP) transceivers and SFPs passive coarse wave division multiplexing (CWDM) filters. See the Lantronix page for details. -
Page 9: Ion219-X Chassis Specifications
Lantronix ION219-x Install Guide ION219-x Chassis Specifications The ION219-x chassis was designed to meet these standards: Slots 19 Slots in front for ION slide in-cards and 2 Slots in rear for power supply modules. IEEE Standards IEEE 802.3™-2000 Unit LEDs Power On LED for each installed power supply module. -
Page 10: Ionps-X Power Supply Specifications
(COH) facilities are built into the Web interface. For Lantronix Documentation, Firmware, App Notes, etc. go to https://www.lantronix.com/technical-support/. Note that this manual provides links to third party web sites for which Lantronix is not responsible. For SFP manuals see Lantronix webpage. -
Page 11: Unpacking
Lantronix ION219-x Install Guide Unpacking 1. Carefully unpack all ION219-x contents. 2. Verify receipt of all ION219-x components. Contact your sales representative if any items are missing. 3. Place the ION219-x and related materials near the install location. 4. Save the ION219-x shipping carton and packing materials for possible future use. -
Page 12: Site Preparation
Lantronix ION219-x Install Guide Site Preparation The ION219-x 19-Slot Chassis contains a fixed 100Mbs full duplex bus with point to-point connection with all endpoints, which greatly improves data bandwidth and response time. Each endpoint in the system (Slide-In Card (SIC), Backplane Controller (BPC), power supply (PS) and Agent) has a dedicated port on a 24-Port non- blocking, full-bandwidth 100Mbps Ethernet switch, supporting simultaneous traffic between all endpoints. -
Page 13: Chassis Rear
Lantronix ION219-x Install Guide Chassis Rear The ION219-x is equipped with an AC power supply or an optional DC power supply installed in one of its rear slots. An extra installation space is available for an optional (AC or DC) power supply for redundancy purposes. -
Page 14: Installation
Lantronix ION219-x Install Guide Installation This chapter describes ION219-x cautions/warnings, site requirements, installation, and setup. Cautions Caution: Install the ION219-x chassis so that the airflow around it is not restricted. Failure to observe this caution could result in performance problems or damage to the contents of the chassis. -
Page 15: Site Requirements
Lantronix ION219-x Install Guide Site Requirements To assure normal operation and avoid unnecessary maintenance, plan the site configuration, and prepare the site before installation. After installation, make sure that the site maintains an ambient temperature of 0°C to +50°C (+32°F to +122°F). -
Page 16: Installation Procedures
Lantronix ION219-x Install Guide Installation Procedures Installing the Chassis The ION219-x chassis can be installed in a standard 19-inch rack or on a table, shelf, or other stable surfaces. Tabletop Installation The ION219-x chassis comes with nine (9) rubber feet for installation on a table or other flat, stable surface in a well-ventilated area. -
Page 17: Figure 7: Ion219-X Rack Mount Ear Installation
Lantronix ION219-x Install Guide Installing Rack Mount Ears Note: Installation rack-mount-ear mounting screws (cover-to-frame screws, see Figure 7 below) are provided. Rack mount “screws” and “clip nuts” are NOT provided. To install the ION219-x chassis rack mount ears, do the following: 1. -
Page 18: Rack Installation Procedure
Lantronix ION219-x Install Guide Rack Installation Procedure To install the chassis in a rack, do the following: 1. Locate four (4) mounting screws (not provided) and optional clip-nuts (not provided) for each chassis to be installed. 2. Carefully position and align the chassis to the mounting holes in the rack, as shown in Figure 8 below. -
Page 19: Grounding Path
Lantronix ION219-x Install Guide Grounding Path The electrical conducting path from the chassis to ground must: Flow via the grounding lugs to the Common Bonding Network (CBN) for telecom installations, or to an • alternate approved grounding system (if required) for non-telecom installations. -
Page 20: Ground Installation
Lantronix ION219-x Install Guide Ground Installation To ground the ION219-A chassis, do the following: 1. Obtain one (1) properly terminated, grounding conductor (12 AWG copper wire gauge or larger) with a two- hole, compression-type, grounding connector. Note the manufacturer's applied torque required for the connector. -
Page 21: Chassis Power Leds
Lantronix ION219-x Install Guide Chassis Power LEDs The power LEDs are located left side of the chassis front panel. The LEDs indicate power supply ON/Ready state. See Figure 11 below. Figure 11: Power Supply LEDs Power Indicator LEDs Power LED indicators present the state of each installed power supply. The LED will light when the respective power supply (PS1 or PS2) is plugged into power with the power ON/OFF switch in the ON position. -
Page 22: Powering The Ion219-X Chassis
Lantronix ION219-x Install Guide Powering the ION219-x chassis The ION219-x chassis has several power options. The following sections provide specific information on and Warnings and Cautions specific to IONPS-A and IONPS-D Power Supply Components, Optional Power Supply Module Installation, Connecting External Power, Replacing Power Supply Fuse, Replacing the Power Supply... -
Page 23: Network Connectivity
SICs in the ION219-x chassis from an attached terminal or from a remote, networked computer. The firmware includes the Lantronix Command Line Interface (CLI), a telnet server, a Web browser, and an SNMP (Simple Network Management Protocol) agent. -
Page 24: Troubleshooting
Lantronix ION219-x Install Guide Troubleshooting Introduction This section provides basic troubleshooting information for the ION219-x chassis via a problem and cause table. The problems are stated in the problem column and the potential cause is listed in the cause column. If the problem cannot be remedied, based on the information below, contact Technical Support. -
Page 25: Label Information
Describe any action(s) already taken to resolve the problem (e.g., changing mode, resetting, etc.): _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ The model # and serial # of all other Lantronix products in the network: ______________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Describe your network environment (layout, cable type, cable distance, etc.): ___________________________... -
Page 26: Compliance Information
_________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ ION219 Chassis Firmware Download Request Firmware for the ION219 Chassis is dependent on the serial number of your chassis. Go to the Lantronix webpage at https://www.lantronix.com/ion219-chassis-firmware-download-request/ to get the correct version of the firmware for your chassis. - Page 27 Lantronix ION219-x Install Guide European Regulations CAUTION: This is a Class A product. In a domestic environment, this product could cause radio interference in which case the user may be required to take adequate measures. Achtung ! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten.
-
Page 28: Uk Declaration Of Conformity
Lantronix ION219-x Install Guide UK Declaration of Conformity 33412 Rev. E https://www.lantronix.com/... -
Page 29: Eu Declaration Of Conformity
Lantronix ION219-x Install Guide EU Declaration of Conformity 33412 Rev. E https://www.lantronix.com/... -
Page 30: North America And Eu Declaration Of Conformity
Lantronix ION219-x Install Guide North America and EU Declaration of Conformity 33412 Rev. E https://www.lantronix.com/... -
Page 31: Electrical Safety Warnings
Lantronix ION219-x Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal installeres i overensstemmelse med sikkerhedsadvarslerne. -
Page 32: Appendix A Cable Specification And Connectors
Lantronix ION219-x Install Guide Appendix A Cable Specification and Connectors RJ45 Cable Wire: Category 5e, 6 Gauge: 24 to 22 AWG Attenuation: 22.0 dB/100m @ 100 MHz Max. Cable Distance: 100 meters • Straight-through or crossover cable may be used. -
Page 33: Coax Cable And Bnc Connectors
Lantronix ION219-x Install Guide Coax Cable and BNC Connectors BNC (Bayonet Neil-Concelman) are bayonet type connectors, commonly used in CCTV systems. These connectors are specified by IEC standard IEC60169-8. BNC coaxial-cable media is used for circuits such as DS3, E1, and 10Base-2 Ethernet. The impedance of the coaxial cable is determined by the interface type; for example: •... -
Page 34: Usb (Universal Serial Bus)
Lantronix ION219-x Install Guide USB (Universal Serial Bus) USB uses 4 shielded wires: • two for power (+5v and GND) • two for differential data signals (labelled as D+ and D- in pinout) NRZI (Non Return to Zero Invert) encoding scheme used to send data with a sync field to synchronize the host and receiver clocks. -
Page 35: Fiber Cables
160/500 0.275 100/140 4.5/2.0/— 200/200 0.29 Fiber Connectors The following are typical connector ends for fiber cables used to connect Lantronix NIDs and media converters. See Figure 31 below. Figure 16: Fiber Optic Cable Connector Ends 33412 Rev. E https://www.lantronix.com/... - Page 36 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33412 Rev. E https://www.lantronix.com/...
