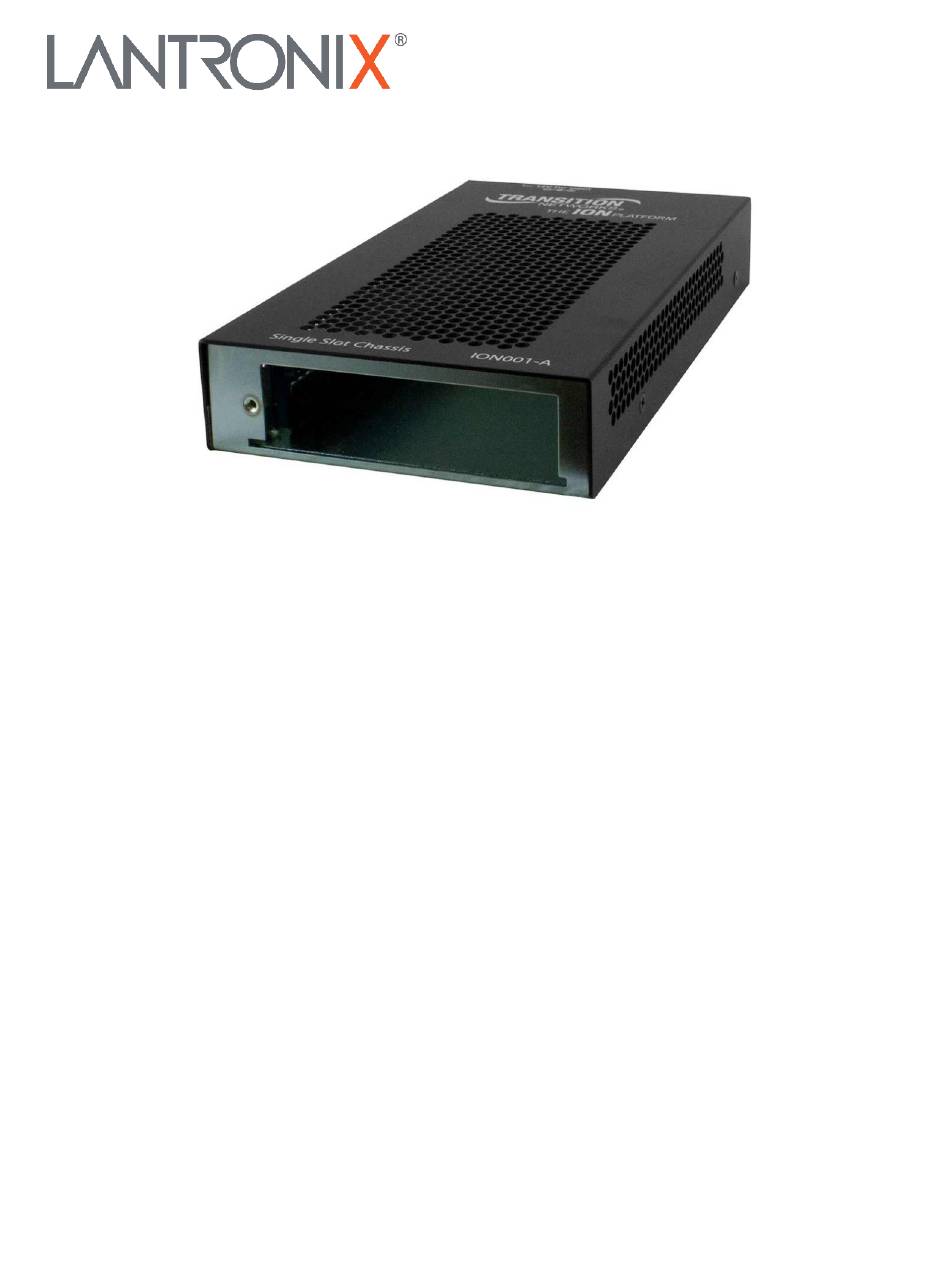

- Page 1 ION001-A Single-Slot ION Chassis Install Guide Part Number 33419 Revision E March 2022...
- Page 2 ION001-A Install Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Table Of Contents
Lantronix ION001-A Install Guide Contents Product Description ............................4 Ordering Information ............................. 4 Optional Accessories (sold separately) ....................4 Features ................................ 4 Kit Contents ..............................4 Power Supply Included ..........................4 Installation ..............................5 Installing a Slide-In Card ........................... 5 Powering the Chassis .......................... -
Page 4: Product Description
To order the corresponding country specific power supply, add the extension from the list below to the end of the SKU; Ex: ION001-A-NA: -NA = North America, -LA = Latin America, -EU = Europe, -UK = United Kingdom, -SA = South Africa, -JP = Japan, -OZ = Australia; -BR = Brazil. -
Page 5: Installation
Failure to observe this caution could result in damage to the slide-in card. Note: The maximum power delivery capacity for the ION001-A Single Slot chassis is 6 Watts. To install a slide-in-card into the single-slot chassis: 1. -
Page 6: Powering The Chassis
Powering the Chassis To supply power to the single-slot chassis: 1. Connect the barrel connector on the power adapter to the ION001-A back panel Power port. 2. Connect the power adapter plug to AC power. 3. Use the cable tie down to secure the power supply cord and the barrel connector. -
Page 7: Specifications
3. Attach the opposite end of the grounding conductor to the common-bonding network (CBN) for telecom, or to earth ground (if required) for non-telecom installations. Specifications For Lantronix Model ION001-A Single Slot chassis or equivalent. Note: The ION001-A Single Slot chassis is Class A compliant. Status LEDs... -
Page 8: Troubleshooting
A printed documentation card is shipped with each ION001-A chassis. For Lantronix Documentation, Firmware, App Notes, etc. go to https://www.lantronix.com/technical-support/. Note that this manual provides links to third party web sites for which Lantronix is not responsible. Other ION system and related device manuals include. -
Page 9: Compliance Information
Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the products: ION001-A Series Single-Slot Chassis ION-001A Conforms to the following Product Regulations: EMC Directive 2004/108/EC; EN 55022:2006+A1:2007 Class A; EN55024:1998+A12001+A2:2003; EN61000-3-2; EN6100-3-3; CFR Title 47 Part 15 Subpart B Class A;... -
Page 10: Canadian Regulations
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Lantronix will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. - Page 11 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33419 Rev. E https://www.lantronix.com/...
