Summary of Contents for Lantronix ION219-x

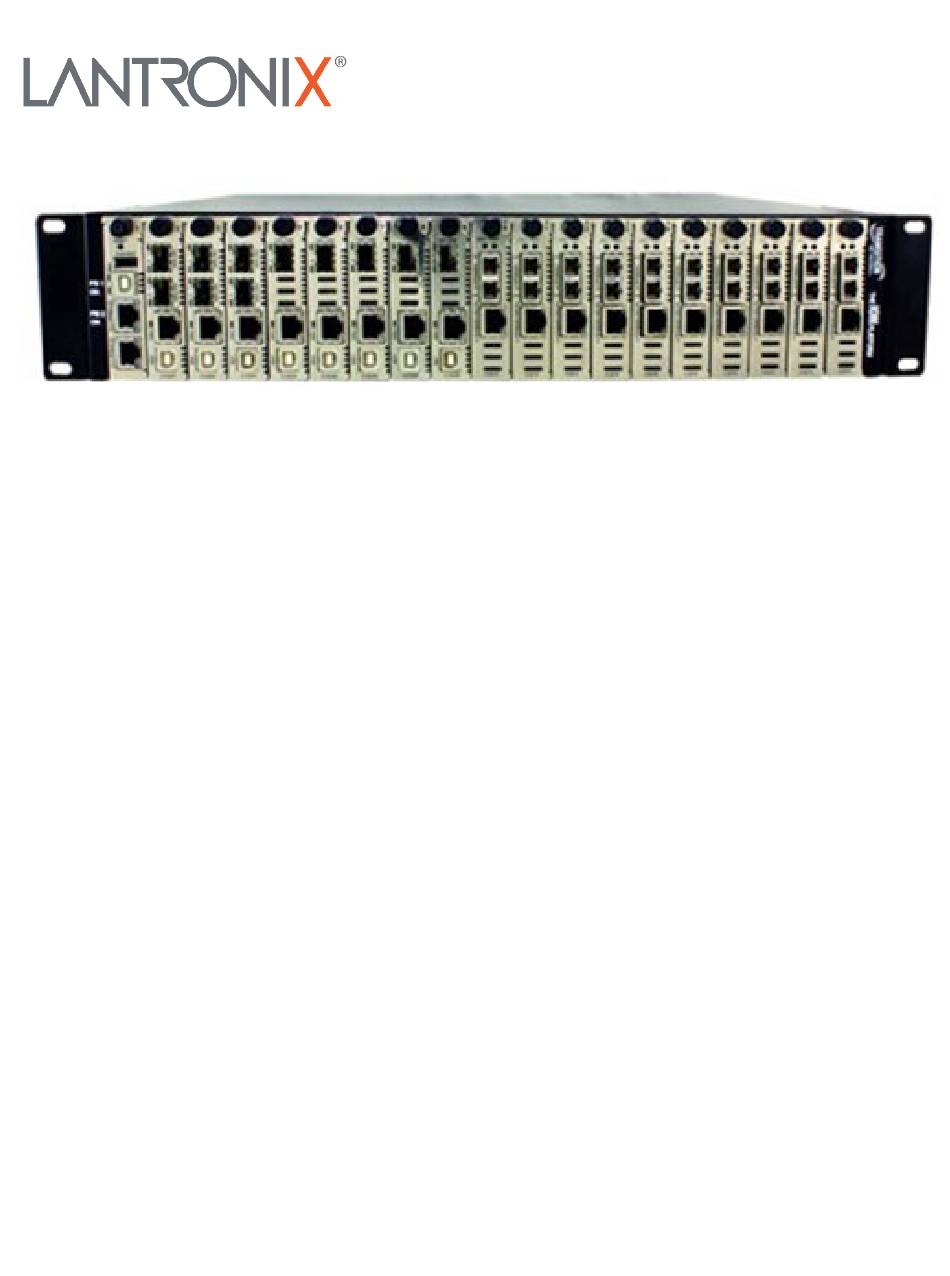

- Page 1 ION219-x ION 19-Slot Chassis Install Guide Part Number 33412 Revision D January 2022...
- Page 2 ION219-x Install Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders.
- Page 3 Lantronix ION219-x Install Guide Cautions and Warnings Definitions Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to person. Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to read and understand the information identified by this symbol could result in poor equipment performance, damage to the equipment, or injury to persons.
- Page 4 Lantronix ION219-x Install Guide Warnings Warning: Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Warning: Visible and invisible laser radiation when open. Do not look into the beam or view the beam directly with optical instruments.
-
Page 5: Table Of Contents
Ground Installation ............................21 Chassis Slide-In Cards (SICs) and IONMM Installation ..................21 Chassis Power LEDs ............................22 Power Indicator LEDs ............................22 Powering the ION219-x chassis .......................... 23 .......................... 24 Network Connectivity Connecting Chassis SICs to the Network......................24 SICs to Network Connections .......................... - Page 6 Lantronix ION219-x Install Guide Record Model and System Information ....................... 26 Compliance Information ............................27 Declaration of Conformity ............................ 28 Electrical Safety Warnings ........................... 29 .................. 30 Appendix A Cable Specification and Connectors RJ45 Cable ................................30 Coax Cable and BNC Connectors ........................31 USB (Universal Serial Bus) ..........................
- Page 7 Figure 4: ION219-x Chassis Rear View ........................14 Figure 5: Unsafe Lifting Techniques ........................15 Figure 6: Rack Mount Ear Installation Positions ...................... 17 Figure 7: ION219-x Rack Mount Ear Installation ..................... 18 Figure 8: Rack Mounting ............................19 Figure 9: Chassis Grounding Hardware ........................20 Figure 10: Grounding the Chassis ..........................
-
Page 8: Introduction And Description
ION chassis with the modules in another ION chassis, an ION stand-alone, or a Lantronix’ Point System™ stand-alone device. To take full advantage of all the features and functions available with the ION Chassis, an ION Management Module (IONMM) is required. -
Page 9: Ordering Information
(included) America, -JP = Japan, -OZ = Australia, -BR = Brazil. Note: Only for ION219-A and ION219-AAMB. Lantronix offers a full line of small form factor pluggable (SFP) transceivers and passive coarse wave division multiplexing (CWDM) filters. SFPs See the Lantronix SFP page for details. -
Page 10: Ion219-X Chassis Specifications
Lantronix ION219-x Install Guide ION219-x Chassis Specifications The ION219-x chassis was designed to meet these standards: Slots 19 Slots in front for ION slide in-cards and 2 Slots in rear for power supply modules. IEEE Standards IEEE 802.3™-2000 Unit LEDs Power On LED for each installed power supply module. -
Page 11: Ionps-X Power Supply Specifications
See the related IONPS-x power supply manual for specifications and standards. About this Manual This manual provides instructions on how to install and configure the ION219-x Chassis to accommodate various types of ION slide-in cards (SICs) and power supplies. Related Manuals and Online Help A printed documentation card is shipped with each device. -
Page 12: Unpacking
Unpacking 1. Carefully unpack all ION219-x contents. 2. Verify receipt of all ION219-x components. Contact your sales representative if any items are missing. 3. Place the ION219-x and related materials near the install location. 4. Save the ION219-x shipping carton and packing materials for possible future use. -
Page 13: Site Preparation
ION219-x Install Guide Site Preparation The ION219-x 19-Slot Chassis contains a fixed 100Mbs full duplex bus with point to-point connection with all endpoints, which greatly improves data bandwidth and response time. Each endpoint in the system (Slide-In Card (SIC), Backplane Controller (BPC), power supply (PS) and Agent) has a dedicated port on a 24-Port non- blocking, full-bandwidth 100Mbps Ethernet switch, supporting simultaneous traffic between all endpoints. -
Page 14: Chassis Rear
Chassis Rear The ION219-x is equipped with an AC power supply or an optional DC power supply installed in one of its rear slots. An extra installation space is available for an optional (AC or DC) power supply for redundancy purposes. -
Page 15: Installation
This chapter describes ION219-x cautions/warnings, site requirements, installation, and setup. Cautions Caution: Install the ION219-x chassis so that the airflow around it is not restricted. Failure to observe this caution could result in performance problems or damage to the contents of the chassis. -
Page 16: Site Requirements
Lantronix ION219-x Install Guide WARNING: Do not work on the chassis, connect, or disconnect cables during a storm with lightning activity. Failure to observe this warning could result in an electrical shock or death. Site Requirements To assure normal operation and avoid unnecessary maintenance, plan the site configuration, and prepare the site before installation. -
Page 17: Installation Procedures
Tabletop Installation The ION219-x chassis comes with nine (9) rubber feet for installation on a table or other flat, stable surface in a well-ventilated area. If tabletop installation is desired, remove the rubber feet from the card and place them on the bottom of the chassis. -
Page 18: Figure 7: Ion219-X Rack Mount Ear Installation
Note: Installation rack-mount-ear mounting screws (cover-to-frame screws, see Figure 7 below) are provided. Rack mount “screws” and “clip nuts” are NOT provided. To install the ION219-x chassis rack mount ears, do the following: 1. Determine the preferred alignment of the chassis into the rack. -
Page 19: Rack Installation Procedure
(not provided) to secure the chassis to the rack. Figure 8: Rack Mounting Grounding Lugs The ION219-x chassis comes equipped with grounding lugs, which are provided for a grounding conductor wire terminated with a two-hole, compression-type grounding connector. The grounding wire must be a copper conductor (not provided). -
Page 20: Grounding Path
Lantronix ION219-x Install Guide Grounding Path The electrical conducting path from the chassis to ground must: Flow via the grounding lugs to the Common Bonding Network (CBN) for telecom installations, or to an • alternate approved grounding system (if required) for non-telecom installations. -
Page 21: Ground Installation
Lantronix ION219-x Install Guide Ground Installation To ground the ION219-A chassis, do the following: 1. Obtain one (1) properly terminated, grounding conductor (12 AWG copper wire gauge or larger) with a two- hole, compression-type, grounding connector. Note the manufacturer's applied torque required for the connector. -
Page 22: Chassis Power Leds
Lantronix ION219-x Install Guide Chassis Power LEDs The power LEDs are located left side of the chassis front panel. The LEDs indicate power supply ON/Ready state. See Figure 11 below. Figure 11: Power Supply LEDs Power Indicator LEDs Power LED indicators present the state of each installed power supply. The LED will light when the respective power supply (PS1 or PS2) is plugged into power with the power ON/OFF switch in the ON position. -
Page 23: Powering The Ion219-X Chassis
ION219-x Install Guide Powering the ION219-x chassis The ION219-x chassis has several power options. The following sections provide specific information on and Warnings and Cautions specific to IONPS-A and IONPS-D Power Supply Components, Optional Power Supply Module Installation, Connecting External Power, Replacing Power Supply Fuse, Replacing the Power Supply... -
Page 24: Network Connectivity
Ethernet-to-Ethernet, Fast Ethernet-to-Fast Ethernet, ATM-to-ATM). Failure to observe this caution will cause data transfers to fail. SICs to Network Connections Once the ION219-x chassis has been installed, the SICs can be connected to the network. Refer to the SIC user guide for cabling specifications and instructions. Chassis Daily Operation Daily operation of the ION219-x chassis requires no network administrator activity except for the occasional monitoring of the status LED indicators on the chassis and on the installed SICs. -
Page 25: Troubleshooting
• Contact Technical Support. 3. When a problem or exception occurs, the ION219-x sends the related Trap messages to the FP 3.0 Trap Server to report this event. You can launch the Trap Server in Focal Point 3.0 to capture the Trap message to get more details of the running ION219-x status. -
Page 26: Record Model And System Information
Tech Support Specialist. Information sources include the product label on the bottom of the ION219-x, the S/N label on the packaging, the ION device web GUI, and the ION device CLI. Model #: ________________________________ Serial #: _____________________________ ____________... -
Page 27: Compliance Information
Lantronix ION219-x Install Guide Compliance Information FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 28: Declaration Of Conformity
Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the products: 19-Slot Rack Mount Chassis: ION219-x ION219-A, ION219-D, ION219-AAMB Conform to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010... -
Page 29: Electrical Safety Warnings
Lantronix ION219-x Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal installeres i overensstemmelse med sikkerhedsadvarslerne. -
Page 30: Appendix A Cable Specification And Connectors
Lantronix ION219-x Install Guide Appendix A Cable Specification and Connectors RJ45 Cable Wire: Category 5e, 6 Gauge: 24 to 22 AWG Attenuation: 22.0 dB/100m @ 100 MHz Max. Cable Distance: 100 meters • Straight-through or crossover cable may be used. -
Page 31: Coax Cable And Bnc Connectors
Lantronix ION219-x Install Guide Coax Cable and BNC Connectors BNC (Bayonet Neil-Concelman) are bayonet type connectors, commonly used in CCTV systems. These connectors are specified by IEC standard IEC60169-8. BNC coaxial-cable media is used for circuits such as DS3, E1, and 10Base-2 Ethernet. The impedance of the coaxial cable is determined by the interface type; for example: •... -
Page 32: Usb (Universal Serial Bus)
Lantronix ION219-x Install Guide USB (Universal Serial Bus) USB uses 4 shielded wires: • two for power (+5v and GND) • two for differential data signals (labelled as D+ and D- in pinout) NRZI (Non Return to Zero Invert) encoding scheme used to send data with a sync field to synchronize the host and receiver clocks. -
Page 33: Fiber Cables
160/500 0.275 100/140 4.5/2.0/— 200/200 0.29 Fiber Connectors The following are typical connector ends for fiber cables used to connect Lantronix NIDs and media converters. See Figure 31 below. Figure 16: Fiber Optic Cable Connector Ends 33412 Rev. D https://www.lantronix.com/... - Page 34 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33412 Rev. D https://www.lantronix.com/...
