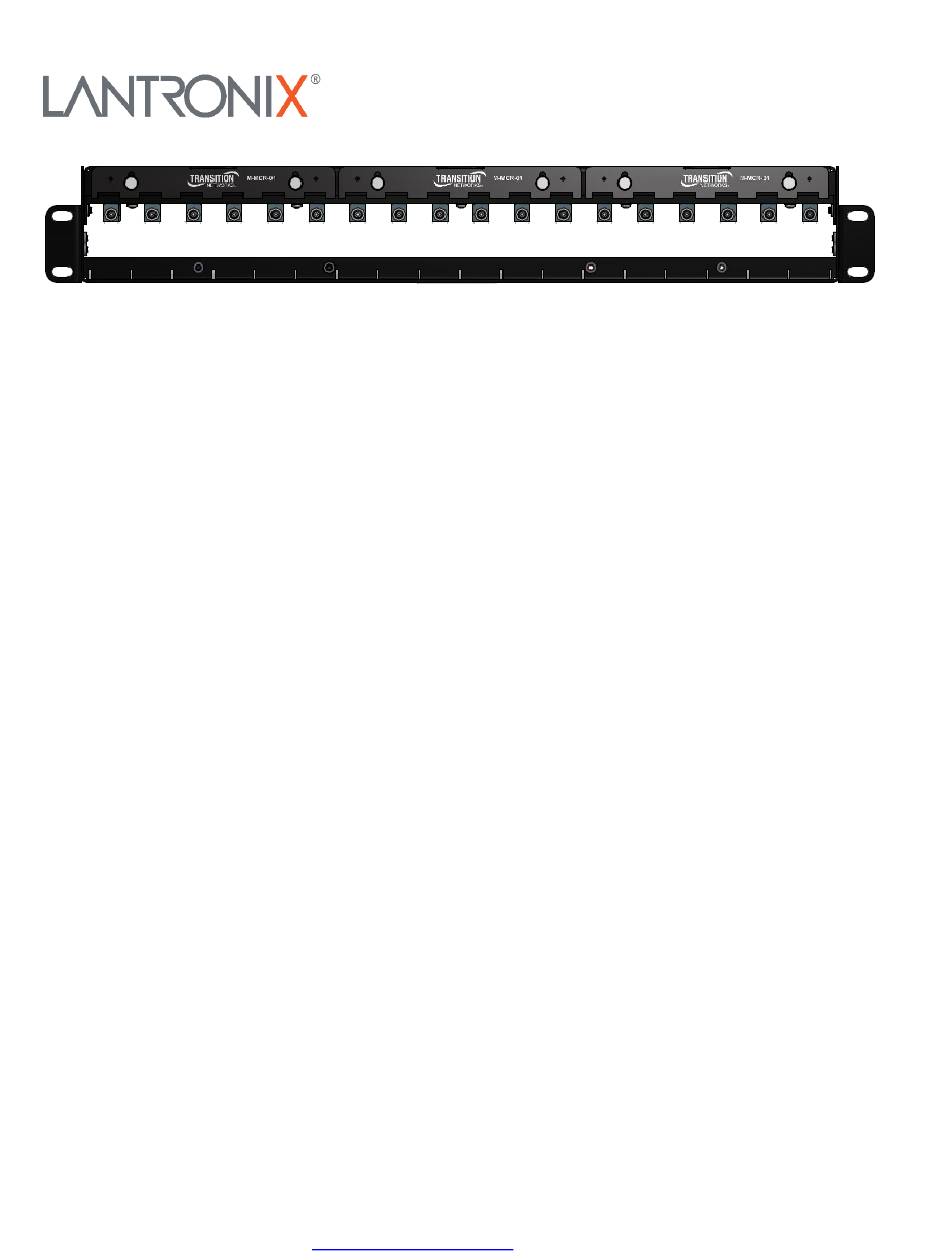

- Page 1 M-MCR-01 Mini Media Converter Chassis User Guide Part Number 33628 Revision B July 2022 33628 Rev. B https://www.lantronix.com/ Page 1 of 13...
- Page 2 M-MCR-01 User Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Table Of Contents
Package Contents ..............................5 Installation ...................................6 Table Top Installation .............................6 Rack Installation ..............................6 Install Media Converters into the M-MCR-01 ......................8 Mount Power Supply to the M-MCR-01 .........................8 Connect Power to the M-MCR-01 ..........................9 Technical Specifications ............................10 M-MCR-01 Specs ..............................10 Power Supply Specs ............................ -
Page 4: Introduction
Converter from affecting the rest. The M-MCR-01 occupies 1.5U of rack space, allowing two chassis to be mounted in 3 units of rack space, efficiently using critical rack space in datacenters or wiring closets. The Mini Converters are hot-swappable and directly connect to the chassis backplane to receive their power connection. -
Page 5: Features
Power Cord Included: To order the corresponding country-specific power cord, add the extension from the list below to the end of the SKU. For example M-MCR-01-NA = North America, -LA = Latin America, -EU = Europe, -UK = United Kingdom, -SA = South Africa, -JP = Japan, -OZ = Australia, -BR = Brazil. -
Page 6: Installation
(e.g., use of power strips). Mount One M-MCR-01 into a Rack The M-MCR-01 is 1-1/2 U high, and you can use 2 RU to rack-mount a single chassis, or use 3 RU to rack-mount two M-MCR-01 chassis as follows: 1. - Page 7 1. Locate four (4) screws (provided) and optional clip-nuts (not provided) for each M-MCR-01 Media Converter Rack. 2. Carefully align the M-MCR-01 at a level position between the rack mounting rails as shown below. 3. Install two (2) screws through the right front bracket and two (2) screws through the left front bracket.
-
Page 8: Install Media Converters Into The M-Mcr-01
Install Media Converters into the M-MCR-01 1. Position the media converter in the M-MCR-01 as shown below and then carefully slide it into the slot. 2. If desired, slide the captive panel down to secure the bank of six media converters (optional). -
Page 9: Connect Power To The M-Mcr-01
Lantronix M-MCR-01 User Guide Connect Power to the M-MCR-01 Caution: Make sure that the M-MCR-01 will not overload the circuit used to supply power. See the Technical Specifications section on page for current and power maximums. Warning: Make sure that the M-MCR-01 is properly grounded. Failure to observe this warning could result in an electrical shock. -
Page 10: Technical Specifications
Regulatory Compliance Dimensions: 17.3 x 12 x 2.6 inches (W x D x H) Weight: 7.35 lbs (3.32 Kg (M-MCR-01 with power supply and cord) Shipping Weight: 7.4 lbs. [3.35 kg] MTBF* MTBF for the mini chassis – 700,000 hours... -
Page 11: Dimensions
Lantronix M-MCR-01 User Guide Dimensions M-MCR-01 Dimensions: 2.62” H x 19” W x 12” D (66.54 mm H x 482.59 mm W x 304.79 mm D). Power Supply Dimensions: 125 x 50 x 31.5mm (LxWxH) 33628 Rev. B https://www.lantronix.com/ Page 11 of 13... -
Page 12: Compliance Information
RoHS, WEEE, and Environmental Programs https://www.lantronix.com/legal/rohs/ Related Manuals A printed Documentation Postcard is shipped with each Lantronix device. A substantial set of technical documents, white papers, case studies, etc. are available on the Lantronix web site https://www.lantronix.com/products-class/sfps/. The related manuals are listed below. - Page 13 Technical Support Tel: +1 (800) 526-8766, Tel: +1 (949) 453-3990, or https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33628 Rev. B https://www.lantronix.com/ Page 13 of 13...
