MAINTENANCE • ENTRETIEN • MANTENIMIENTO

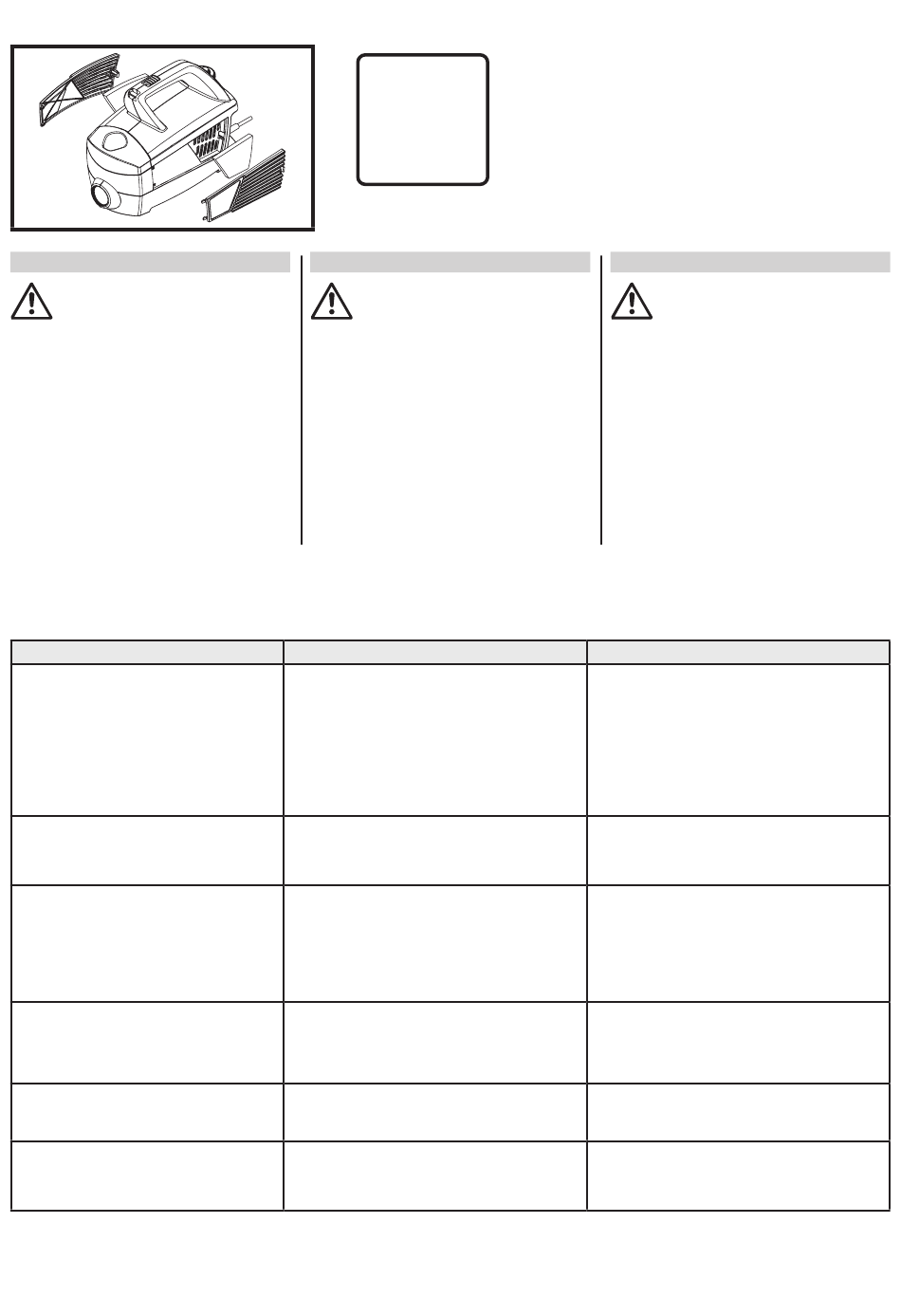

REPLACING THE FILTER
Before every use, you should inspect
the air filters in the turbine to see if it is
excessively dirty. If it is dirty, follow these
Attention
steps to replace it.
Never operate your unit without the
air filters. Dirt could be sucked in and
interfere with the function of the unit.
1. Press the tabs on each side of the turbine to remove
the filter covers.
Remove the dirty filters from the turbine and replace
with new ones. The smooth side of the air filter must
be placed toward the turbine.
Secure the covers back onto the turbine.
TROUBLESHOOTING
PROBLEM
Problem A: Little or no material flow
Problem B: Material leaking
Problem C: Spray pattern too thick, runs and sags
Problem D: Spray gun spits
Problem E: Too much overspray
Problem F: Pattern is very light and splotchy
REMPLACEMENT DU FILTRE
Vous devriez inspecter les filtres à air
qui est situé dans la turbine pour vérifier
s'il est excessivement encrassé. S'il est
Attention
encrassé, veuillez suivre les étapes ci-
dessous pour le remplacer.
Ne
jamais
faire
appareil sans le filtre à air. Des impuretés
pourraient être aspirées et causer des
inter-férences dans le fonctionnement de
l'appareil.
1. Enfoncez les languettes de chaque côté de la turbine
pour enlever les couvercles de filtre.
Enlevez les filtres souillés de la turbine et remplacez-
les par de nouveaux. Le côté lisse du filtre à air doit
être placé vers la turbine. Remettez les couvercles sur
la turbine.
CAUSE
1. Nozzle clogged.
2. Suction tube clogged.
3. Air vent on suction tube blocked.
4. Material flow setting too low.
5. Suction tube loose.
6. No pressure build up in container.
7. Air valve tube not functioning.
8. Nozzle seal missing.
9. Air filter clogged.
10. Spray material too thick.
1. Nozzle loose.
2. Nozzle worn.
3. Nozzle seal missing or worn.
4. Material build-up on air cap and nozzle
1. Material flow setting too high.
2. Air power setting too low.
3. Applying too much material.
4. Nozzle clogged.
5. Air filter clogged.
6. Too little pressure build-up in container.
7. Spray material too thick.
1. Material in container running out.
2. Air filter clogged.
3. Air valve tube disconnected.
4. Air vent on suction tube blocked.
5. No pressure build up in container.
1. Gun too far from spray object.
2. Air power setting too high.
3. Material flow setting too high.
1. Moving the spray gun too fast.
2. Material flow setting too low.
3. Air power setting too high.
Scan the QR codes for videos, tips,
troubleshooting, and more.
Scannez le codes QR pour vidéos, aux conseils,
au dépannage et plus encore.
Escanee el códigos QR para videos, consejos,
resolución de problemas y más.
REEMPLAZO DEL FILTRO
Atención
fonctionner
votre
1. Presione las lengüetas de cada lado de la turbina para
retirar las tapas del filtro.
Retire los filtros sucios de la turbina y reemplácelos
por nuevos. Se debe colocar el lado suave del filtro de
aire hacia la turbina.
Fije las tapas de vuelta en la turbina.
SOLUTION
1. Clean.
2. Clean.
3. Clean (see page 9)
4. Increase material flow setting.
5. Remove and replace as tightly as possible.
6. Tighten container.
7. Make sure both ends of the tube are connected and
the valve seal is in place.
8. Replace nozzle.
9. Change
10. Thin.
1. Tighten retaining ring.
2. Replace.
3. Replace nozzle.
4. Clean.
1. Decrease material flow setting.
2. Increase air power setting.
3. Adjust material flow or increase movement of spray
gun.
4. Clean.
5. Change.
6. Tighten container.
7. Thin.
1. Refill.
2. Change.
3. Reconnect both ends of the air tube.
4. Clean (see page 9)
5. Tighten container or container lid.
1. Reduce distance (6"-8" is ideal).
2. Decrease air power setting.
3. Decrease material flow setting.
1. Adjust material flow or decrease movement of spray
gun.
2. Increase material flow setting.
3. Decrease air power setting.
Es conveniente que inspeccione el filtro
de aire de la turbina para controlar si
está excesivamente sucio. Si se encuentra
sucio, siga los pasos a continuación para
reemplazarlo.
Nunca haga funcionar la unidad sin
los filtros de aire. La suciedad puede
ingresar en la unidad e interferir con su
funcionamiento.
