PT4700S-TRIPOD
17" SDI Teleprompter, Tripod & Dolly Turnkey
OVERVIEW

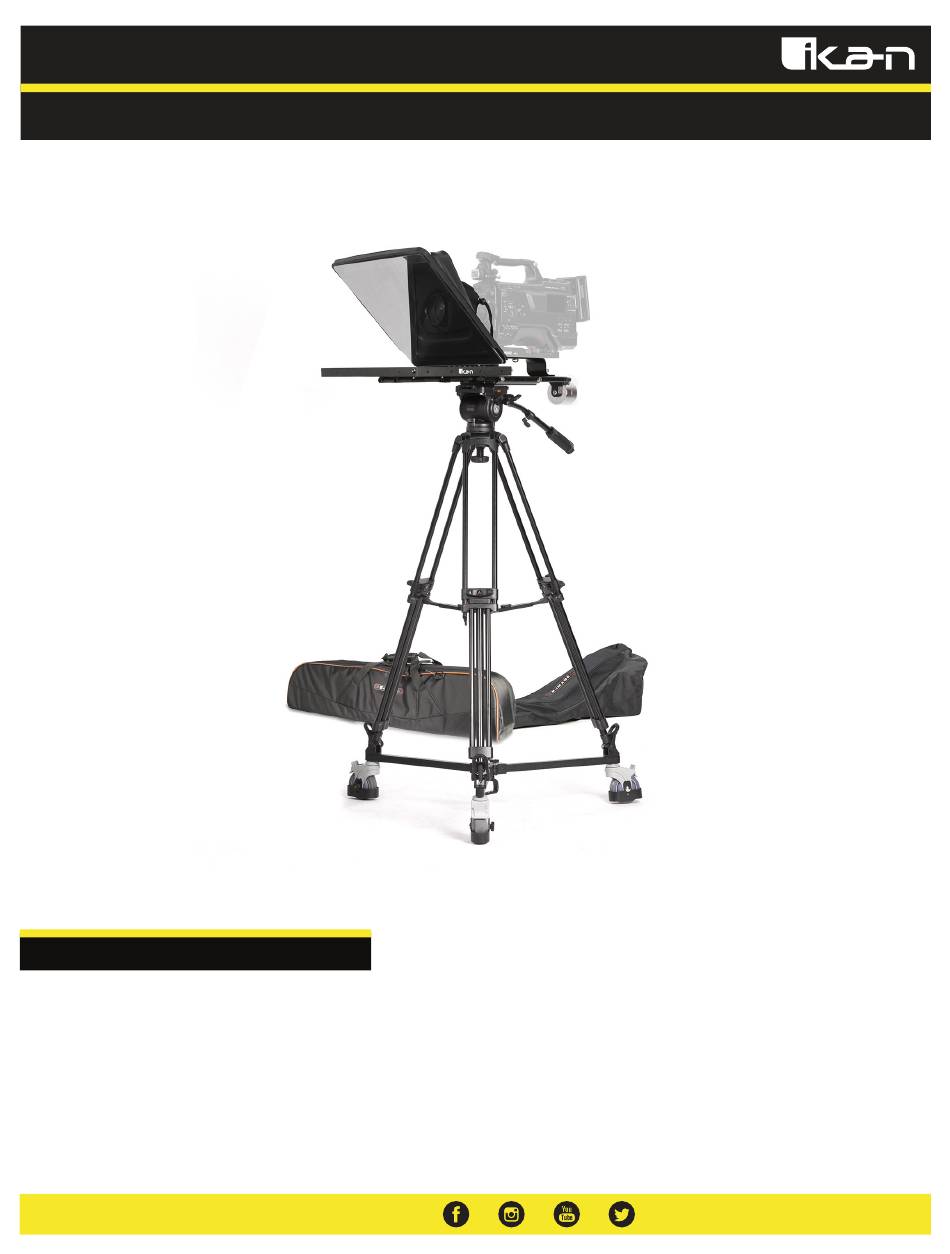

Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 17" 3G-SDI
teleprompter, tripod, and dolly. All of our systems have been tested internally for payload compatibility.
The remaining payload capacity, after mounting the full 17" teleprompter system without the counterweight, can accommodate camera setups
up to 18 lbs. The tripod, without the teleprompter system, can accommodate cameras up to 44 lbs. This solution also includes separate
carrying bags for the tripod and dolly.
www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com
Quick Start Guide
because we're filmmakers too
Advertisement
Table of Contents
Related Manuals for Ikan PT4700S-TRIPOD
Summary of Contents for Ikan PT4700S-TRIPOD
- Page 1 17” SDI Teleprompter, Tripod & Dolly Turnkey OVERVIEW Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 17” 3G-SDI teleprompter, tripod, and dolly. All of our systems have been tested internally for payload compatibility.
-
Page 2: What's Included
What’s Included PT4700-SDI 1 x Tripod w/ Head 1 x Dolly w/ Wheels & Cable Guards 17” Professional High Bright Beam 1 x 17” Teleprompter System w/ Monitor Splitter Teleprompter w/ 3G-SDI 4 x Camera Riser Plates 1 x PrompterPro Software (FREE with this teleprompter) Teleprompter Assmebly Setup Step 1... - Page 3 Step 5 Extend the teleprompter hood open and attach teleprompter boot using the clips. It is suggested to align the seam with the bottom of the teleprompter hood. Step 6 Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods. because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 4 Step 7 Attach the monitor mounts on the back of the monitor’s VESA compatible threads using the 4 included screws and provided 2mm hex key. Step 8 After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts.
- Page 5 Foam Case To make your teleprompter more portable, we packed it in a reusable, high-quality foam. The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2. ** DO NOT THROW AWAY FOAM CASE ** because we’re filmmakers too...
-
Page 6: Monitor Ports
Monitor Ports Monitor Menu Settings Video Config Contrast (White Level) Brightness (Black Level) Tint (Chroma Hue) Chroma (Chroma Saturation) Sharpness (Detail) RGB Setup – Manually configure RGB Return System Config Menu Duration – Set duration of how long menu stays on screen Video Ratio –... -
Page 7: Specifications
Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters https://youtu.be/5TjIxzBc_Vc Specifications General 17 in. Teleprompter Available Payload w/o Counterweight 18 lbs. Riser Plate Height Low: 2.06 in./52.5mm Medium: 3.74 in./95mm Available Payload w/ Counterweight 12.1 lbs. High: 5.31 in./135mm Max Height of Full System 7.14 ft. -
Page 8: Learn More
Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2018 ikan Corporation. All rights reserved because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com... - Page 9 GA102 100mm Aluminum Video Tripod The GA102 two stage aluminum tripod supports a payload weighing up to 132 lbs. It is made of lightweight aluminum, has a 100mm bowl, and the legs are a twin tube design with two stages. The tripod can be adjusted to a maximum height of 63”...
- Page 10 GH20 100mm Fluid Head 212mm/8.3in 100mm 73mm/2.9in 20.0kg 175mm/6.9in 44.0lbs FEATURES Leveling bubble Fixed drag of pan & tilt Longer sliding plate 8 plus 0 steps of counterbalance SPECIFICATIONS Model GH20 Payload Range 20.0kg / 44.0lbs Counterbalance Range Grades Of Pan Drag Fixed Grades Of Tilt Drag Fixed...
- Page 11 GA101 100mm 140.5cm / 55.3in 63.5cm / 25.0in 85.0cm / 25.0in 60.0kg / 132.0lbs 4.5kg / 9.9lbs Aluminum EG20A (GH20+GA101) 20.0kg / 44.0lbs 156.0cm / 61.4in 79.0cm / 31.1in 100.5cm / 39.6in 8.4kg / 18.5lbs 100mm Packing...
