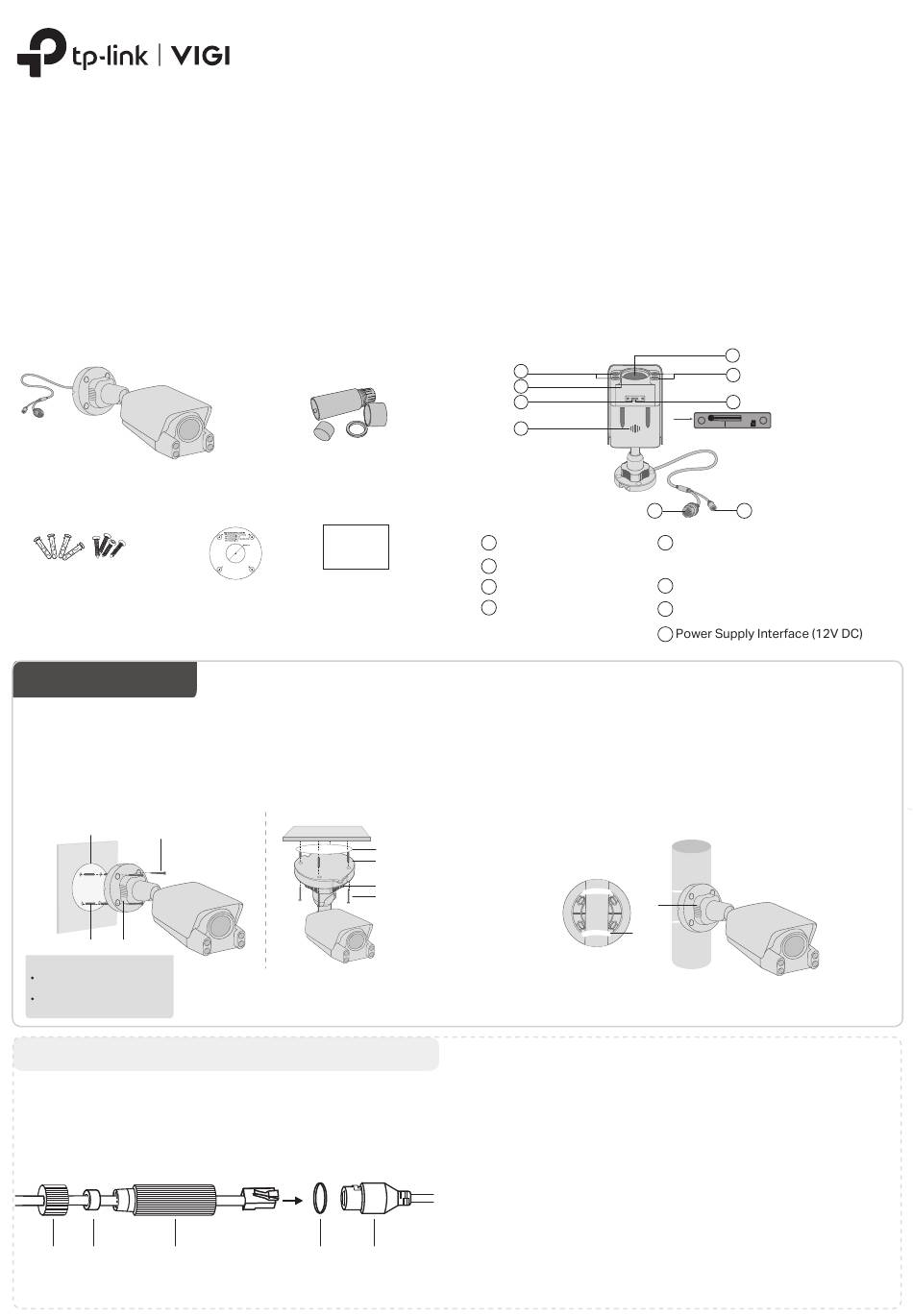

TP-Link VIGI C340S Quick Start Manual

Quick Start Guide
*Images may differ from actual products.
©2023 TP-Link 7106510406 REV1.1.0
Package Contents

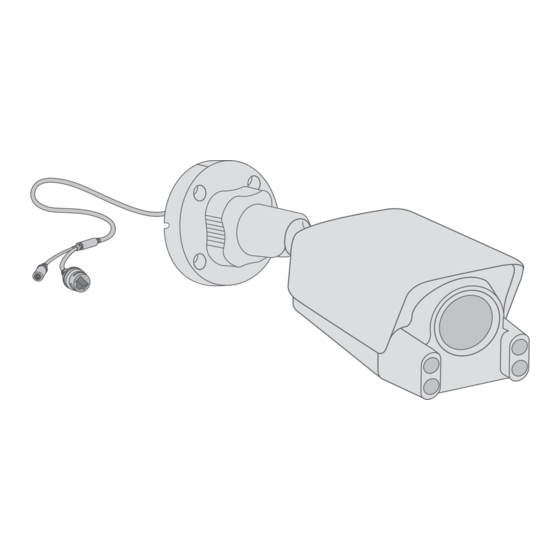

Network Camera
Φ6 mm Φ3.5 mm
Anchors and Screws
Mounting Template
1
Mount Camera
Option 1: Wall/Ceiling Mounting
1. Stick the mounting template to the desired mounting place. Drill
4 screw holes according to the template.
2. Insert the anchors into the holes, use the provided screws to fix
the camera's bracket to the wall or ceiling.
3. Loosen the nut and rotate the camera to the desired position,
then tighten the nut.
Mounting Template Self-tapping Screw
Anchor Nut
Appropriate drilling size (Φ)
When installing with anchors
Φ = 6 mm (15/64 in.) Anchor
When installing with screws only
Φ = 3 mm (1/8 in.)
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network
interface when the camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof
rings are flush to keep out water.
Fix Nut Waterproof Waterproof
Jacket
Ring
Waterproof Cable
Attachments
Quick
Start
Guide
Quick Start Guide
Mounting Template
Anchor
OR
Nut
Self-tapping Screw
O-ring Network
Interface
Safety First:
• Make sure your power supply matches your camera.
The camera's standard power supply is 12V DC or
PoE (802.3af/at). The power source should comply
with Power Source Class 2 (PS2) or Limited Power
Source (LPS) of IEC 62368-1.
• Make sure that the wall is strong enough to
withstand 4 times the weight of the camera and
mounting bracket.
• If you are uncertain or uncomfortable performing the
installation, consult a qualified electrician.
Appearance
2
3
4
6
7
Lens
1
White LED
2
Microphone
3
Reset
4
Long press the button to reset
the camera to factory settings.
Option 2: Pole Mounting
1. Thread each of the two cable ties through the slits on the back
of the camera's bracket indicated below.
2. Slip the two cable ties through the pole. Tighten them to firmly
attach the pole.
3. Loosen the nut and rotate the camera to the desired position,
then tighten the nut.
Nut
Cable Tie
1. Route the network cable through the following
components in order: fix nut, waterproof ring, and then
the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and
connect the network cables.
3. Attach the network interface with the waterproof jacket,
then twist to lock.
4. Insert the waterproof ring into the waterproof jacket.
Rotate the fix nut to secure it to the waterproof jacket.
Done! The network interface is now waterproof.
1
2
5
Reset microSD
Note: Before inserting the microSD
card, unfasten the two fixed screws to
remove the cover.
8
microSD Card Slot
5
Insert a microSD card for local storage. Initialize
the SD card via VIGI app before recording videos.
Speaker
6
RJ45 Ethernet Port (supports PoE)
7
8
