TP-Link VIGI C340HPWSM Quick Start Manual

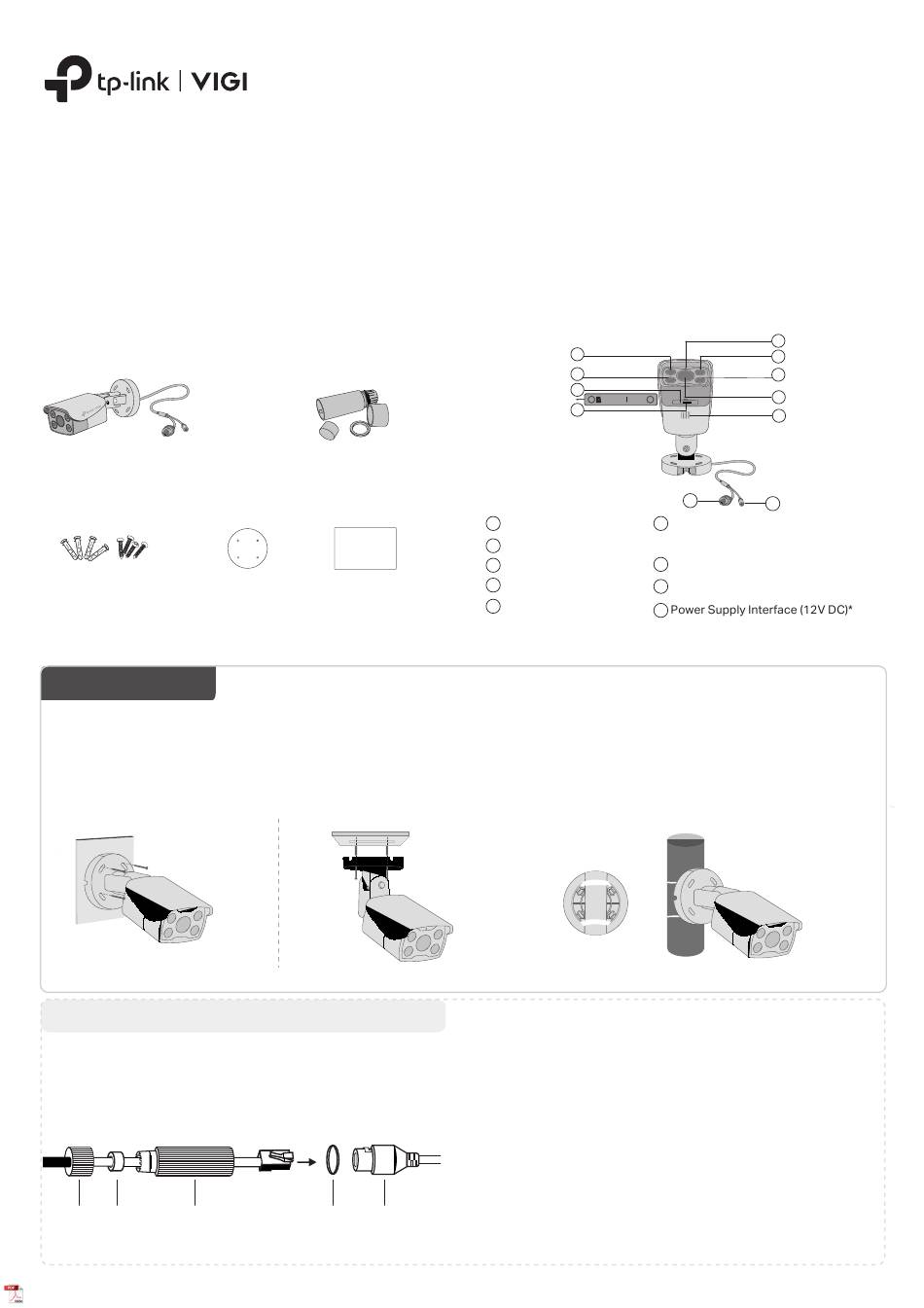

Quick Start Guide
*Images may differ from actual products.
Package Contents

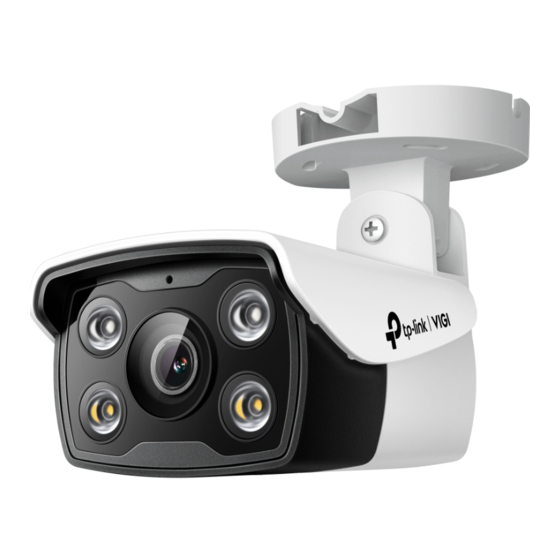

Network Camera
Anchors and Screws
Mounting Template
1
Mount Camera
Option 1: Wall/Ceiling Mounting
1. Stick the mounting template to the desired mounting place.
Drill 4 screw holes according to the template.
2. Insert the anchors into the holes, use the provided screws to
fix the camera's bracket to the wall or ceiling.
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network
interface when the camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof
rings are flush to keep out water.
Fix Nut Waterproof Waterproof
Ring Jacket
Waterproof Cable
Attachments
Quick
Start
Guide
Quick Start Guide
OR
O-ring Network
Interface
Safety First:
• Make sure your power supply matches your camera.
The camera's standard power supply is 12V DC or
PoE (802.3af/at). The power source should comply
with Power Source Class 2 ( PS2) or Limited Power
Source(LPS) of IEC 62368-1.
• Make sure that the wall is strong enough to
withstand 4 times the weight of the camera and
mounting bracket.
• If you are uncertain or uncomfortable performing the
installation, consult a qualified electrician.
Appearance
2
3
5
Micro SD RESET
6
Note: Before inserting the micro SD
card or resetting the camera, unfasten
the two fixed screws to remove the
cover.
Microphone
1 6
IR LED
2
7
3 White Light
4 Lens
8
RESET Button
5
9
Long press the button to reset
the camera to factory settings.
*The camera's standard power supply is 12V DC or PoE (802.3af/at).
Option 2: Pole Mounting
1. Thread each of the two cable ties through the slits on the
back of the camera's bracket indicated below.
2. Slip the two cable ties through the pole. Tighten them to
firmly attach the pole.
1. Route the network cable through the following
components in order: fix nut, waterproof ring, and then
the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and
connect the network cables.
3. Attach the network interface with the waterproof jacket,
then twist to lock.
4. Insert the waterproof ring into the waterproof jacket.
Rotate the fix nut to secure it to the waterproof jacket.
Done! The network interface is now waterproof.
1
2
3
4
7
8
9
Micro SD Card Slot
Insert a micro SD card for local storage. Initialize
the SD card via VIGI app before recording videos.
Speaker
RJ45 Ethernet Port (supports PoE)*
