USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!

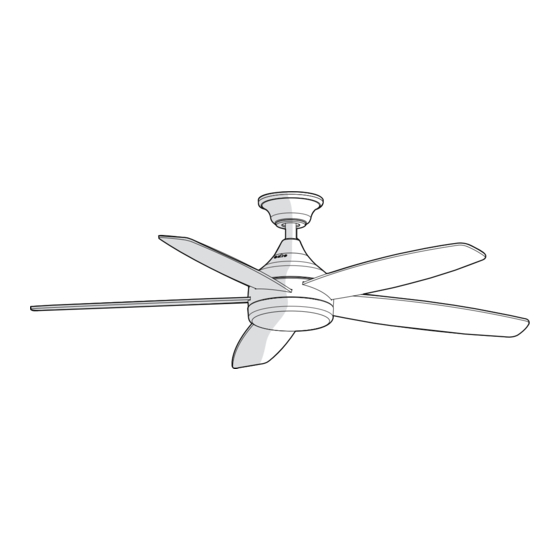

52 IN.TYRA
INDOOR CEILING FAN
call Hubspace Customer Service
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
THANK YOU
Item #1000 000 000
1000 000 000
Model #AK404-BN
AK404-MBK
Advertisement
Related Manuals for HAMPTON BAY AK404-BN
Summary of Contents for HAMPTON BAY AK404-BN
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
The following responsible party designated in FCC §2.909 is turned off at the circuit breaker or fuse box before beginning. responsible for this declaration: Model Number: AK404-BN, AK404-MBK All wiring must be in accordance with the National Electrical Company Name: TAL INTERNATIONAL CORPORATION Code “ANSI/NFPA 70”... -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw and lock washer (additional) 1.5V AAA battery 3-pin extension cord...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS ON / OFF ON / OFF 3 SPEED BRIGHTNESS COLOR TEMP. Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade support plate with screw and lock washer Canopy Canopy bottom cover (preassembled) Light kit assembly Hanger ball/downrod assembly Receiver...
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of re, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°... -
Page 7: Assembly
Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor Remove the cotter pin (FF) and clevis pin (GG), and loosen Remove the canopy ring (B) from the canopy (C). the two collar setscrews (HH) from the fan motor assembly (G) collar. - Page 8 Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor Remove the canopy ring (B) from the canopy (C). Remove the cotter pin (FF), clevis pin (GG) and the two collar setscrews (HH) from the motor collar. Remove the mounting bracket (A) from the canopy (C) by loosening the four canopy mounting screws with lock Remove three of the six collar mounting screws with lock washers (EE) on the top of the canopy (C).
- Page 9 Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of re, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
- Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White conductor WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: Do not use with a wall light dimmer switch.
- Page 11 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections On a single switch the fan and light can be turned on or off On a dual switch the fan and light can be turned on or off together.
- Page 12 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Make sure the tab on the mounting bracket (A) WARNING: Locking slots of the canopy (C) are provided properly sits in the groove in the hanger ball (E) before only as an aid to mounting.
- Page 13 Assembly — Attaching the Fan Blades Attaching the fan blades WARNING: To reduce the risk of personal injury, do not bend the blades (H) while installing, balancing the blades (H) or cleaning the fan. or cleaning the fan. WARNING: Do not insert foreign objects between rotating fan blades (H).
- Page 14 Assembly — Installing the Light Kit Installing the LED light kit to the light kit mounting plate CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not suf cient to prevent electric shock.
-
Page 15: Operation
Operation SETTING THE TRANSMITTER NOTE: The remote has been pre-paired in the factory for your convenience. NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. - Page 16 Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. Signal light Power on/off Power ALL button: Press and release the power button to turn the fan and light on or off.
- Page 17 Operation (continued) INSTALLING THE REMOTE CONTROL HOLDER To install the remote control bracket (OO), remove the two screws holding the switch cover plate (PP). Do not remove the cover plate (PP). Orient the bracket (OO) by lining up the two mounting holes with those on the cover plate (PP).
- Page 18 Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the surface of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation. Reverse switch NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.
- Page 19 Application Set-Up NOTE: For more information on smart remote set up, please refer to the quick start guide located in the remote pack. NOTE: To use Alexa to change the white temperature of the Questions, problems missing parts? light, please make sure the light is turned on rst. Please call Hubspace Customer service 8 a.m.
- Page 20 Voice Commands The Tyra 52 in. Ceiling Fan works with Alexa and Google Assistant. This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/. Alexa Google When you want to... Ask Alexa to... When you want to...
-
Page 21: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 22 Troubleshooting (Hubspace Problem Solution My hubspace device is not Make sure your device is connected to a power source. connecting to Wi-Fi. Your Internet connection or Wi-Fi network may be down. My device cannot nd any Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add. Wi-Fi networks.
- Page 23 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modi cations to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
