THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

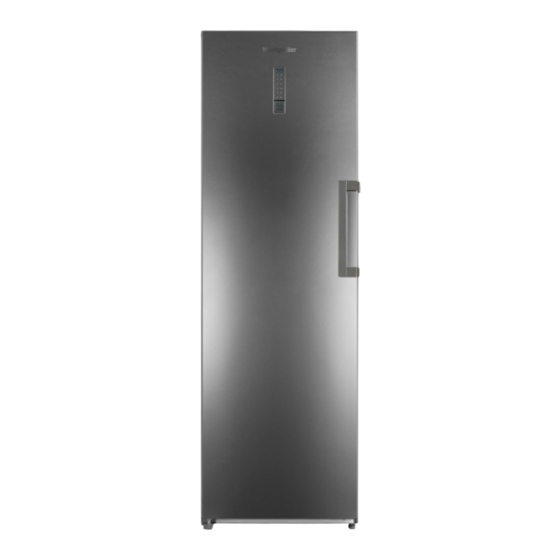

Tall No Frost Freezer
MTF273X - Inox
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MTF273X
Summary of Contents for montpellier MTF273X
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Tall No Frost Freezer MTF273X - Inox Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
1 Safety warnings 1.1 Warning 1 - 2 1.2 Meanings of safety warning symbols 1.3 Electricity related warnings 1.4 Warnings for using 1.5 Warnings for placement 1.6 Warnings for energy 1.7 Warnings for disposal 2 Proper use of the freezer 2.1 Placement 2.2 Door handle installation 2.3 Levelling feet... - Page 4 This appliance is intended to be used in household and domestic applications only. The appliance should be allowed to stand upright for a minimum of 4 hours before being turned on for the first time or after being moved to another position. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a...
- Page 5 The freezer must be disconnected from the source of electrical supply before attempting the installation of accessory. For a freestanding appliance: This refrigerating appliance is not intended to be used as a built-in appliance. Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.
-
Page 6: Meanings Of Safety Warning Symbols
1.2 Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;... -
Page 7: Warnings For Using
1.4 Warnings for using Do not arbitrarily disassemble or reconstruct the freezer, nor • damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. Damaged power cord must be replaced by the manufacturer, • its maintenance department or related professionals in order to avoid danger. -
Page 8: Warnings For Energy
Do not store beer, beverage or other fluid contained in • bottles or enclosed containers in the freezing chamber of the freezer; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 Warnings for energy Warning for energy 1 )Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for... -
Page 9: Placement
2 Proper use of refrigerators 2.1 Placement • Before use, remove all packing materials, including bottom cushions,foam pads and tapes inside of the freezer. Tear off the protective film on the doors and the freezer body. • Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. -
Page 10: Door Handle Installation
2.2 Door handle installation Precautions shall be taken to prevent fall of the handle from causing any personal injury Tools required by the user - Cross Head Screwdriver screw hole cover screw hole cover screw screw hole cap (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Assembly steps Remove the screw hole caps (1) from the door, and use cross screwdriver to fix... -
Page 11: Levelling Feet
2.3 Levelling feet Schematic diagram of the levelling feet ( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Adjusting procedures: Turn the feet clockwise to raise the freezer; Turn the feet counterclockwise to lower the freezer;... -
Page 12: Door Right-Left Change (Optional)
2.4 Door Right-Left Change (Optional) 1) Power off the freezer, remove all objects from the door trays. 2) Remove the screw hole caps, screws and handle then remove the plastic screw hole caps from the other side. Refer to chapter 2.2 3) Remove the upper hole cover, upper hinge cover (3), screws and upper hinge. - Page 13 the door end cover, install the hinge sleeve and door signal line to the hinge sleeve and door signal line to the other side and install the door end cover. door end cover the door stopper.sleeve pipe from the right bottom of door, insert the sleeve pipe the right bottom of door, insert the sleeve pipe into hinge hole of left bottom of door, assemble door stopper on left bottom of door.
-
Page 14: Starting
2.5 Starting • Before initial start, keep the freezer still for four hours before connecting it to power supply. • Before putting any fresh or frozen foods, the freezer shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high. -
Page 15: Structure And Functions
3 Structure and functions 3.1 Key components Shelf Door tray Shelf Shelf Drawer Twist n Serve ice Dispenser Freezer chamber The Freezer will keep food fresh for a long time and is mainly used to store frozen foods and making ice. The freezer chamber is suitable for storage of meat, fish, and many other foods not to be consumed in a short period of time. -
Page 16: Functions
3.2 Functions 1) Temperature icons 2) Super cool/freeze icon 3) Temperature setting button and Fridge/Freezer switch button. 4) Door alarm silence /standby button When the freezer power is on: All temperature icons shine within 3s after power on, for power on at the first time, the default set temperature is -20°C. - Page 17 Fridge/Freezer conversion The appliance has the ability to run as a fridge or a freezer. Press and hold the "SETTING" button for 3 seconds to switch between fridge or freezer mode. The corresponding lights will display on the control panel. Temperature Setting "SETTING"...
- Page 18 Standby Function "DOOR ALARM" Press and hold the button on the display panel for approx "Standby Mode" 10seconds to put the fridge in . Standby Mode will turn off the appliance so make sure that the freezer is empty. To get the freezer out of "Standby Mode"...
-
Page 19: Overall Cleaning
4. Maintenance and care of the appliance 4.1 Overall cleaning Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling • effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket •... -
Page 20: Trouble Shooting
5 Trouble shooting You may try to solve the following simple problems by yourself.If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is fully connected. Check whether the voltage is too low Failed operation Check whether there is a power failure or partial circuits have tripped... - Page 21 Table 1 Climate classes Class Ambient temperature range 'C Symbol Extended Temperature +10 TO +32 Temperate +16 TO +32 +16 TO +38 Subtropical +16 TO +43 Tropical Climate class and meaning: SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.
- Page 22 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 23 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
