THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

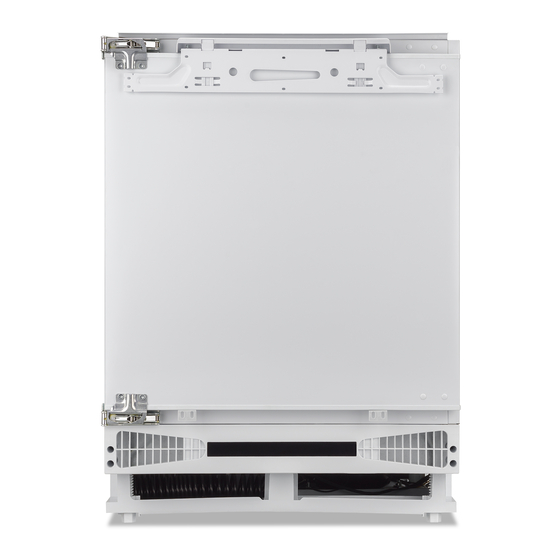

Built Under Freezer
MBUF301
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for montpellier MBUF301
Summary of Contents for montpellier MBUF301
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Built Under Freezer MBUF301 Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
- Page 3 Contents Important information Important safety and usage instructions Before first use General use of the Freezer Storage and use Controls Super freeze function Care and cleaning Defrosting the freezer Troubleshooting Installation and ventilation Mounting the fascia doors Reversing the fridge door Electrical information Changing the light bulb Climate range...
- Page 4 Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model MBUF301 Serial Number EU Declarations of Conformity This appliance has been manufactured to the strictest standards...
- Page 5 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must not be disposed of as urban waste. The refrigeration system contains insulating gases and refrigerants, which require specialised waste disposal. The valuable materials contained in this appliance can be recycled.
- Page 6 Important Safety and Usage Instructions Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products.
-
Page 7: Before First Use
Before first use You must allow the freezer to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. - Page 8 General use of the Freezer • The freezer compartments are designed to store only frozen food • Never put hot foods in the freezer, allow food to cool fully before storing them in the freezer • Follow the instructions on the food packaging for storage of frozen food.
-
Page 9: Storage And Use
Storage and use This freezer is suitable for storing deep frozen food (food which has already been frozen before being added to the freezer), for storing fresh food for a short period (2-3 weeks) by freezing it and for making ice and ice cream. Always remember to observe and adhere to the recommended expira- tion date of food. - Page 10 Controls Fig. 2 A. Freezer temperature adjustment sensor This button is used to adjust the temperature within the freezer. Press this sensor(A)once to activate adjustment, and then as many times as necessary until the desired level is selected. The settings range from 1 to super freeze ( ) with 1 being the warmest and super freeze being the coldest.
-
Page 11: Super Freeze Function
Super freeze function The 6th setting on the control panel, represented by the snowflake (Fig. 3), is a super freeze function. This should be used when freezing large quantities of food all at once. Activate this function 2 or 3 hours before introducing the food and do not leave it to run for more than necessary. -
Page 12: Defrosting The Freezer
Defrosting the freezer Do not use heaters or defrosting sprays in this appliance. Never use any metallic or sharp objects such as knives or forks to remove the ice as this could damage the lining. The freezer compartment should be defrosted regularly to ensure the most efficient running of the freezer. -
Page 13: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting guide prior to calling the Customer Care to prevent unnecessary service calls and potential cost. Contact details are on the back cover of this manual If the appliance is not working, check the following: •... - Page 14 If there is water in the freezer, check the following: • The appliance has power and the temperature control light is on Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact the Customer Care so that the seal can be replaced If excessive ice has formed in the freezer: •...
-
Page 15: Installation And Ventilation
Installation and ventilation This appliance must never be installed close to heat sources, e.g. heating elements, cookers or in damp places. • To ensure the appliance is level, you should use the height adjustable feet at the front and rear of the appliance •... - Page 16 Mounting the fascia doors Fig. 6 - Fitting the decor door bracket Remove the white decorative cover (Fig. 5) by lifting it upwards. Obtain the below measurements: Dimension B = Measure from the underside surface of kitchen unit to the bottom of fixing bracket.
- Page 17 Fig. 9 - Aligning the decor door Close the door and check the alignment with the other unit doors. Adjust the decor door by screwing or unscrewing the adjustment bolts (3) for vertical adjustment and by the help of the slots on the fixing bracket for other directions.
-
Page 18: Reversing The Freezer Door
Reversing the freezer door We recommend you seek the help of another individual to support the doors whilst performing this operation. 1. Open the door 2. Carefully prise off the white cover caps for the side that you wish to switch the hinges to 3. - Page 19 Ensuring the door seals correctly: It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal.
-
Page 20: Electrical Information
Electrical information Warning! This appliance must be earthed. Green and yellow to earth Brown to live 13A Fuse Cord Clamp Blue to Neutral Fig. 11 The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a fuse in this type of plug, follow the steps below: 1. - Page 21 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- • The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with letter (E) or by the Earth symbol or coloured GREEN and YELLOW...
-
Page 22: Changing The Light Bulb
Changing the light bulb If the LED lighting(if applicable) fails in any way, it should only be replaced by an authorised service agent. In the event of light failure within your fridge please contact the Customer Care to arrange a service visit. Climate range The information about the climate range of the appliance is provided on the rating plate. - Page 23 Attribute Symbol Value Units MBUF301 Model identification: Category of the household refrigerating appliance Voltage / Frequency 220 - 240V / 50Hz x 55 x 81.8-87 59.6 Dimensions (W x D x H cm) Mass of the appliance 220.22 Annual energy consumption kWh/year The energy consumption is based on standard test results for 24 hours.
- Page 24 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 25 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
