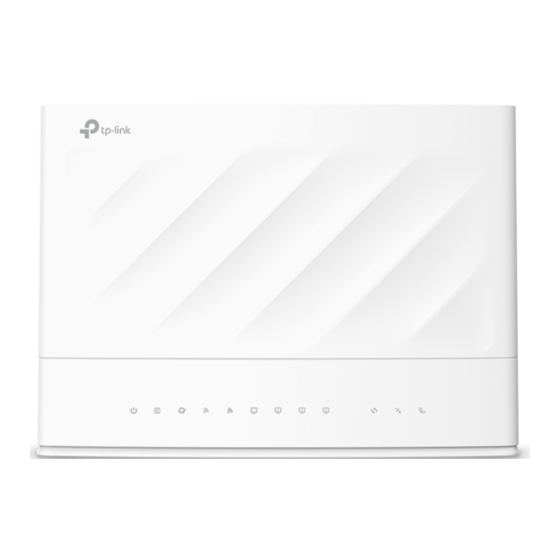

TP-Link VX230v Install Guide
Please note that your InfiNET Broadband supplied TP-Link VX230v router will come pre-configured with the
settings to allow you to simply connect the router and have Plug-n-Play internet access. If you have factory
reset your router, the following steps are required to reconfigure your TP-Link VX230v router.
1.
TP-Link VX230 LED Indicators Explained ..................................................................................................... 2
2.
TP-Link VX230 Ports Explained .................................................................................................................... 3
3.
Connecting to the TP-Link VX230v .............................................................................................................. 3
3.1
Connecting via an Ethernet Cable ....................................................................................................... 3
3.2
Connecting via Wi-Fi ............................................................................................................................ 3
4.
Accessing the administration portal ............................................................................................................ 4
5.
TP-Link VX230v Configuration ..................................................................................................................... 5
5.1
Initial set-up after factory reset ........................................................................................................... 5
5.2
Modifying/Updating Internet Connection Settings ........................................................................... 11
5.3
Modifying/Updating Wireless Settings .............................................................................................. 12
6.
Adding a TP-Link HX220 (Wireless)............................................................................................................ 13
7.
Adding a TP-Link HX220 (Ethernet) ........................................................................................................... 16
Level 15, Corporate Centre One, 2 Corporate Court, Bundall, QLD, 4217 - Ph: 1300 101 414
TP-Link VX230v Install Guide
Table of Contents
InfiNET Broadband Pty Ltd
Advertisement
Table of Contents
Related Manuals for TP-Link VX230v
Summary of Contents for TP-Link VX230v
-
Page 1: Table Of Contents
TP-Link VX230v Install Guide TP-Link VX230v Install Guide Please note that your InfiNET Broadband supplied TP-Link VX230v router will come pre-configured with the settings to allow you to simply connect the router and have Plug-n-Play internet access. If you have factory reset your router, the following steps are required to reconfigure your TP-Link VX230v router. -
Page 2: Tp-Link Vx230 Led Indicators Explained
TP-Link VX230v Install Guide 1. TP-Link VX230 LED Indicators Explained LED Indicators (Left to Right) • Power • • Internet • 2.4G • • • • • Phone • InfiNET Broadband Pty Ltd Level 15, Corporate Centre One, 2 Corporate Court, Bundall, QLD, 4217 – Ph: 1300 101 414... -
Page 3: Tp-Link Vx230 Ports Explained
3.1 Connecting via an Ethernet Cable Once the VX230v is connected successfully to power you can easily connect an Ethernet cable from the LAN ports to the Ethernet port of your computer or laptop. Please note, if using a Macbook or iMac you will need a Thunderbolt to Ethernet adapter to connect via this method 3.2 Connecting via Wi-Fi... -
Page 4: Accessing The Administration Portal
TP-Link VX230v Install Guide 4. Accessing the administration portal Once you’ve successfully connected to the VX230 via a Wi-Fi or Ethernet cable, you will be able to access the device using either of these URLs via a web-browser; • http://tplinkmodem.net •... -
Page 5: Tp-Link Vx230V Configuration
TP-Link VX230v Install Guide 5. TP-Link VX230v Configuration 5.1 Initial set-up after factory reset Once logged into the VX230 administration router portal you will be taken to the Quick Setup wizard. Select your Region and Time Zone. Once done, click the Next button Next, select your Internet Service Provider (ISP), please select the option for Other. - Page 6 InfiNET for further support. Once configured, please click Next • EWAN = Connects using the TP-Link WAN Port (Ethernet Cable) o NBN FTTP/FTTC/HFC/Opticomm/HIR technologies* • VDSL = Connects using the TP-Link DSL Port (phone cable)
- Page 7 TP-Link VX230v Install Guide Under the Wireless Settings leave this section as the default settings. Once done, click the Next button. InfiNET Broadband Pty Ltd Level 15, Corporate Centre One, 2 Corporate Court, Bundall, QLD, 4217 – Ph: 1300 101 414...
- Page 8 TP-Link VX230v Install Guide The next step is the Connection Test, this will confirm if the details you have entered as well as how the device is plugged in are correct and you are able to connect to the internet. If all goes to plan, you will get the following.
- Page 9 TP-Link VX230v Install Guide The next page will show the summary of the setup you have just completed. Please click the Next button. The next page is only required if you have purchased a VoIP Phone service through InfiNET and use the TP- Link to connect the DECT phone to.
- Page 10 TP-Link VX230v Install Guide The final screen/step is the TP-Link Cloud Service Please just click on Log In Later If you would like to sign up you are welcome to. Please note any support on this will require contacting TP-Link Support If you receive the “Failed.”...
-
Page 11: Modifying/Updating Internet Connection Settings
TP-Link VX230v Install Guide 5.2 Modifying/Updating Internet Connection Settings To check or update the TP-Link VX230 internet settings, login to the modem as shown in Section 4 of this document. Click on the Internet Tab and select EWAN or DSL depending on the technology type at your service address From the Internet Connection Type drop down, select the type required. -
Page 12: Modifying/Updating Wireless Settings
TP-Link VX230v Install Guide 5.3 Modifying/Updating Wireless Settings If you want or need to change the TP-Link VX230 wireless settings, login to the modem as shown in Section 4 of this document. Here you can change the name of the network name (SSID) and the password. -
Page 13: Adding A Tp-Link Hx220 (Wireless)
Under the Network Map tab, click on Add Mesh Device button Make sure that you have the TP-Link HX220 unit powered on and sitting close to the main TP-Link VX230 (within 1m) with the LED flashing blue. - Page 14 TP-Link VX230v Install Guide The Add more Mesh Devices pop up will appear. Following the instructions outlined Once the new TP-Link HX220 is successfully added. You can add more or click Finish InfiNET Broadband Pty Ltd Level 15, Corporate Centre One, 2 Corporate Court, Bundall, QLD, 4217 – Ph: 1300 101 414...
- Page 15 Note: Please leave the HX220 in place and powered on, for at least 2-3mins until the LED stops flashing blue and goes to a solid white. Once the TP-Link HX220 has a white LED, you can power if off and re-locate it. It...
-
Page 16: Adding A Tp-Link Hx220 (Ethernet)
Wi-Fi network and remove dead-zones. Make sure that you have the TP-Link HX220 unit powered on, with the LED flashing blue. Connect the HX220 WAN port to one of the TP-Link VX230 LAN ports using an ethernet cable. Once correctly connected, the TP- Link HX220 LED will turn solid white.
