TRONTEQ ROQSTAR Installation Manual
Managed fast ethernet switch
Hide thumbs
Also See for ROQSTAR:
- Installation manual (16 pages) ,
- Installation manual (20 pages) ,
- Installation manual (16 pages)
Table of Contents
Advertisement
Quick Links
Installation Guide
ROQSTAR
Managed Fast Ethernet Switch
Part No
006-130-102
006-130-104
006-130-109
006-130-112
Installation Guide 2023-07-04
ROQSTAR Managed Fast Ethernet Switch
Description

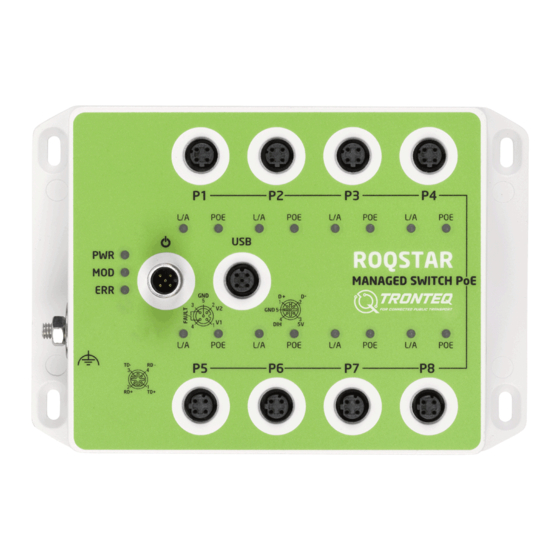

ROQSTAR Managed 8-Port Fast Ethernet Switch M12
ROQSTAR Expandable 8-Port Fast Ethernet Switch M12
ROQSTAR Managed 8-Port Fast Ethernet Switch M12 PoE
ROQSTAR Expandable 8-Port Fast Ethernet Switch M12 PoE
Page 1 of 16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TRONTEQ ROQSTAR
Summary of Contents for TRONTEQ ROQSTAR
- Page 1 ROQSTAR Managed 8-Port Fast Ethernet Switch M12 006-130-104 ROQSTAR Expandable 8-Port Fast Ethernet Switch M12 006-130-109 ROQSTAR Managed 8-Port Fast Ethernet Switch M12 PoE 006-130-112 ROQSTAR Expandable 8-Port Fast Ethernet Switch M12 PoE Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch...
- Page 2 © 2023 TRONTEQ GmbH All rights are reserved. The contents of this manual are protected by copyright. Their use is allowed as part of use of TRONTEQ GmbH products. Any other use which goes beyond in particular copying, reproduction, translation requires written consent of TRONTEQ GmbH.
-
Page 3: Table Of Contents
Warning Information System ..................... 4 Qualified Personnel ........................4 Intended Use ..........................4 Liability Limitation ........................4 Recycling ........................... 5 ROQSTAR Ethernet Switches ....................... 6 Models Described in this Manual ....................7 Interfaces ..........................8 Installation ............................9 Installation Guidelines ....................... 9 Power Port .......................... -
Page 4: Safety Instructions
Safety Instructions Information about this Operation Instructions This operating instruction describes the application of the ROQSTAR Ethernet Switches. It allows the safe and efficient handling of the product. The operating instruction is a part of the device and must be available for the users at any time. -
Page 5: Recycling
Recycling After usage, this device must be disposed in accordance with the current disposal regulations as electronic waste. Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 5 of 16... -
Page 6: Roqstar Ethernet Switches
ROQSTAR PoE Power over Ethernet (PoE) makes it possible to provide power supply through data cable to the devices, that are connected to the Ethernet Switch. All ROQSTAR PoE devices have an integrated, isolated 24V power supply for PoE. ROQSTAR Gigabit Devices with Gigabit Ethernet ports allow a data rate of up to 1000 Mbps. -
Page 7: Models Described In This Manual
Relay Output Contact, configurable • • QoS, VLAN, SNMP, LLDP, Port Mirroring, Link ○ ○ Aggregation, broadcast storm protection • • ○ ○ RSTP, NTP, DHCP, DHCP Option 82 Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 7 of 16... -
Page 8: Interfaces
Interfaces Description Description mounting holes USB port model label port LED status LED Ethernet port power port ground terminal M6 Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 8 of 16... -
Page 9: Installation
► Connect and fasten all cables Recommended torque: ► Ground terminal M6: min. 1Nm / max. 3Nm ► M12 cables: min. 0,6Nm / max. 0,8Nm ► Protection caps: 0,6Nm Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 9 of 16... -
Page 10: Power Port
Power Port The ROQSTAR device provides two power ports. For Ethernet Switch function apply power supply to V1 or V2. For PoE function the power supply must be applied to V1. V1 supplies both, Ethernet and PoE function V2 supplies Ethernet function only... -
Page 11: Start Up And Operation
Start Up and Operation A managed ROQSTAR model starts boot-up process after a valid supply voltage is applied. After boot- up process is finished, ROQSTAR Ethernet switch behaves according to configured settings. If no user configuration is saved or available, factory settings are loaded. -
Page 12: Led
Name Color Behavior Description PoE port not powered orange PoE port powered orange flashing PoE port blocked orange flashing all port V1 not supplied or internal PoE error Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 12 of 16... -
Page 13: Technical Data
Ethernet Ports (PoE) ↔ Power Port ± 2250 Ethernet Ports ↔ Chassis (ground) ± 2250 Chassis (ground) ↔ Power Port ± 850 Fault Contact ↔ Power/Ethernet/Chassis ± 850 Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 13 of 16... -
Page 14: Data Transfer
VLAN Tag | VLAN Tag 1518 / 1522 Byte Fault Contact Parameter min. typ. max. Dimension Switching Current Switching Voltage Startup Time Model min. typ. max. Dimension Managed sec. Expandable sec. Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 14 of 16... -
Page 15: Mechanical
► EN 61000-4-4 ► EN 61000-4-5 ► EN 61000-4-6 ► Specific applications ► EN 50155 ► EN 61131-2 ► UNECE (E1) R10 ► UNECE (E1) R118 ► ITxPT Label Installation Guide 2023-07-04 ROQSTAR Managed Fast Ethernet Switch Page 15 of 16... -
Page 16: Order Numbers
Please contact our sales team at sales@tronteq.com for further inquiries and questions regarding our products. Technical support Please contact our support team at support@tronteq.com if you have any technical questions or if you need technical training. TRONTEQ GmbH HOELZLESTR. 3...
