- Page 1 DV477IP DV477IP2 DV47IP7IP3 DV47IP7IP4 ELRO Home Safe Manual IP VIDEO DOOR INTERCOM WITH 7"(18cm) MONITOR DV477IP-Series Home is not a place, it’s a feeling DV477IP-Series Manual EN Version 5...
-
Page 2: Table Of Contents
Second monitor DV477W-M ...................- 11 - Additional call button .....................- 11 - Potential-free contacts 7 & 8 ..................- 11 - Downloaden ELRO Home Safe app iOS ................- 12 - Downloaden ELRO Home Safe app Android ..............- 13 - De intercom koppelen iOS ....................- 14 - De intercom koppelen Android ..................- 15 -... -
Page 3: Introduction
• With the free ELRO Home Safe app on your smartphone, you can talk to a visitor, take a photo/video and you can even remotely control the electric door opener. •... -
Page 4: Package Contents

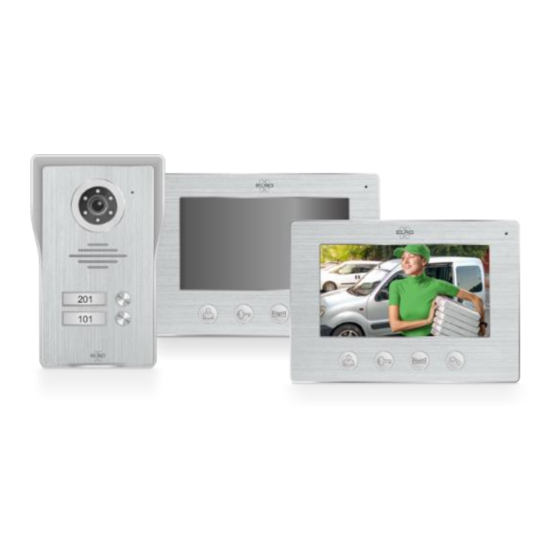

2. Package contents 1. Outdoor unit with pushers and camera Rain shelter 3. Monitor Connection cable length 15 m 5. Connection cable Adapter with 1.75 m cord 7. Mounting bracket Connection cable for electric door opener 9. Screws, plugs and allen wrench - 3 -... -
Page 5: Mounting Outdoor Unit
3. Mounting outdoor unit • Remove the outdoor unit (1) from the rain-sun shade and use it to mark drill holes for mounting on the wall (2). • The shade must be mounted flush with the entire rear side of the wall/wall. •... -
Page 6: Mounting The Monitor
• We recommend a mounting height (4) between 1,35 and 1,70 meters. • Try to avoid direct exposure to sunlight. • Plug the connection cables into the respective slots (5). • After mounting, the angle of view of the camera can be corrected if necessary. -
Page 7: Control Regulators
4.1 Control Regulators The following controls are located on the side of the monitor: • Ringer volume (5), adjustable in 3 steps. • Menu setting (6) • Brightness (7), controls the image from bright to dark. • Chroma (8), which controls the intensity from color to black and white. •... -
Page 8: Monitor Menu
When a visitor logs on, the monitor switches on automatically. Press this key to start a call. Press again to end the call, the monitor automatically turns off. 4.3 Monitor menu Press the menu setting button on the side of the monitor for 4 seconds. Use the function keys (described above) to navigate through the menu. -
Page 9: Wiring Diagrams
5. Wiring diagrams DV477IP DV477IP2 - 8 -... - Page 10 DV477IP3 - 9 -...
- Page 11 DV477IP4 - 10 -...
-
Page 12: Second Monitor Dv477W-M
5.1 Second monitor DV477W-M It is possible to connect a second monitor to the existing one, see the diagram below. This monitor comes with 15 metres of connecting cable, mounting and a power supply adapter. Please note that this second monitor should not be mounted more than 25 metres away from the outdoor unit. -
Page 13: Downloaden Elro Home Safe App Ios
6. Downloaden ELRO Home Safe app iOS The e-mail address is your account. The account holder in the app is also "Home owner" Make a note of the password that you create for this account, this will be asked for when you log in again. -
Page 14: Downloaden Elro Home Safe App Android
7. Downloaden ELRO Home Safe app Android Make a note of the The e-mail address password that you create is your account. for this account, this will be The account holder asked for when you in the app is also log in again. -
Page 15: De Intercom Koppelen Ios
8. De intercom koppelen iOS - 14 -... -
Page 16: De Intercom Koppelen Android
9. De intercom koppelen Android - 15 -... -
Page 17: Icon Explanations
10. Icon explanations 1 step back To settings WiFi signal intercom/router Speaker off Speaker on Microphone off Microphone on Full screen Back to normal screen Take a photo Take a video Electric door opener Electric gate opener Photo and video playback Alarm (android smartphone) Alarm (iOS smartphone) Home (linked devices in your app) -
Page 18: Sharing The Intercom
11. Sharing the intercom To share the intercom system, you must identify yourself in the app via "Profile" with a nickname and in "Location management" you must enter a name location. For example, you can use your home address for this purpose. As an account holder, you are automatically ""Homeowner""... -
Page 19: Add Member
Clarification of family role Administrator - Manage device, room, smart settings and member. Common member - Use device and smart setting. 11.2 Accept invitation Jane Doe receives an invitation on her smartphone to use the installation of intercom DV477IP - 18 -... -
Page 20: Delete Intercom
12. Delete intercom In the app, go to "Home" and select the intercom, hold your finger on the image, a window opens, the intercom can be deleted. • This can only be performed by the Account holder and an Administrator. 13. -
Page 21: Safety Instructions
Use the supplied cables. 15. Declaration of Conformity DoC I, ELRO Europe, hereby declare that the type of radio equipment DV477IP complies with Directive 2014/53/EU. The full text of the EU declaration of conformity can be consulted at the following internet address: www.elro.eu/compliance".
