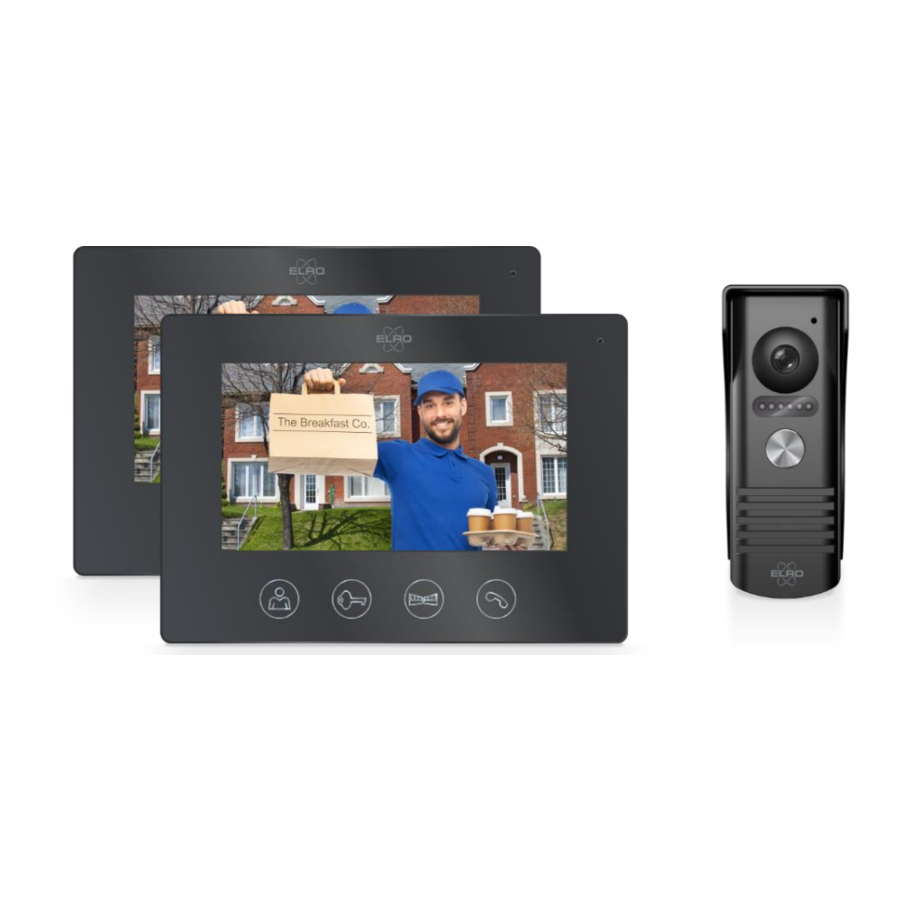

- Page 1 Manual IP VIDEO DOOR INTERCOM 1 DOORPUSH - 1 X 18cm MONITOR DV50_P1M1 1 DOORPUSH - 2 X 18cm MONITOR DV50_P1M2 Home is not a place, it’s a feeling DV50-Series Manual EN Version 5...
-
Page 2: Table Of Contents
Connection of electric door opener and gate opener ............- 5 - Second monitor connection (DV50-P1M2) ................- 6 - Extend cable at your own risk ....................- 6 - ELRO Intercom app ........................ - 7 - Pairing the app........................- 7 - Choose "Smart Config"......................- 7 - Or choose "QR Code way". -
Page 3: Introduction
2 short cables with a plug are supplied for the connection of an electric door opener and an electric gate opener via the monitor. • With the free ELRO Intercom application on your smartphone you can talk to a visitor, take a photo/video and you can even remotely control the electric door opener. 2. Package contents 3. - Page 4 • Finally, the rubber sealing cap can be placed back. • The slanted corner mounting cannot be used in combination with the sun/rain hood and should not be exposed to rain. The angled corner assembly is only suitable for indoors or under a canopy.
-
Page 5: Mounting And Connecting The Monitor
4. Mounting and connecting the monitor • The WiFi monitor (1) must be mounted within the range of your WiFi. The connecting cable from the outdoor unit to the WiFi monitor is 15 meters, please take this into account when positioning the monitor. -
Page 6: Monitor Functions
4.2 Monitor functions This button allows you to "look outside" at any time. The monitor switches off automatically after 40 seconds. If you want to stop prematurely, press the button with the receiver twice.. This allows you to switch an electric door opener. This is a potential free switching contact, the system provides no voltage for the electric door opener. -
Page 7: Second Monitor Connection (Dv50-P1M2)
4.4 Second monitor connection (DV50-P1M2) The second monitor must be connected to the WiFi monitor with the cable (equipped with a plug on both sides) to "J11 INDOOR OUT". The cable should be connected to the second monitor at "J3 OUTDOOR IN". On the last monitor in a series, in this case the second, the small white switch 1 should be in the ON position. -
Page 8: Elro Intercom App
• The intercom system only works on 2.4 Ghz. • Download the ELRO Intercom app, go to: Google Play Store for Android or Apple App Store for iOS • You will be asked for permission to access your smartphone (1). - Page 9 - 8 -...
-
Page 10: Or Choose "Qr Code Way
6.2 Or choose "QR Code way". • Now scan with the camera of the outdoor unit the QR Code that is visible on your smartphone. • When the device is found, tick it (8) and press add. • The device has been added and is coming "Online". Press (9), change and repeat to confirm the password to a personal password. -
Page 11: Sharing The App With Equal Rights
8. Sharing the app with equal rights The app can be shared for example with family or visitors/guests. The guest user must be in the WiFi environment of the main user and download the app to his smartphone, see the print screens on page 8. -
Page 12: Removing Device
• Press the added device (3), you will now be asked for the password (4) of the main user. Note With limited rights there is no access via configuration to advanced settings. Removing device • Removing a device from the app is very easy. -
Page 13: Reset
10. Reset If the pairing of the ELRO Intercom app fails and you are convinced that you are using the correct WiFi signal (2.4Ghz) with associated password, it is recommended to reset the monitor. Proceed as follows: Press the key with the key for at least 5 seconds, the monitor will start the reset procedure. -
Page 14: Safety Instructions
Use the supplied cables. Declaration of Conformity DoC I, ELRO Europe, hereby declare that the type of radio equipment DV50 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity can be consulted at the following internet address: www.elro.eu/compliance".
