Summary of Contents for ELRO DV477W

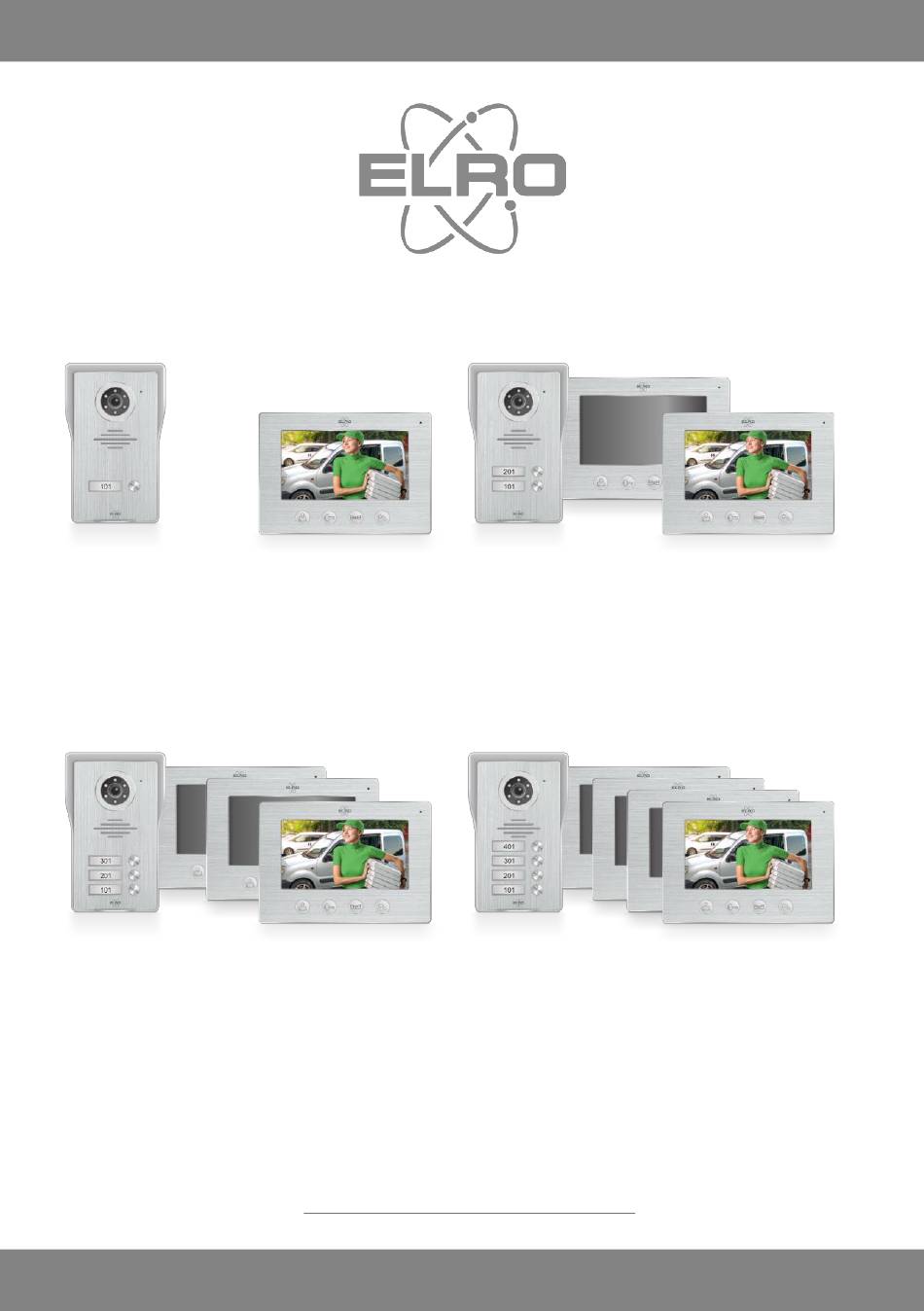

- Page 1 DV477W DV477W2 DV477W3 DV477W4 MANUAL VIDEO DOOR INTERCOM WITH 7"(18cm) MONITOR DV477W-Series Home is not a place, it’s a feeling DV477W-Series Manual EN Version 8...
-
Page 2: Table Of Contents
4.2 Functions of the monitor ................- 6 - Wiring diagrams ..................- 7 - 5.1 Second monitor DV477W-M ..............- 10 - 5.2 Extra bell push ................... - 10 - 5.3 Potential free contacts 7 & 8 ..............- 10 - Specifications .................... -
Page 3: Introduction
Please note that in this case, the outside door only gives access to a common room / staircase and not directly the access to your home. • A built-in box (ELRO DV47EB) is available as an accessory via www.elro.eu or via the retailer where you purchased this set. - 2 -... -
Page 4: Package Contents

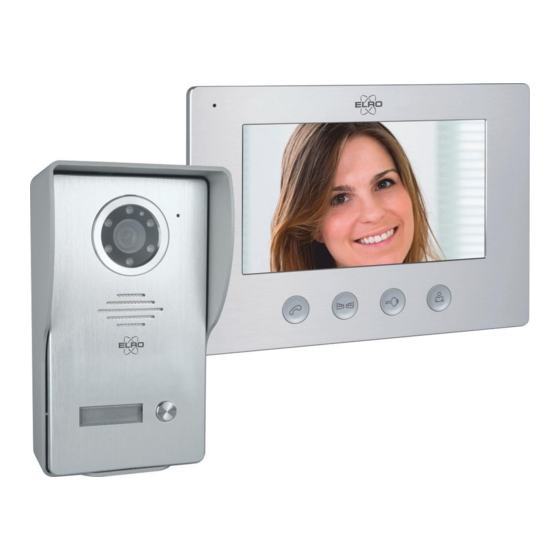

2. Package contents 1. Outdoor unit with bell pushers and camera 2. Rain shelter 3. Monitor 4. Connection cable length 15 m 5. Connection cable 6. Adapter with 1.75 m cord 7. Mounting bracket 8. Connection cable for electric door opener 9. -
Page 5: Mounting Outdoor Unit
3. Mounting outdoor unit • Remove the outdoor unit (1) from the rain-sun shade and use it to mark drill holes for mounting on the wall (2). • The shade must be mounted flush with the entire rear side of the wall/wall. •... -
Page 6: Mounting The Monitor
• We recommend a mounting height (4) between 1,35 and 1,70 meters. • Try to avoid direct exposure to sunlight. • Plug the connection cables into the respective slots (5). • After mounting, the angle of view of the camera can be corrected if necessary. -
Page 7: Control Regulators
• The mounting bracket provides exactly the space to connect the 4 core connection cable (2) between the monitor and bracket. Press (3) to open the clamp contact: - 1 brown = Audio - 2 green = Ground - 3 black = Video - 4 blue = Power... -
Page 8: Wiring Diagrams
5. Wiring diagrams DV477W DV477W2 - 7 -... - Page 9 DV477W3 - 8 -...
- Page 10 DV477W4 - 9 -...
-
Page 11: Second Monitor Dv477W-M
5.1 Second monitor DV477W-M It is possible to connect a second monitor to the existing monitor, see the diagram below. This monitor is supplied with 15 meter connection cable, mounting and an adapter for the power supply. Please note that this second monitor should not be mounted more than 25 meters away from the outdoor unit. -
Page 12: Specifications
6. Specifications MONITOR Resolution 800(H)*3RGB*480(V) Size 18 cm (7") Observation time 40 seconds Talk time 120 seconds Power Consumption In rest ≤ 4.5W, Operating State ≤ 9.5W Adapter Input AC100-240V Output DC12V, 2A, 24W Cable length 15 m; 4 x 0,2 mm Dimensions 214 x 152 x 17 mm Number of ringtones... -
Page 13: Symbols
Protect the environment and human health, use natural resources responsibly! Read the manual before use and keep it in a safe place for future use and maintenance. Guarantee visit www.elro.eu ELRO Europe | www.elro.eu Postbus 9607 - Box E800 1006 GC Amsterdam - The Netherlands - 12 -...
