Summary of Contents for Bartscher 7450 2E

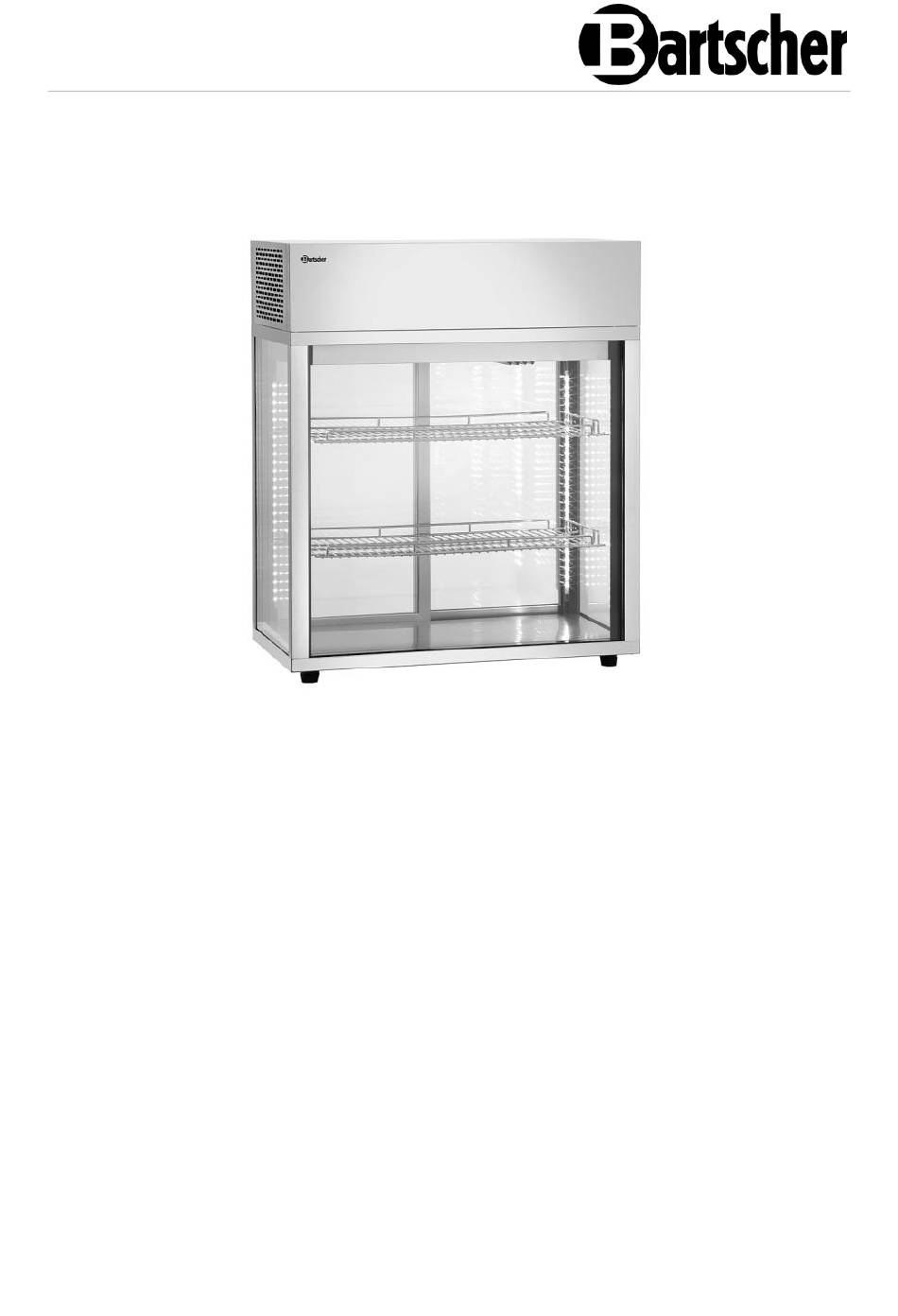

- Page 1 7450 2E 700221...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-02-24...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Children aged 3 to 8 may load and unload the refrigerator. Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling of suitable food products and hors-d’oeuvres in suitable containers, on plates, etc. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Cooling top unit 7450 2E 700221 Art. No.: Material: glass, stainless steel, aluminium Volume, in l: Temperature range, min.–max., in °C: 0 - 12 Cooling: circulating air Coolant, amount in kg: R290 / 0,056 kg... -
Page 12: Functions Of The Appliance
• Insulation: cyclopentane C5H10 More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2024, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. Functions of the Appliance Suitable food products or hors-d’oeuvres in containers, on plates, in bowls, etc. -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Housing 2. Digital temperature regulator 3. Control elements cover 4. ON/OFF switch with integrated power indicator light (green) 5. Ventilation openings 6. Ventilation openings 7. Fan 8. Side glass pane (2 pcs) 9. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Operation
Installation and operation • If the appliance is to be relocated, follow the instructions below: – switch the appliance off; – disconnect the plug from the socket; – take out contents of the appliance; – tape firmly all loose elements in the internal chamber and tape the door; –... - Page 16 Installation and operation 3. Introduce the shelves into the appliance at the selected height. 4. Close the sliding doors at server side. 5. Plug the appliance into a suitable single socket. 6. Preliminary cool the cooling top unit, using the factory set default values. NOTE! Place the prepared food products only after the appropriate cooling capacity has been reached.
- Page 17 Installation and operation LCD defrosting indicator This indicator is lit over defrosting process; goes off when the defrosting process is completed, and flashes during defrost delay. Temperature Setting The optimum temperature setting is factory default and it equals the operating temperature of 0–12°C inside the cooling top unit.
-
Page 18: Cleaning
Cleaning Automatic Defrosting The appliance defrosts automatically 4 times over a 24-hour period. Initiation of Manual Defrosting/Finishing Defrosting Process If cooling efficiency drops, e.g. after a prolonged period opening door, manual defrosting is required. 1. Press the button and hold it pressed for 6 seconds, to initiate defrosting or finish this process. -
Page 19: Cleaning
Cleaning • Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp or pointed implements may damage the appliance, and when in contact with live parts, they may cause electric shock. • For cleaning, do not use any scouring agents that contain solvents nor corrosive cleaning agents. -
Page 20: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 21 Possible Malfunctions Error Possible Cause Solution No cooling The plug is not connected to Insert the plug correctly the mains socket Damaged power circuit fuse Check the electric power supply No power supply Check the electric power supply Damaged temperature Contact our service controller company...
-
Page 22: Disposal
Disposal The following phenomena are not malfunctions: 1. Sound of water flowing. The sound is heard during normal use. This is a sound of coolant flowing through the installation. 2. Water vapour condensation on internal glass components in high air humidity conditions is a normal occurrence.
