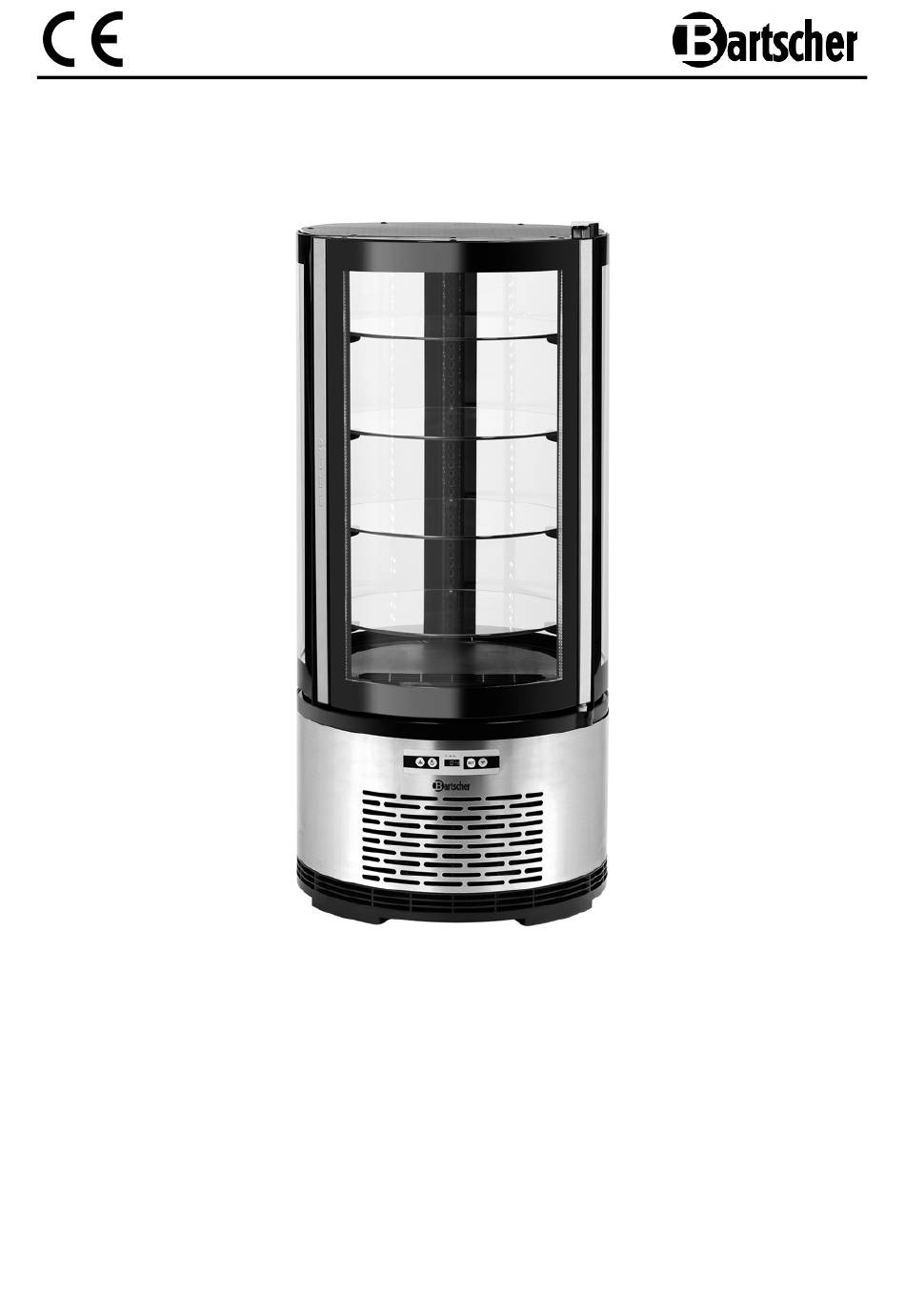

- Page 1 100L 700213G Original-Gebrauchsanleitung V1/0316...
-
Page 2: Table Of Contents
5. Installation and operation ..................28 5.1 Positioning and connection ................... 28 5.2 Operation ......................30 6. Cleaning ........................33 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • This device may only be operated in technically proper and safe condition. • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 5 • The supply cable must be disconnected from the socket only by pulling the plug. • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 6: Key To Symbols
• Do not store the explosive objects in the device, like cans with explosive work substances. • Do not allow for the cooling circuit damages. 1.2 Key to symbols In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. -
Page 7: Proper Use
1.3 Proper use CAUTION! The device has been designed and manufactured for the industrial use and should be operated only by the qualified personnel of the restaurants, canteens and similar places. The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts Housing Control panel Glass shelf bracket with a pad Base Rotatable glass shelf (4) Ventilation holes Glass door Feet LED Lighting strip (2) - 27 -... -
Page 11: Technical Specification
4.2 Technical specification Cake display show-case 100L Name 700213G Code-No.: Design: LED lighting, individually switchable forced air cooling with 1 fan automatic defrost function, condensation water evaporation electronic control, digital display 1 glass door, hinged on the right (no possibility to... - Page 12 • Never place the device on the flammable surfaces. • In order to avoid the compressor damages do not tilt the device during positioning or transport by more than 45° . • Do not place the device in the vicinity of open fire, electric ovens, heating furnaces, or other heat sources like direct sunlight.
-
Page 13: Operation
5.2 Operation Preparation of the device • Clean the device thoroughly after unpacking and before connection, following the instruction in section 6 „Cleaning“. • Mount the glass shelf brackets on the desired height. Place the glass shelves on the installed brackets. Follow the instructions in section „Glass shelves“. Close the glass door of the device. - Page 14 LED Indicators LED cooling indicator This indicator comes on when the cooling device is active, goes off when the desired internal temperature is reached, and flashes during delays LED defrost indicator This indicator comes on during defrosting, goes off when the defrost process is complete and flashes during extended defrost.
- Page 15 Automatic defrost The device’s automatic defrost cycle runs 4 times every 24 hours. Manual defrost If you wish to defrost the device outside its automatic defrost cycle, press and hold the button for 6 seconds. The LED defrost indicator will come on and will flash until the defrost cycle is complete. The LED defrost indicator will go off and the next defrost cycle will begin in 6 hours.
-
Page 16: Cleaning
Cooling cakes • The forced air cooling system with a fan ensures that the temperature inside the cake display is evenly distributed on all levels. • When the set temperature has been reached inside the device, the LED cooling indicator goes off and the device is ready to hold cakes, layer cakes, snacks etc. •... - Page 17 o Remove the glass shelves from the cake display showcase and clean them thoroughly with a soft cloth and a disinfectant appropriate for food service applications. After cleaning the glass shelves, rinse them in clean water and then dry thoroughly. o Clean the interior and exterior of the cake display showcase regularly using an appropriate mild cleaning agent and a soft cloth.
-
Page 18: Possible Malfunctions
7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Malfunction Cause Solution •... -
Page 19: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
