Summary of Contents for Bartscher 700378G

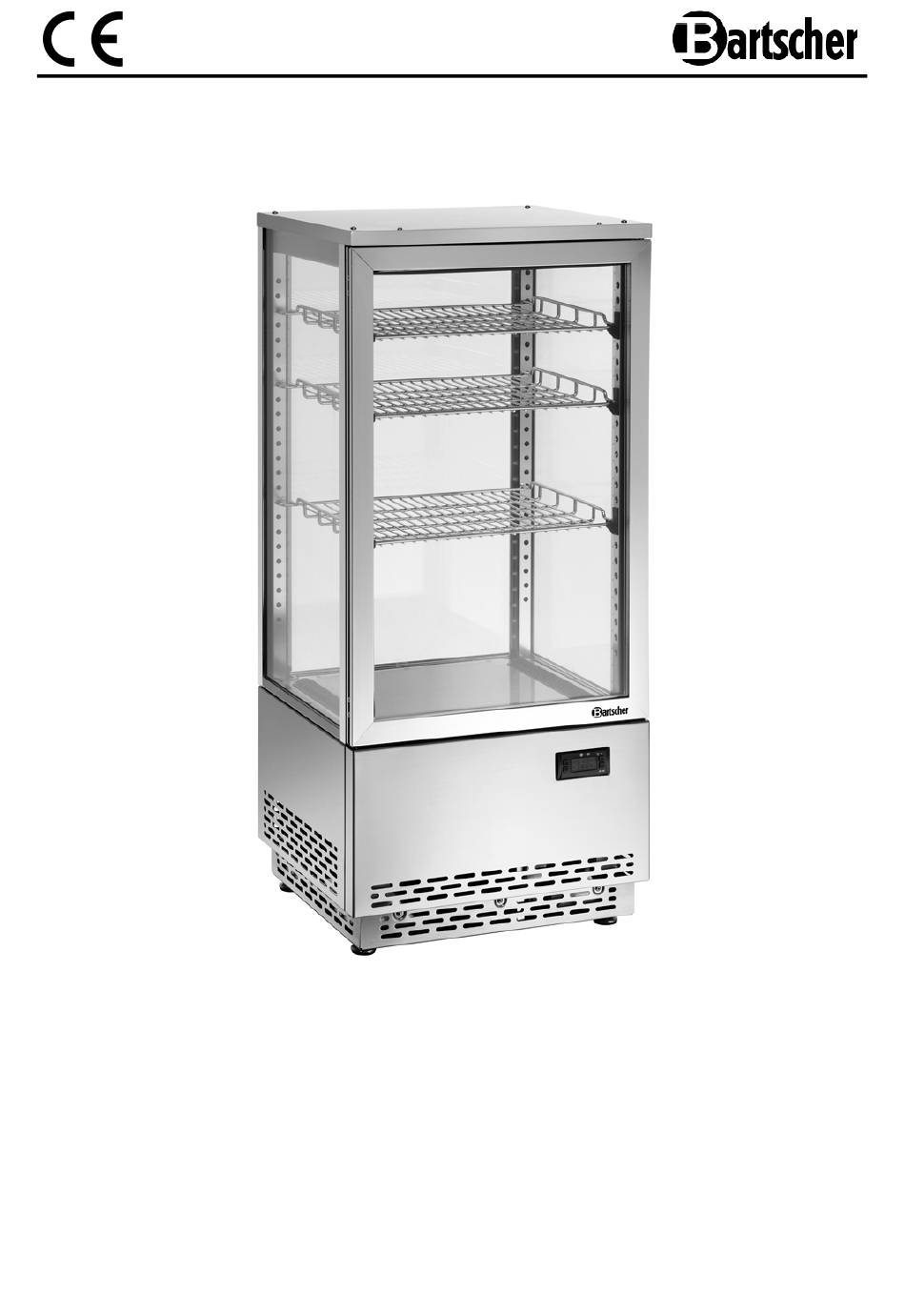

- Page 1 700378G V1/1213...
-
Page 2: Table Of Contents
6. Cleaning and maintenance ..................29 6.1 Safety advice ....................... 29 6.2 Cleaning ......................30 6.3 Safety instructions for maintenance ..............30 7. Possible Malfunctions .................... 31 8. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
o Children should not play with the device. o Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision. o Children under the age of 8 years old must be kept away from the device and its power cord. -
Page 7: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data

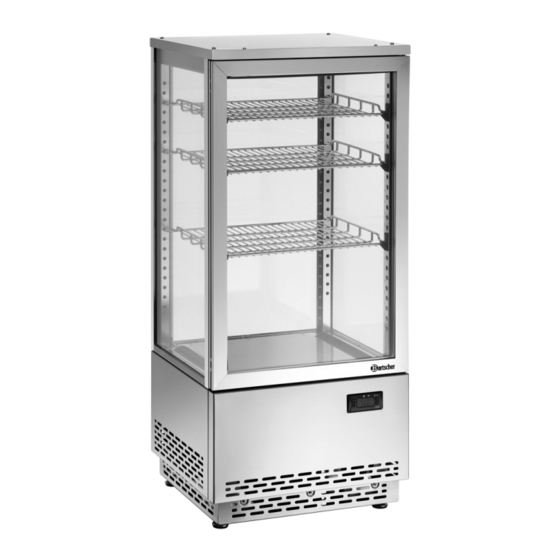

4. Technical data 4.1 Overview of parts ① ⑧ ② ⑧ ⑦ ③ ⑥ ⑤ ④ ① Glass pane frame ② Grid (3) ③ Digital temperature regulator ④ Height adjustable feet (4) ⑤ Ventilation ducts ⑥ Lower housing ⑦ Glass door ⑧... - Page 9 Grids Grid height can be fully adjusted to the height of stored products. Follow the instructions below to place grids at the desired height. Grid guides Grid bracket 1. Place the grid brackets in the front guides at the desired height. 2.
-
Page 10: Technical Specification
4.2 Technical specification Name Mini Cooler 78L, silver 700378G Code-No.: Material: Chrome nickel steel Coolant: R600a Temperature range: 4 ° C – 12 ° C Capacity: 78 litres Power: 0.18 kW / 220-240 V 50 Hz Dimensions: W 430 x D 390 x H 986 mm Weight: 45.5 kg... -
Page 11: Installation And Connection
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires. • Do not move or tilt the device when in operation. -
Page 12: Operation
• After a power failure or removal of the plug, leave the device unconnected for at least 5 minutes. • The electrical circuit must be secured to a minimum of 16A. Only connect the device to a wall socket, do not use splitters or power strips. •... - Page 13 LED indicators LED cooling indicator This indicator shines when the compressor is active, goes off when the desired temperature has been reached and flashes during a delay LED defrost indicator This indicator shines during the defrost process, goes off when the defrost process is finished and flashes during extended defrost.
-
Page 14: Cleaning And Maintenance
The LED defrost indicator will come on and will flash until the end of the defrost process. After defrost has finished, the LED defrost indicator will go off and the next defrost cycle will begin in 6 hours. • If the device is to remain unused for a longer time, remove its plug from the socket. -
Page 15: Cleaning
6.2 Cleaning o Regularly clean the Mini Cooler. o Remove the grids and wash them with a mild cleaning agent and soft cloth. o Wash the interior and exterior of the Mini Cooler with warm water, a soft cloth and mild cleaning agent. -
Page 16: Possible Malfunctions
7. Possible Malfunctions Problem Cause Solution • Plug not connected to • Connect the plug properly. socket. No cooling • Defective fuse. • Check the power supply. effect at all. • Power breakdown. • Check the power supply. • Direct sunlight or heat •... -
Page 17: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
