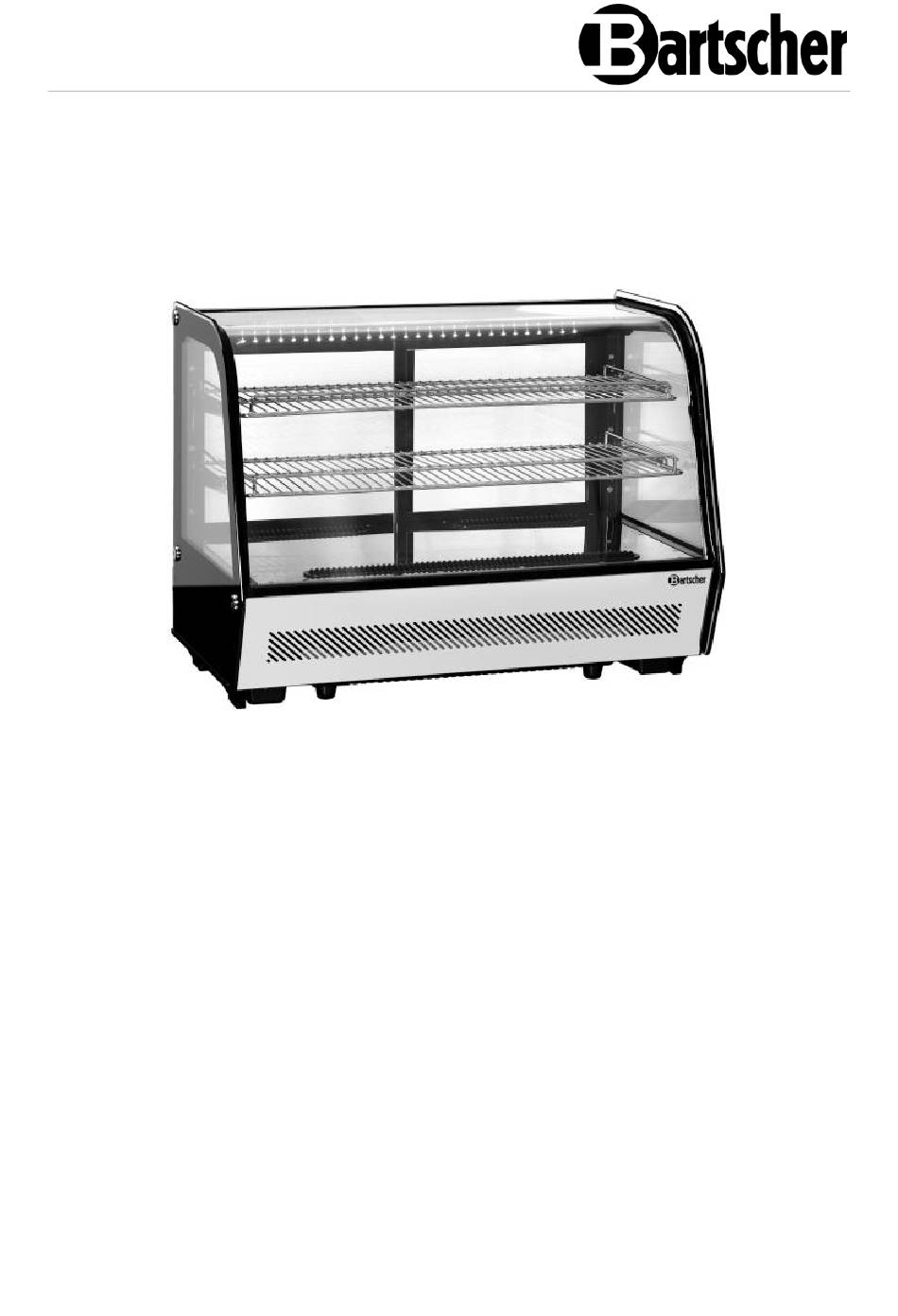

- Page 1 Bartscher DeliCool II - DeliCool II-D - DeliCool III 700202G - 700208G - 700203G...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 3.0 Date of preparation: 2020-03-20...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of signal words ..............2 Safety instructions..................3 Intended use .................... 6 Unintended use ..................6 General information ..................7 Liability and warranty ................7 Copyright protection ................. 7 Declaration of conformity ................. 7 Transport, packaging and storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Inc orrect operati on of the applianc e may c ause fire or explosi on haz ard due to igniti on of its content. Fire hazard / flammable materials hazard / explosion hazard! •...
- Page 7 Safety Operating personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling of suitable food products and hors-d’oeuvres in suitable containers, on plates, etc. -
Page 9: General Information
General information General information Liability and warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, packaging and storage Transport, packaging and storage Delivery check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical data Technical data Technical specifications Version / Characteristics of Refrigerated Displays • Front pane: rounded, cased / framed • Type of glazing: – Double glazing – All-round glazing • Safety glass • Door type: sliding door • Position of sliding doors: –... - Page 12 Technical data Cooling top unit Name: Bartscher DeliCool II 700202G Art. No.: Material: Plastic, glass Volume, in l: Temperature range, min.–max., in °C: 2 - 12 Amount of coolant, in kg: R600a / 0,050 Climate class: Number of shelves: Top shelf (W x D), in mm:...
-
Page 13: Functions Of The Appliance
Technical data Cooling top unit Name: Bartscher DeliCool III 700203G Art. No.: Material: Plastic, glass Volume, in l: Temperature range, min.–max., in °C: 2 - 12 Amount of coolant, in kg: R600a / 0,065 Climate class: Number of shelves: Top shelf (W x D), in mm:... -
Page 14: List Of Components Of The Appliance
Technical data List of components of the appliance 700202G / 700203G 1. LED lighting strip 2. Rear side sliding door (2 pcs) 3. Shelves (2 pcs) 4. Air outlet vents 5. Air inlet vents 6. Bottom baseplate 7. Feet (4 pcs) 8. - Page 15 Technical data 700208G 1. Front side sliding door (2 pcs) 2. Rear side sliding door (2 pcs) 3. Shelves (2 pcs) 4. Air outlet vents 5. Bottom baseplate 6. Air inlet vents 7. LED lighting strip 8. Feet (4x) 9. Ventilation openings 10.
-
Page 16: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 17: Operation
Installation and operation • If the appliance is to be relocated, follow the instructions below: – switch the appliance off; – disconnect the plug from the socket; – take out contents of the appliance; – tape firmly all loose elements in the internal chamber and tape the door; –... - Page 18 Installation and operation 3. Introduce the shelves into the appliance at the selected height. 4. Close the rear side (and front side) sliding doors of the appliance. 5. Connect the power cord to the appliance socket at the rear side of the appliance.
- Page 19 Installation and operation • Przed pier wsz ym uż yciem wycz yś cić urządz eni e i wypos ażenie zgodni e z e ws kazówkami z awartymi w pu nkcie 6 „Cz yszczen ie” . M ake s ure no water enters elec tric ins tall ati on and connection box. N as tępni e dokładni e os usz yć urz ądzenie i elementy wyposaż enia. •...
- Page 20 Installation and operation Temperature setting The optimum default temperature values are factory-set and are 2 °C (lower control limit) and 6 °C (upper control limit). The settings coincide with operating temperatures of the Cooling top unit of 2 °C – 12 °C.
-
Page 21: Cleaning
Cleaning Cleaning Safety Instructions for cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 22: Possible Malfunctions
Possible malfunctions Possible malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution Insufficient cooling Direct sunlight or heat Move the Cooling top unit efficiency sources in immediate... - Page 23 Possible malfunctions Error Possible Cause Solution No cooling The plug is not connected to Insert the plug correctly the mains socket Damaged power circuit fuse Check the electric power supply No power supply Check the electric power supply Damaged temperature Contact our service controller company...
-
Page 24: Disposal
Disposal The following phenomena are not malfunctions: 1. Sound of water flowing. The sound is heard during normal use. This is a sound of coolant flowing through the installation. 2. Water vapour condensation on internal glass components in high air humidity conditions is a normal occurrence.
