Grove - Circular LED

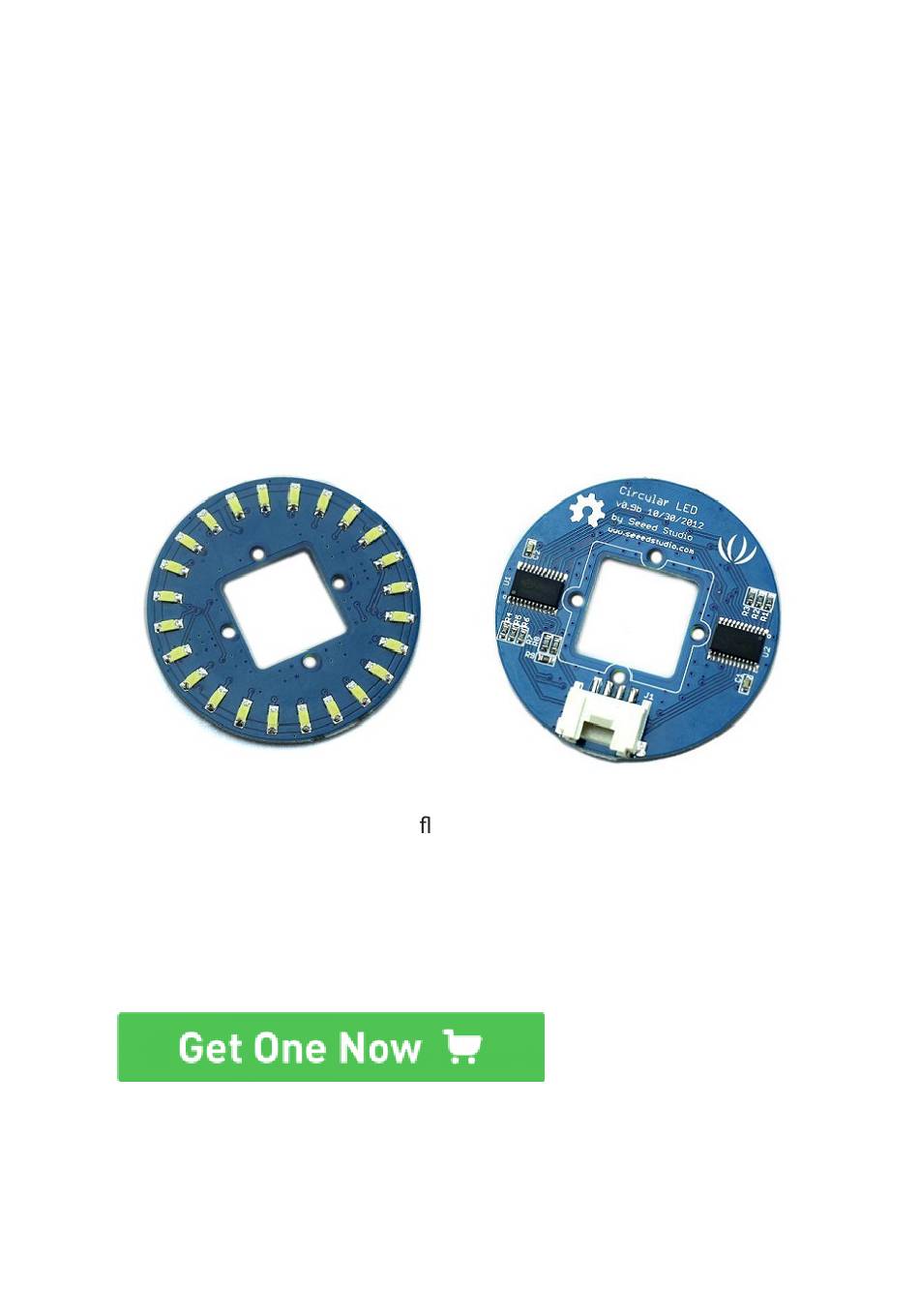

This is a unique ring– it has a orid body with 24 controllable LEDs.
Maybe it will drive the inspiration out of you to make a glowing
magic ring! There is a 1*1 square hollow-out in the middle of this
module, where you can place a Grove Encoder in and make it a
rotary visual encoder!
[https://www.seeedstudio.com/Grove-Circular-LED-p-1353.html]
https://wiki.seeedstudio.com/Grove-Circular_LED/
Grove - Circular LED - Seeed Wiki
1/12

Advertisement

loading
Need help?

Need help?

Do you have a question about the Grove and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seeed Grove

Summary of Contents for Seeed Grove

  • Page 1 Maybe it will drive the inspiration out of you to make a glowing magic ring! There is a 1*1 square hollow-out in the middle of this module, where you can place a Grove Encoder in and make it a rotary visual encoder! [https://www.seeedstudio.com/Grove-Circular-LED-p-1353.html]...

  • Page 2: Speci Cation

    7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki Features Circular shape 24 LEDs, about 5.5 mA drive current for each channel. Controllable LEDs with orid effects Grove Interface. Schematic Speci cation https://wiki.seeedstudio.com/Grove-Circular_LED/ 2/12...
  • Page 3 7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki Item Typical Unit Voltage Current 5.5 for each Dimension Ring Form:4.5 diameter Net Weight Interface https://wiki.seeedstudio.com/Grove-Circular_LED/ 3/12...

  • Page 4: Getting Started

    7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki Getting Started Materials required https://wiki.seeedstudio.com/Grove-Circular_LED/ 4/12...
  • Page 5 If you are not sure about the wire you have, you can click here [https://www.seeedstudio.com/Micro-USB-Cable-48cm-p-1475.html] to buy 2 Each Grove module comes with a Grove cable when you buy. In case you lose the Grove cable, you can click here [https://www.seeedstudio.com/Grove-Universal-4-Pin-Buckled-20cm- Cable-%285-PCs-pack%29-p-936.html] to buy.
  • Page 6 7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki Hardware Connection Step 1. Connect the Grove - Circular LED with the D6 port of the Base Shield. Step 2. Plug Grove - Base Shield into Seeeduino. Step 3. Connect Seeeduino to PC via a USB cable.
  • Page 7 Play with Codecraft Hardware Step 1. Connect a Grove - Circular LED to port D5 of a Base Shield. Step 2. Plug the Base Shield to your Seeeduino/Arduino. Step 3. Link Seeeduino/Arduino to your PC via an USB cable.
  • Page 8 7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki Step 1. Open Codecraft [https://ide.chmakered.com/], add Arduino support, and drag a main procedure to working area.  Note If this is your rst time using Codecraft, see also Guide for Codecraft using Arduino [https://wiki.seeedstudio.com/Guide_for_Codecraft_using_Arduino/].
  • Page 9 7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki https://wiki.seeedstudio.com/Grove-Circular_LED/ 9/12...
  • Page 10 7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki Upload the program to your Arduino/Seeeduino.  Success When the code nishes uploaded, you will see the LED run in the circular. Schematic Online Viewer https://wiki.seeedstudio.com/Grove-Circular_LED/ 10/12...
  • Page 11 7/24/22, 10:33 AM Grove - Circular LED - Seeed Wiki Source CircularLED Library [https://github.com/Seeed- Studio/Grove_LED_Bar] Grove Circular LED schematics PDF File [https:// les.seeedstudio.com/wiki/Grove- Circular_LED/res/Circular_LED_v0.9b.pdf] https://wiki.seeedstudio.com/Grove-Circular_LED/ 11/12...
