7/23/22, 9:41 PM

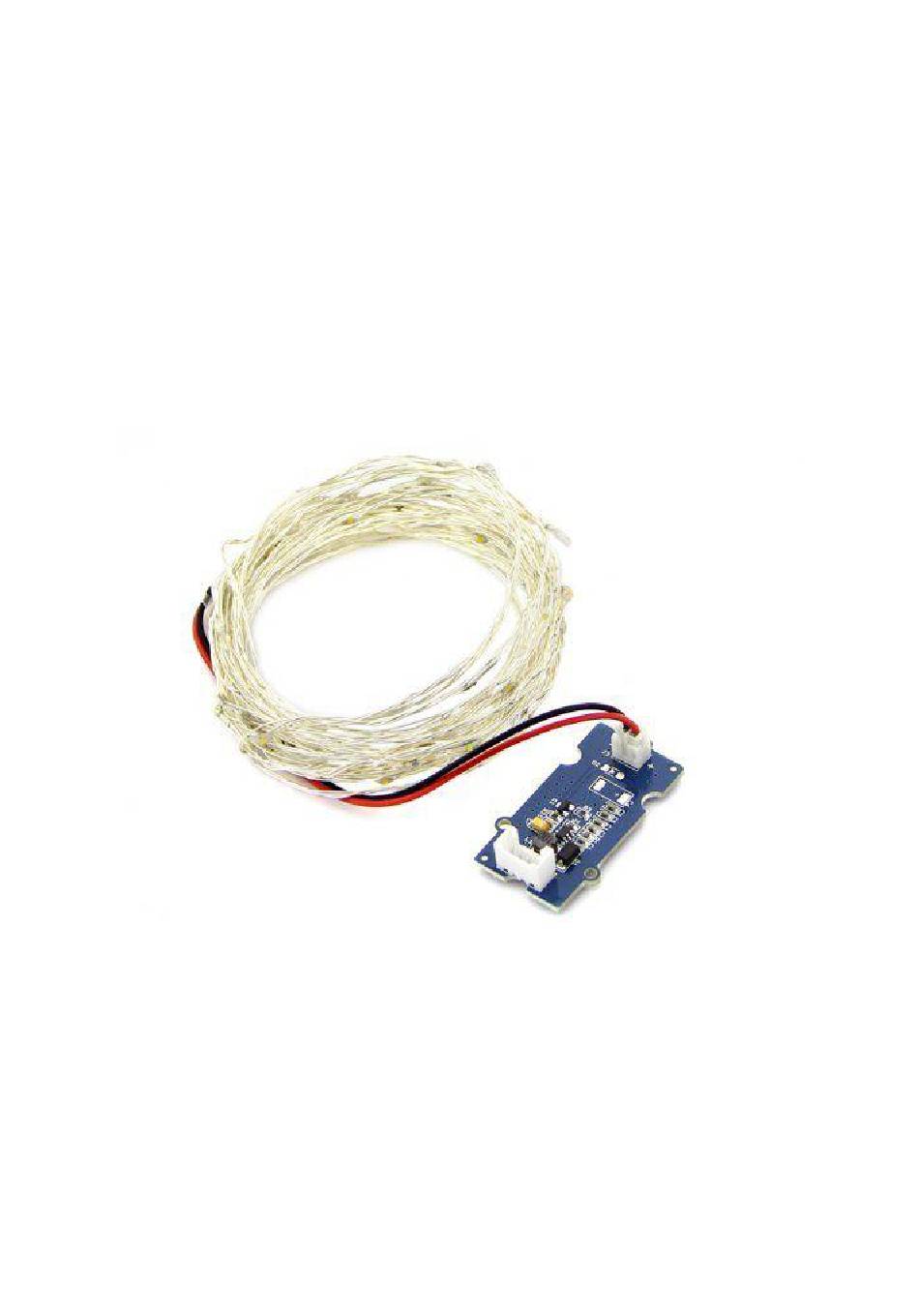

Grove - LED String Light

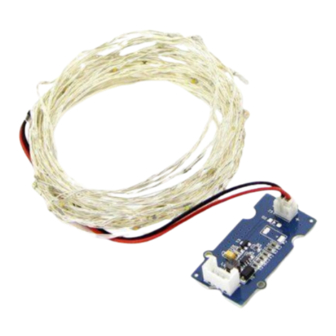

The Grove - LED String Light module is essentially an LED driver for
the LED string lights included in the pack. Working voltage of the
module is 3.3V/5V. However, the LED string lights require a working
voltage of 12V. Therefore, this module uses a AIC1896 current
mode step up DC-DC Converter to provide the requisite voltage to
the LED string lights. The LED string light is 5 meters in length and
https://wiki.seeedstudio.com/Grove-LED_String_Light/
Grove - LED String Light - Seeed Wiki
1/7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grove and is the answer not in the manual?

Questions and answers

Related Manuals for Seeed Grove

Summary of Contents for Seeed Grove

  • Page 1 Grove - LED String Light - Seeed Wiki Grove - LED String Light The Grove - LED String Light module is essentially an LED driver for the LED string lights included in the pack. Working voltage of the module is 3.3V/5V. However, the LED string lights require a working voltage of 12V.
  • Page 2 7/23/22, 9:41 PM Grove - LED String Light - Seeed Wiki has 50 RGB LEDs on it connected equidistant to one another. You can use these to dress a Christmas tree, light your party or to decorate your room. [https://www.seeedstudio.com/Grove-LED-String-Light-p-2324.html]...
  • Page 3 7/23/22, 9:41 PM Grove - LED String Light - Seeed Wiki ① JST 2.0 interface: Used to connect to LED String Lights ② Grove interface: HIGH on SIG (Pin 1) turns the LED String Lights ON, LOW turns them OFF Usage Follow these steps to build a sample circuit using this module: 1.
  • Page 4 . If using with a slide potentiometer, move the slider from the GND position to VCC and see the brightness of the lights increase as the supplied voltage increases. Below is an illustration of a Grove circuit built using the Grove - USB Power [/Grove-Mixer_Pack_V2] power module: https://wiki.seeedstudio.com/Grove-LED_String_Light/...
  • Page 5 7/23/22, 9:41 PM Grove - LED String Light - Seeed Wiki If you do not have the Grove - USB Power module, use the Grove - DC Jack Power [/Grove-DC_Jack_Power] module instead to turn ON the LED string lights. Availability...
  • Page 6 7/23/22, 9:41 PM Grove - LED String Light - Seeed Wiki Resources [Schematic PDF [https:// les.seeedstudio.com/wiki/Grove- LED_String_Light/res/Grove-LED_String_Light.pdf]] [Eagle File [https:// les.seeedstudio.com/wiki/Grove- LED_String_Light/res/Grove-LED_String_Light.zip]] https://wiki.seeedstudio.com/Grove-LED_String_Light/...
  • Page 7 7/23/22, 9:41 PM Grove - LED String Light - Seeed Wiki Tech Support Please submit any technical issue into our forum [https://forum.seeedstudio.com/]. [https://www.seeedstudio.com/act-4.html? utm_source=wiki&utm_medium=wikibanner&utm_campaign=newpr oducts] https://wiki.seeedstudio.com/Grove-LED_String_Light/...
