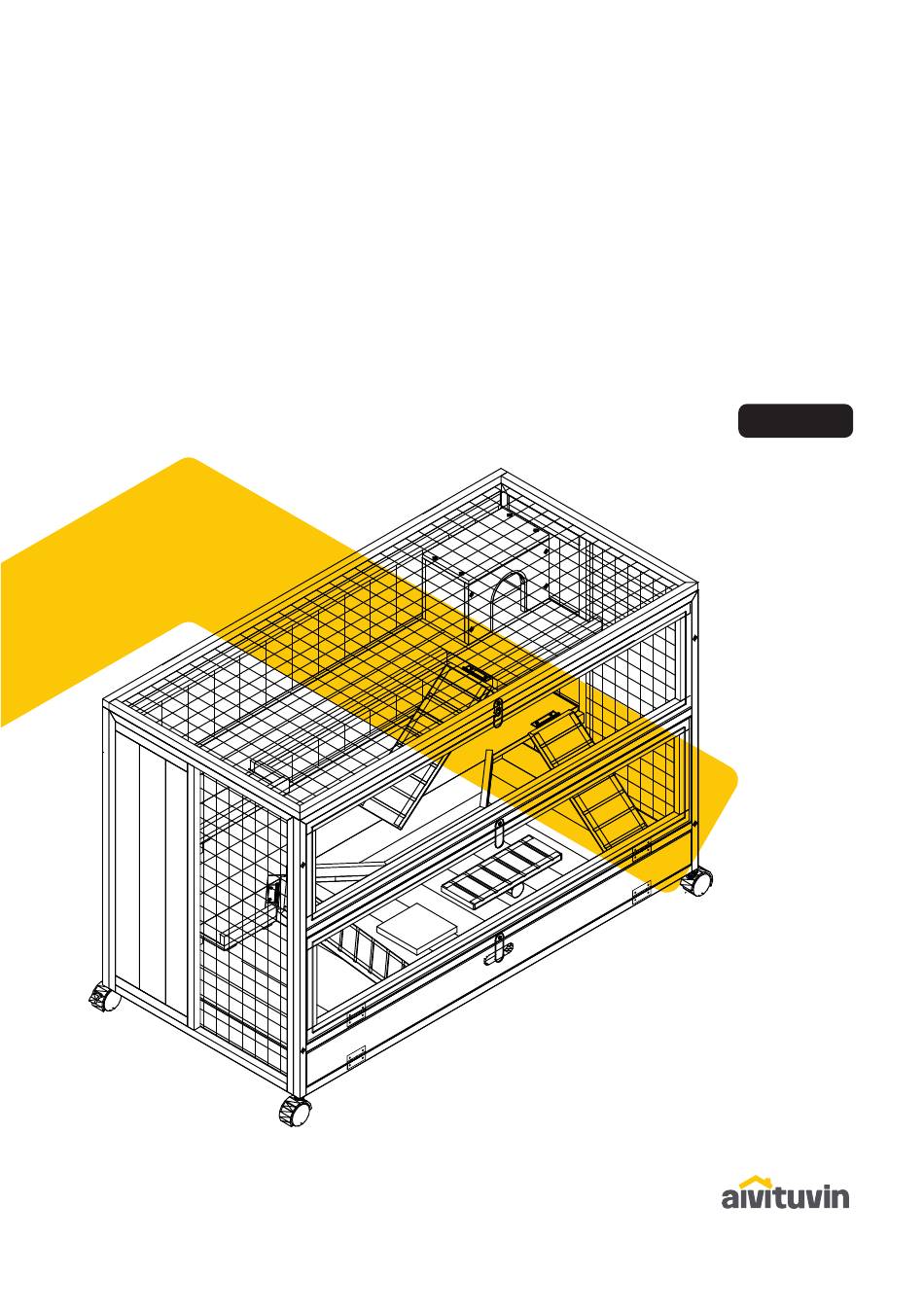

- Page 1 INSTRUCTION MANUAL AIR 26 www.aivituvin.com...
- Page 3 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
-
Page 4: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 45MIN. ASSEMBLY HARDWARE M6.0x30mm BOLT M3.0x28mm SCREW 8PCS 24PCS+1 spare M3.0x20mm SCREW M3.0x14mm SCREW 1PCS+1 spare 4PCS+1spare M3.0x10mm SCREW Spanner 6PCS+1 spare... - Page 5 PARTS Side panels of small house Back panel of small house Front panel of small house 2PCS 2PCS 4PCS Back panel Roof of small house Right side panel 2PCS Left side panel Casters without brake Front panel 2PCS...
- Page 6 PARTS Casters with brake Plastic tray Bottom panel 2PCS Down layer Down PVC cover Ramp 3PCS Upper layer Base of bowl Seesaw...
- Page 7 PARTS Roof supporter Roof Down PVC cover...
-
Page 8: Product Assembly
PRODUCT ASSEMBLY Assemble two small houses. Attach Part A,B,C,D by 12XP2 screws. Attach the back panel Part E to side panels Part G & F by 4XP1 screws. - Page 9 PRODUCT ASSEMBLY Attach the front panel Part H by 4XP1 screws. Attach the casters Part I & J to cage, use the spanner P6 to tighten the wheels.
- Page 10 PRODUCT ASSEMBLY Put the bottom panel Part K into the cage. Slide in the plastic tray Part L.
- Page 11 PRODUCT ASSEMBLY Put the down layer Part M into the cage, position as show on the picture. Put in the PVC layer Part N. ① Attach the ramps Part O by 2XP5 screws each. ②...
- Page 12 PRODUCT ASSEMBLY Put the upper layer Part P into the cage, position as show on the ① picture. Put the base of bowl Part Q and the seesaw Part R to the cage. ② ① Attach the ramp Part O to upper layer by 2XP5 screws. Put the upper PVC layer Part S.
- Page 13 PRODUCT ASSEMBLY Put the two small houses into the cage. Attach the roof Part T by 2XP4 screws.
- Page 14 PRODUCT ASSEMBLY Attach the roof supporter Part U by 1XP3 screws. Finish...
- Page 16 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
