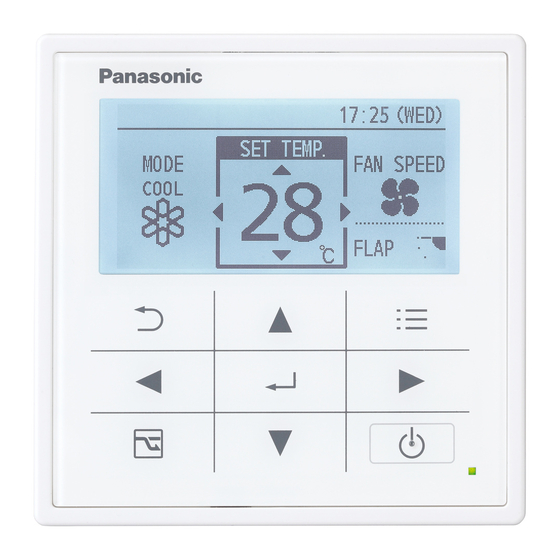

Panasonic CZ-RTC5B Installation Instructions Manual

High-spec wired remote controller
Hide thumbs Also See for CZ-RTC5B:
Table of Contents

Advertisement

Quick Links

Download this manual
English
Read through the Installation Instructions before you proceed
with the installation.
In particular, you will need to read under the "Safety
Precautions" on page 3.
High-spec Wired Remote Controller
Model No.
Contents
 Part Names ....................................... 2
 Supplied accessories ...................... 2
 Safety Precautions ........................... 3
 Specifi cations ................................... 4
 Installation Precautions................... 5
 Mounting ........................................... 7
Exposed type ................................ 7
Embedded type ............................ 8
 Setting ............................................... 9
Language ..................................... 9
Clock ............................................ 9
Controller name ............................ 9
Service contact ........................... 10
RC. setting mode .........................11
Detailed settings ..........................11
Auto address .............................. 12
Set elec. consumption ................ 12
 Confi rming Information ................. 13
 Test Operation ................................ 14
Panasonic Corporation
http://www.panasonic.com
Installation Instructions
CZ-RTC5B
WEB-ACXF60-26852-EN
H0318-20921

Advertisement

Table of Contents
loading

Related Manuals for Panasonic CZ-RTC5B

Summary of Contents for Panasonic CZ-RTC5B

  • Page 1: Table Of Contents

    Installation Instructions High-spec Wired Remote Controller CZ-RTC5B Model No. English Read through the Installation Instructions before you proceed with the installation. In particular, you will need to read under the “Safety Precautions” on page 3. Contents  Part Names ........2 ...

  • Page 2: Part Names

    Part Names Control panel 5) Cross key buttons Selects an item. 1) LCD screen 2) Return button Left Right Returns to the previous screen. Down 3) Enter button 6) Menu button Fixes the selected Displays the menu content. screen. 4) Energy saving 7) Operation button indicator...

  • Page 3: Safety Precautions

    Safety Precautions • This controller shall be Read before installation  Read the Installation Instructions installed in accordance with carefully to install the remote controller National Wiring Regulations. correctly and safely. • Connect and fi x the specifi ed Be sure to read the Safety Precautions cables for wiring securely.

  • Page 4: Specifi Cations

    Specifi cations Model No. CZ-RTC5B Dimensions (H) 120 mm x (W) 120 mm x (D) 16 mm Weight 180 g Temperature/ 0 ˚C to 40 ˚C / 20 % to 80 % (no condensation) Humidity range *Indoor use only. Power Source DC16 V (supplied with indoor unit) ±...

  • Page 5: Installation Precautions

    Installation Precautions Installation location  Install at the height of 1 to 1.5 m from 5 mm or more the fl oor (Location where average room temperature can be detected).  Install vertically against the fl oor.  When installing more than 1 remote 50 mm or controller next to each other, keep more...
  • Page 6 Wiring as shown below is prohibited. Indoor unit Indoor unit Indoor unit R1 R2 R1 R2 R1 R2 RC wiring RC wiring (sub) (main) When setting both the main and sub remote controllers After installation, set one remote controller to [Main] and the other to [Sub] for [Main/ sub] for “Setting”...

  • Page 7: Mounting

    Mounting Remove the bottom case. Attention Mounting the bottom case Tighten the screws securely until the screw heads touch the bottom case. Insert the driver and (Otherwise, loose screw heads may slightly turn. hit the PCB and cause malfunction when mounting the top case.) Flat-blade Do not over-tighten the screws.

  • Page 8: Embedded Type

    Embedded type Preparation: Make 2 holes for screws using a driver. Mount the bottom case to the wall. Pass the wire through the hole in the centre of the bottom case. Mount the top case. Align the claws of the top case and then align the claws of the bottom case.

  • Page 9: Setting

    Setting  Language  Clock  Controller name Preparation: Turn on the circuit breaker of units and then turn the power on. The remote controller starts, and wait until the [Assigning] display disappears. (If [Assigning] continues to blink for 10 minutes or more, check the address setting of indoor units.) Note To return to the previous screen...

  • Page 10: Service Contact

    Setting  Service contact Press and hold the 3 buttons for 4 seconds or more simultaneously. , ► Select the item to set. ▲ ▼ → Service contact Select. Name ▲ ▼ → Name Contact number ▲ ▼ ◄ ► → (Repeat the same procedure for all characters.) •...

  • Page 11: Rc. Setting Mode

    Setting  RC. setting mode  Detailed settings Press and hold the 3 buttons for 4 seconds or more simultaneously. , ► Select the item to set. ▲ ▼ → RC. setting mode Set. (Select the Code no. and Set data.) ▲...

  • Page 12: Auto Address

    Setting  Auto address  Set elec. consumption Auto address Set. (Select the Code no. [A1] and O/D unit no.) ▲ ▼ → ► → (Repeat) Press Code no. O/D unit no.  After Selecting [YES], the unit restarts. Code no. O/D unit no.

  • Page 13: Confi Rming Information

    Confi rming Information  Sensor info.  Service check Press and hold the 3 buttons for 4 seconds or more simultaneously. , ► Select the item to set. ▲ ▼ → Sensor info. This displays each sensor temperature of the remote controller, indoor units and outdoor units.

  • Page 14: Test Operation

    Test Operation Press and hold the 3 buttons for 4 seconds or more simultaneously. , ► Select [Test run]. ▲ ▼ → Select [ON]. (The unit enters the test operation mode. Then, [TEST] turns on.) ▲ ▼ → Press Perform the test operation. Finish the test operation.
  • Page 15 © Panasonic Corporation 2018-2021...
