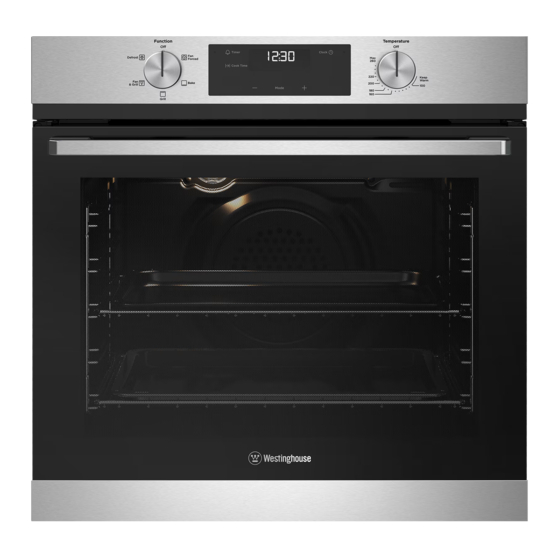

Westinghouse WVG6515SD User Manual

Gas built-in ovens
Hide thumbs Also See for WVG6515SD:
Table of Contents

Advertisement

Quick Links

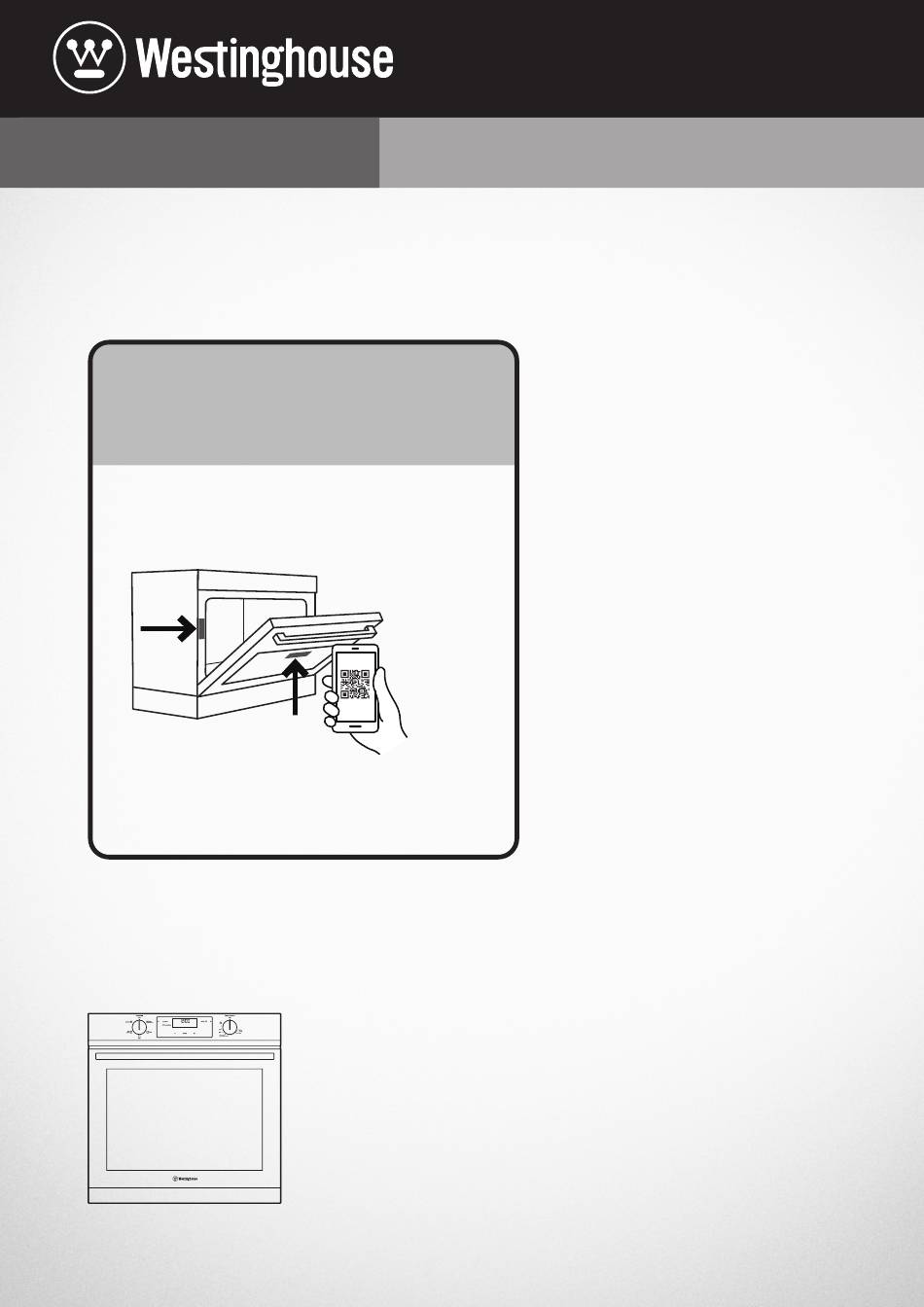

USER MANUAL
Enjoy peace of mind.
Register your appliance today.
Stay updated on better living services, safety notices and
shop for accessories.
1. Open the camera app on your smartphone and
point at the QR code to scan
Product Registration QR code is located on the
front of your appliance or inside the door rim*.
2. Tap the notification or link to open the registration form
3. Complete your details and enjoy peace of mind
*Exact location of QR code may vary depending on oven model
z
x
y
GAS BUILT-IN OVENS
WVG6515SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WVG6515SD and is the answer not in the manual?

Questions and answers

Related Manuals for Westinghouse WVG6515SD

Summary of Contents for Westinghouse WVG6515SD

  • Page 1 2. Tap the notification or link to open the registration form 3. Complete your details and enjoy peace of mind *Exact location of QR code may vary depending on oven model GAS BUILT-IN OVENS WVG6515SD...

  • Page 2: Table Of Contents

    Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Westinghouse manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS • Always keep the appliance clean. Ensure fats and oils Please read the user manual carefully and store in a handy do not accumulate around elements, burners or fans. place for later reference. • Care must be taken when wiping exposed stainless steel edges.…they can be sharp! TIPS &...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING CAUTION Read the following carefully to avoid damage to the appliance. • The grill door must be left fully open whilst grilling in a separate grill wall oven and a separate grill underbench oven. • The grill tray must be fully inserted whilst grilling. •...

  • Page 5: Installing Your Appliance

    INSTALLING YOUR APPLIANCE • This appliance must be mounted on a flat surface for the full width and depth of the product. WARNING WARNING To avoid any potential hazard, you must follow our • To avoid overheating, the appliance must not instructions when you install your appliance.
  • Page 6 INSTALLING YOUR APPLIANCE (CONTINUED) Levelling oven Place a level in the oven as below making sure the level sits on the front and rear forms. ✓ Underbench ovens Your underbench oven looks best when the control panel is directly under the benchtop. An upper infill panel may have to be added if the cooktop placed above the benchtop is too deep.
  • Page 7 Recommended cabinet design NOTE: Powerpoint connection must be accessible with the appliance installed. Front View Area for mounting of powerpoint. Supporting shelf 8mm below door line to give perfect alignment of cooker & cupboard (kick panel notched to suit). 720mm Module(s) Bench Top Cleat (2) Infill Panel (2)

  • Page 8: Gas Installation Information

    GAS INSTALLATION INFORMATION Gas Connection Connecting flexible hose The appliance is preset for natural gas use. If LPG is to be • Place a spanner on the flats provided on the gas inlet used, see “Converting your appliance for use with LPG” to brace the inlet against the action of wrenching section.
  • Page 9 Operating Pressures Check the manometer zero point is correct. Connect the manometer to the cooker pressure Supply and operating pressures for various gases and test point. This is located on the regulator or LPG corresponding injector sizes for each burner. inlet fitting.
  • Page 10 GAS INSTALLATION INFORMATION (CONTINUED) Converting your appliance for use with LPG Install all the removed parts in the reverse order of disassembly. The appliance is preset for natural gas use but can be Attach the supplied LPG sticker to the cooker, near converted for use with LPG.

  • Page 11: Product Description

    GAS ub (Front frame) en cavity assy) Chassis) oling deck) sembly (control panel) PRODUCT DESCRIPTION assembly (Glass & Trim) (SMP) (Knob.1) WVG6515SD (Knob.2) ch (klixon) en door) ge (hinge.1) ge (hinge.2) (Oven seal) M0412900.1) Function indicator light Oven indicator light...

  • Page 12: Before First Use

    BEFORE FIRST USE Setting the time WARNING CAUTION If you have purchased a model fitted with an electronic • Do not line the oven with foil as it will damage clock, you must set the time of day before you can the enamel.

  • Page 13: Installing Oven Accessories

    INSTALLING OVEN ACCESSORIES Installing your oven accessories Side racks The side racks attached to each side of your oven. There is a left hand and right hand version (see image below for details). Detent • Insert the rear peg into the rear access hole provided, ensuring that the peg is fully inserted.

  • Page 14: Using Your Oven

    USING YOUR OVEN Defrost Understanding your oven functions Your oven will have a selection of the following functions. Refer to “Description of your appliance” to confirm what functions are available to you. Oven Refer to cooking guide for more information. Fan Forced The “defrost”...
  • Page 15 Operating your oven temperature selector TIPS & INFORMATION IMPORTANT A thermostat controls the temperature in your appliance. The temperature can be selected within the specified Cooling/Venting fan range. To set the temperature, turn the temperature selector in a clockwise direction to the desired setting. Your built-in appliance is fitted with a cooling fan.
  • Page 16 USING YOUR OVEN (CONTINUED) Operating the electronic clock Once the set time has elapsed, a beeper will sound for 1 minute. The time indication “0.00” and a (selected models only) flashing indicator symbol will appear on the display. To stop the beeper, press symbols or NOTE: This feature has no effect on the oven operation.
  • Page 17 Electronic burner control thermostat indicator light is off when the flame is off. If an oven function and temperature is selected and the Your gas oven is fitted with an electronic controller which thermostat indicator light is on, but the flame is not on manages the operation of the burner and monitors the or attempting to ignite, then the controller has invoked a flame.
  • Page 18 USING YOUR OVEN (CONTINUED) • For sponges and cakes use aluminium, bright finished MEAT RECOMMENDED RESULT MINUTES PER or non-stick utensils. TEMPERATURE ºC KILOGRAM • Always remove unnecessary trays or dishes when Rare 35 - 40 roasting or baking. Beef Medium 45 - 50 Well Done...

  • Page 19: Cooking Guide

    COOKING GUIDE Choosing the best oven settings The following table is intended as a guide and experience may show some variation in cooking times necessary to meet individual requirements. It may be necessary to change some cooking times and temperatures from your previous oven.

  • Page 20: Grilling Guide

    GRILLING GUIDE Grilling hints Do not place aluminium foil under the food as this prevents fats and oils from draining away, which could result in a fire. WARNING WARNING Baste the food during cooking with butter, olive oil Always clean the grill/oven dish after every use. Excessive or marinade.

  • Page 21: Dealing With Cooking Problems

    DEALING WITH COOKING PROBLEMS PROBLEM CAUSES REMEDY Uneven cooking Incorrect shelf position Select shelf that places food in the centre of the oven Baked products too brown on top Experiment with other trays or dishes Trays not centralised Centre trays Air flow in oven uneven Rotate food during cooking Grill dish affecting thermostat...

  • Page 22: Getting To Know Your Oven

    GETTING TO KNOW YOUR OVEN Get to know the oven with this ‘Simple Test Cake’ Although we strive for a perfect performing oven, it’s possible that there will be some variation in colour when baking. Therefore, we suggest this simple, easy and delicious to make Simple Test Cake, it can help you understand your new oven.

  • Page 23: Cleaning Your Appliance

    CLEANING YOUR APPLIANCE WARNING WARNING WARNING WARNING • Ensure the oven is electrically isolated before • The door glass on this appliance is made from a cleaning. This can be done by switching off tough, durable material that withstands heating and the appliance via the powerpoint or isolating switch cooling without breaking.
  • Page 24 CLEANING YOUR APPLIANCE (CONTINUED) RELEASING THE GRILL ELEMENT Cleaning your oven accessories Removing the trays and shelves from your appliance WARNING WARNING • Slide the dish and shelves towards you until they Make sure the appliance is turned off before you remove reach the front stop.
  • Page 25 Retaining clips models - The upper grill element is Cleaning the oven door secured with 2 clips which can be removed to help clean the oven cavity ceiling. To disengage the clips, push the edge of WARNING CAUTION the clip towards back of the oven as shown below. Do not lift the door by the handle.
  • Page 26 CLEANING YOUR APPLIANCE (CONTINUED) • Grasp the oven door with a hand each side of the Removing the door glass panels door and remove it from the oven by pulling it towards you. WARNING CAUTION Rough handling, especially around the edges can cause the glass to break.
  • Page 27 Cleaning the door glass panels Re-assembling the door glass panels • Insert the smaller clear glass panel (when fitted) first from above and at an angle to the profile of the door. WARNING CAUTION Do not to use harsh abrasives on the glass panes as the reflective surface plays a role in the function of the oven.
  • Page 28 CLEANING YOUR APPLIANCE (CONTINUED) Re-assembling the top door trim Fitting the oven door • Take hold of the top door trim at each side and • Take hold of the oven door with a hand on each side position it to the inside edge of the glass. and with the door at an angle of 45º, position the recesses at the bottom of the door onto the hinge •...

  • Page 29: Troubleshooting

    TROUBLESHOOTING Faults PROBLEM POSSIBLE CAUSE If there is a problem with the oven and/or Oven not • Foil or trays on bottom of oven. grill, please: heating enough • Timer is in “AUTO” mode. (Refer to • Check the points listed below before calling timer operating instructions) for service.
  • Page 30 NOTES NOTES...

  • Page 31: Warranty

    (c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products In addition, Electrolux is not liable under this warranty if: Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004...
  • Page 32 NEW ZEALAND phone: 0800 10 66 10 email: customercare@electrolux.co.nz web: westinghouse.co.nz and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license. All Rights Reserved. ANC: A18930702 Rev A © 2023 Electrolux Home Products Pty Ltd. ABN 51 004 762 341...
