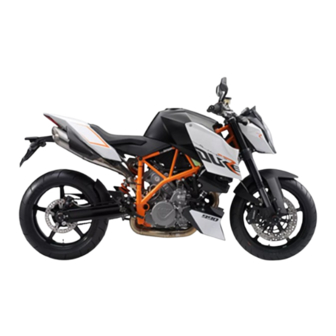

- Page 1 SETUP INSTRUCTIONS 2011 990 Super Duke EU 990 Super Duke FR 990 Super Duke AUS/UK 990 Super Duke R EU 990 Super Duke R FR 990 Super Duke R AUS/UK Art. no. 3211743en...
- Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.
-
Page 4: Means Of Representation
MEANS OF REPRESENTATION Symbols used The symbols used are explained in the following. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Identifies a page reference (more information is provided on the specified page). Denotes additional information or tips. - Page 5 SET‑UP Unpacking and setting up the vehicle – Remove the carton. – Remove the adhesive tape in the upper area of the motorcycle. 101252-10 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have finished work on the vehicle.
- Page 6 SET‑UP – Position the hand brake cylinder. Tighten the screws. Guideline Remaining chassis screws 10 Nm (7.4 lbf ft) – Position the throttle grip. Tighten the screws. Guideline Remaining chassis screws 5 Nm (3.7 lbf ft) – Mount and tighten the right handlebar weight. Guideline Remaining chassis screws 10 Nm (7.4 lbf ft)
- Page 7 Install the front spoiler. ( p. 10) – Refuel. ( p. 8) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. – Set kilometers or miles. ( p. 9) – Set the clock. (...
-
Page 8: Mounting The Seat
Environmental hazard The battery contains elements that are harmful to the environment. – Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner. Give the battery to your KTM dealer or to a recycling center that accepts used batteries. - Page 9 WORK Warning Environmental hazard Hazardous substances cause environmental damage. – Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations. Info Even when there is no load on the battery, it discharges steadily. The charge state and the type of charge are very important for the service life of the battery. Rapid recharging with a high charging current shortens the battery's service life.
- Page 10 WORK – Lift the cover of the filler cap and insert the ignition key in the lock. Note Danger of damage Ignition key breakage. – To take pressure off of the ignition key, push down on the filler cap. Damaged ignition keys must be replaced.
-
Page 11: Setting Kilometers Or Miles
WORK – Only refuel with clean fuel that meets the specified standards. Warning Environmental hazard Improper handling of fuel is a danger to the environment. – Do not allow fuel to get into the ground water, the ground, or the sewage system. –... - Page 12 WORK Installing the front spoiler – Position the front spoiler. 0 0 0 1 – Mount and tighten screws with the washer. Guideline Screw, front spoiler 10 Nm Loctite ® 243™ (7.4 lbf ft) – Fully tighten screws B00245-10...
-
Page 13: Technical Data - Chassis Tightening Torques
TECHNICAL DATA - CHASSIS TIGHTENING TORQUES ® Screw, side stand switch 2 Nm (1.5 lbf ft) Loctite 243™ – Remaining chassis screws 5 Nm (3.7 lbf ft) – Screw, chain sliding guard 5 Nm (3.7 lbf ft) – Screw, fuel level indicator 3 Nm (2.2 lbf ft) –... - Page 14 TECHNICAL DATA - CHASSIS TIGHTENING TORQUES – Remaining frame bolts 45 Nm (33.2 lbf ft) – Screw connection, engine mounting 45 Nm (33.2 lbf ft) bracket – Screw, fuel tank holder 15 Nm (11.1 lbf ft) – Screw, handlebar support (Super Duke) M10 20 Nm (14.8 lbf ft) –...
- Page 15 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) According to – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
- Page 16 *3211743en* 3211743en KTM-Sportmotorcycle AG 5230 Mattighofen/Austria http://www.ktm.com...
