Summary of Contents for KTM 990 SUPER DUKE 2009

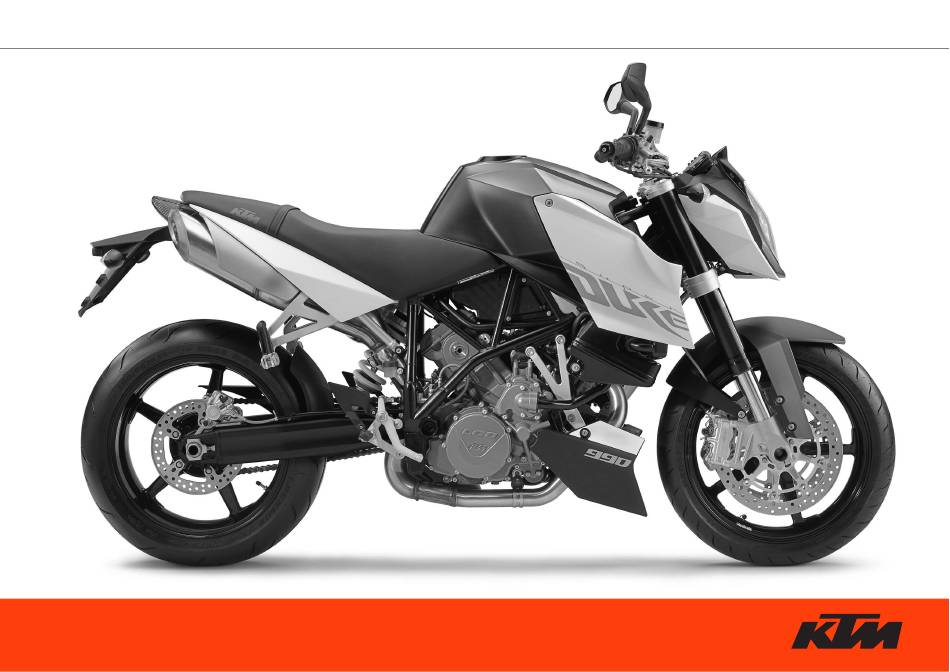

- Page 1 OWNER’S MANUAL 2009 990 SUPER DUKE 990 SUPER DUKE R ART. NR. 3211372en...
- Page 2 INTRODUCTION We would like to congratulate you on your purchase of a KTM motorcycle. You are now the owner of a state-of-the-art sport motorcycle that guarantees to bring you lots of fun and enjoyment, provided that you clean and maintain it appropriately.
- Page 3 » IMPORTANT INFORMATION INTENDED PURPOSE The 990 Super Duke is designed to resist the usual wear and tear of paved roads but is not designed for race courses or off-road use. The 990 Super Duke R is designed to resist the usual wear and tear of paved roads or race courses but is not designed for off-road use. OWNER'S MANUAL Carefully read the entire Owner's Manual before you start riding your motorcycle, even if this will take a little time.
- Page 4 SPARE PARTS, ACCESSORIES For your own safety, only use spare parts and accessories approved by KTM. KTM shall not assume any liability for other products or consequential damage resulting from the use of such products.
- Page 5 Compression damping of fork ..... .19 General information on KTM disk brakes ....42 Rebound damping of fork .
- Page 6 » INDEX Checking the front brake pads .....45 Changing the engine oil and the oil filter, Checking the rear brake fluid level ....46 cleaning the oil screen .
- Page 7 » SERIAL NUMBER LOCATIONS Chassis number, Type label The chassis number is stamped on the right side of the steering head tube. Enter this num- ber in the field on page no 1. The type label is located on the right frame tube under the seat. Engine number, engine type The engine number and the engine type are stamped into the left side of the engine below the engine sprocket.
- Page 8 » OPERATION INSTRUMENTS Clutch lever The clutch lever [1] is fitted on the left hand side of the handle bar. The adjusting screw [A] is used to change the original position of the clutch lever (see maintenance work on chas- sis and engine).
- Page 9 » OPERATION INSTRUMENTS Combined instrument The combined instrument is divided into 4 parts. Function buttons: to select the display modes and basic settings in the display Tachometer: displays the engine speed Indicator lamps: provide additional information on the motorcycle operating condition Display: shows the speed, cooling liquid temperature, time, ambient temperature, distance traveled (ODO), trip master 1 (TRIP 1), trip master 2 (TRIP 2),...
- Page 10 » OPERATION INSTRUMENTS SPEED [1] The speed can be displayed in kilometers per hour (km/h) or miles per hour (mph). CHANGING THE SPEED DISPLAY FROM KM/H - MPH or MPH - KM/H Switch on the ignition and press the MODE button more than 10 seconds in the ODO mode. CLOCK [2] The dots between the hours and minutes will blink in the CLOCK display.
