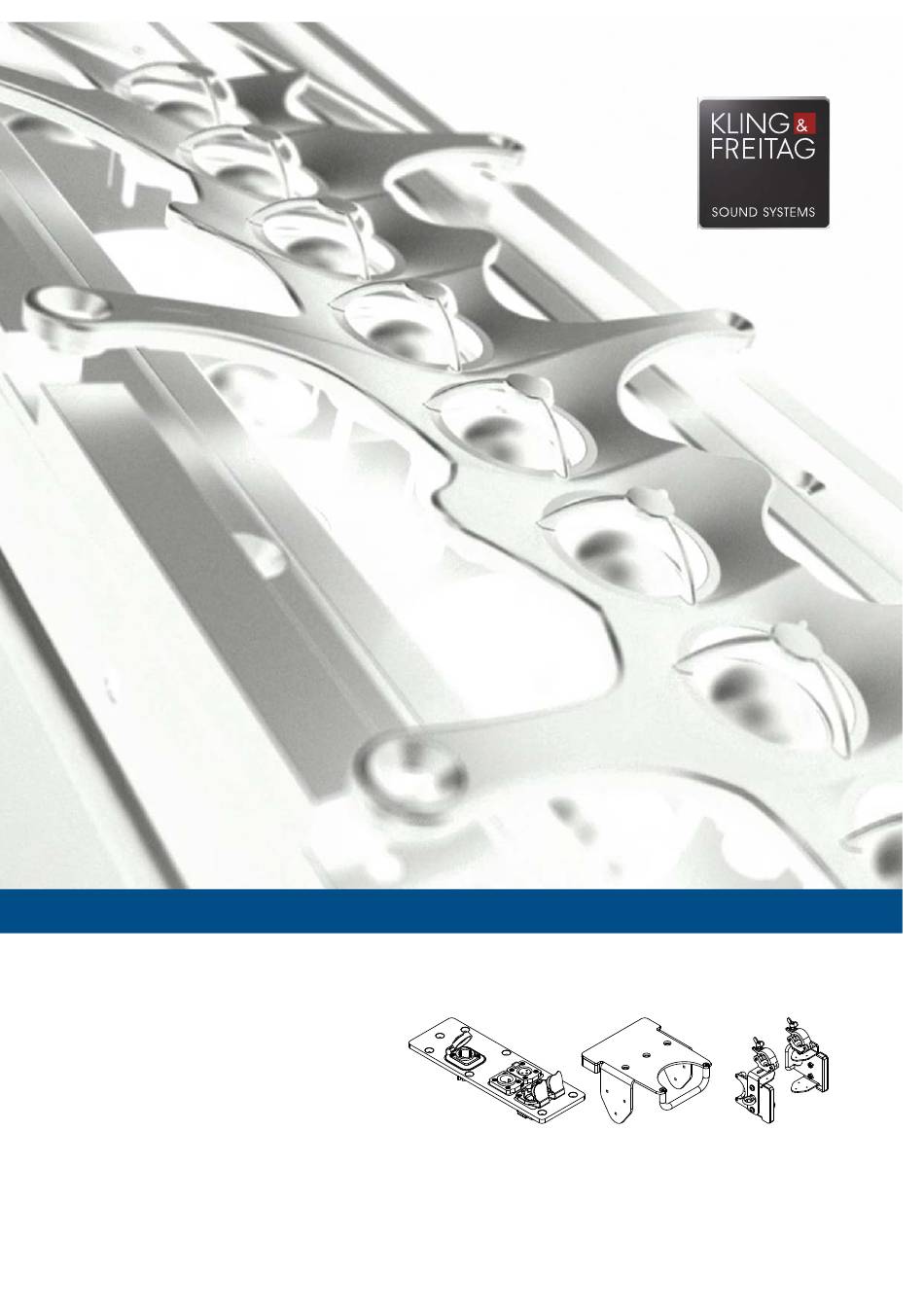

- Page 1 EN | VERSION 1.3 | 07/26/2021 USER‘S MANUAL K&F VIDA M Accessories for Mobile Use...
-
Page 3: Table Of Contents
4.2.3 Vertical Suspension Using Spigot Adapter with Safety 4.3 Using the M10 Stand Sleeve for Speaker-Stand Placement Mounting the Truss Adapter Set 5.1 Installing a VIDA M Using a Truss Adapter Set Mounting the VIDA M Connector Panel Care and Maintenance... -
Page 4: Introduction
User's Manual K&F VIDA M Accessories for Mobile Use Introduction VIDA M Accessories for Mobile Use Icons Used This icon indicates a risk of injury or death. Not following these instructions may result in seri- WARNING ous health problems including potentially fatal injuries. -
Page 5: Product Description
Using the VIDA M Truss Adapter Set, you can attach a VIDA M 110 / 110 S or VIDA M 220 / 220 S speaker either vertically or horizontally to a truss or tube with a diameter of approx. -
Page 6: Items Included
User's Manual K&F VIDA M Accessories for Mobile Use Items included 2.2.1 VIDA M Mounting Adapter 6 x M6x10 countersunk screw, stainless steel, strength class A2- 70, for permanent installation to the speaker 1 x VIDA M mounting-adapter plate 2 x Locktix® M10 lock washer... -
Page 7: Vida M Truss Adapter Set
User's Manual K&F VIDA M Accessories for Mobile Use 2.2.2 VIDA M Truss Adapter Set • 2 x VIDA M mounting adapter (for details on items included with each mounting adapter, re- fer to chapter »Items included« on page 6) -
Page 8: Vida M Connector Panel
User's Manual K&F VIDA M Accessories for Mobile Use 2.2.3 VIDA M Connector Panel Connector panel (all external ports equipped with protective caps) Analog-audio connector (ANALOG IN / AUX OUT) Network cable (Dante) Dante/Remote Secondary, Neu- trik etherCon TOP (RJ45) -
Page 9: Dimensions And Weight
User's Manual K&F VIDA M Accessories for Mobile Use Dimensions and Weight 2.3.1 VIDA M Mounting Adapter Weight: 1.1 kg 98.9 mm [3.893 inch] 172.3 mm [6.783 inch] © KLING & FREITAG GMBH Version 1.3 Page 9 of 30... -
Page 10: Vida M Truss Adapter Set
User's Manual K&F VIDA M Accessories for Mobile Use 2.3.2 VIDA M Truss Adapter Set Weight: 0.85 kg 83 mm [3.268 inch] 270.3 mm [10.643 inch] 41 mm [1.614 inch] Version 1.3 © KLING & FREITAG GMBH Page 10 of 30... -
Page 11: Vida M Connector Panel
User's Manual K&F VIDA M Accessories for Mobile Use 2.3.3 VIDA M Connector Panel Weight: 0.4 kg 6.1 mm [0.240 inch] 31.9 mm 80 mm [1.255 inch] [3.150 inch] © KLING & FREITAG GMBH Version 1.3 Page 11 of 30... -
Page 12: General Safety Instructions
Risks imposed by falling or overturning parts WARNING • The VIDA M mounting adapter is not designed for frequent attachment to/removal from the speaker. Therefore, leave the accessory attached to the speaker once mounted! Throughout its entire lifecycle, a Vida M mounting adapter must be installed/un- installed (i.e. -
Page 13: Installing The Vida M Mounting Adapter
User's Manual K&F VIDA M Accessories for Mobile Use Installing the VIDA M Mounting Adapter Required Tools Required mounting material IH4 torque wrench with hexagon-socket drive Loctite 2400 (supplied with the speaker) and 3 Nm torque 1. Apply Loctite 2400 to the threads of screws [A]. -
Page 14: Vida M Mounting-Adapter Use Cases
User's Manual K&F VIDA M Accessories for Mobile Use VIDA M Mounting-Adapter Use Cases An installed VIDA M mounting adapter provides for various use cases: 1. Single-side use-cases: • Vertical speaker suspension • Two-strand suspension • One-strand suspension with safety •... -
Page 15: Suspending A Speaker With One Mounting Adapter Installed
Risks imposed by falling parts WARNING • Be sure not to suspend more than one VIDA M 110 / 110 S or VIDA M 220 / 220 S speaker from a mounting adapter. • Note that speakers suspended using a single installed mounting adapter must be placed vertically and must never be mechanically down-tilted. -
Page 16: Vertical Two-Strand Suspension
User's Manual K&F VIDA M Accessories for Mobile Use 4.2.1 Vertical Two-Strand Suspension 1. Screw eyebolts with lock washers to the outer M10 thread holes of mounting adapt- er [C]. 2. Hang the speaker in two strands using the eyelets. -
Page 17: Vertical Suspension Using Spigot Adapter With Safety
User's Manual K&F VIDA M Accessories for Mobile Use 4.2.3 Vertical Suspension Using Spigot Adapter with Safety 1. Screw eyebolt with M10 lock washer to one of the outer M10 thread holes of mounting adapter and tighten it. 2. Screw spigot adapter... -
Page 18: Using The M10 Stand Sleeve For Speaker-Stand Placement
• This use case is suitable for VIDA M 110 / 110 S speakers only. The VIDA M 220 / 220 S is not approved for use on a stand as that would overload the configuration. 1. Screw stand sleeve... -
Page 19: Mounting The Truss Adapter Set
User's Manual K&F VIDA M Accessories for Mobile Use Mounting the Truss Adapter Set Required Tools IS6 hexagon socket wrench Spanner (size 17) 1. Attach two mounting adapters to your speaker (refer to chapter »Installing the VIDA M Mounting Adapter« on page 13). - Page 20 User's Manual K&F VIDA M Accessories for Mobile Use 6. To attach a safety, screw one M10 eyebolt with an M10 lock washer to the middle thread hole of mounting adapter [D]. Version 1.3 © KLING & FREITAG GMBH Page 20 of 30...
-
Page 21: Installing A Vida M Using A Truss Adapter Set
K&F VIDA M Accessories for Mobile Use Installing a VIDA M Using a Truss Adapter Set You can attach a VIDA M either horizontally or vertically to a truss or tubes with a diameter of 48–51 mm using the VIDA M Truss Adapter Set. - Page 22 User's Manual K&F VIDA M Accessories for Mobile Use 1. Lift speaker with half-coupler base attached towards tube [C]. This requires at least two persons or a suitable lift. 2. Close the top part of the half-coupler. 3. Slide bolt into the gap of the upper half-coupler part.
-
Page 23: Mounting The Vida M Connector Panel
User's Manual K&F VIDA M Accessories for Mobile Use Mounting the VIDA M Connector Panel Danger of electric shock! WARNING • The installation of the connector panel must be performed by a qualified electrician. • After installing the connector panel, be sure to check the device as specified in VDE 0100 (IEC 60364-1) or similar standards in your region. - Page 24 User's Manual K&F VIDA M Accessories for Mobile Use 4. Seal the bushing hole using the supplied grommet. As you push the grommet into the hole, compress it slightly. Ensure proper seating. 5. Screw the green/yellow ground wire to the connector panel us- ing the Allen key (size 2.5).
- Page 25 User's Manual K&F VIDA M Accessories for Mobile Use 9. Insert the audio connector into the appropriate port. 10. Insert the network cable into the appropriate port. 11. Now, reattach the connector panel to the speaker using the screws provided.
-
Page 26: Care And Maintenance
User's Manual K&F VIDA M Accessories for Mobile Use Care and Maintenance Risks imposed by falling or overturning parts WARNING 1. Over time, the accessories may exhibit signs of wear, for example, from mechanical strain, transport damage, corrosion, or improper handling. -
Page 27: Ec Declaration Of Conformity
User's Manual K&F VIDA M Accessories for Mobile Use EC Declaration of Conformity 10.1 VIDA M Mounting Adapter © KLING & FREITAG GMBH Version 1.3 Page 27 of 30... -
Page 28: Vida M Connector Panel
User's Manual K&F VIDA M Accessories for Mobile Use 10.2 VIDA M Connector Panel Version 1.3 © KLING & FREITAG GMBH Page 28 of 30... - Page 29 User's Manual K&F VIDA M Accessories for Mobile Use © KLING & FREITAG GMBH Version 1.3 Page 29 of 30...
- Page 30 KLING & FREITAG GmbH Junkersstrasse 14 · D-30179 Hannover Phone +49 (0)511 969970 www.kling-freitag.de · info@kling-freitag.de...
