An installation video guide can be found on our Youtube channel:
Un guide d'installation video est disponible sur notre chaîne Youtube:
Una guía de instalación de vídeo está disponible en nuestro canal de Youtube:
OVE 2019-07-23
Lowes USA: Chrome / Chrome / Cromo: ITEM / ARTICLE / ARTÍCULO #0150560
Satin Nickel / Satiné / Satinado: ITEM / ARTICLE / ARTÍCULO #827123
Lowes CAN: Chrome / Chrome / Cromo: ITEM / ARTICLE / ARTÍCULO #0665843
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 9 am. – 5 pm., HDE, Lunes a Viernes.

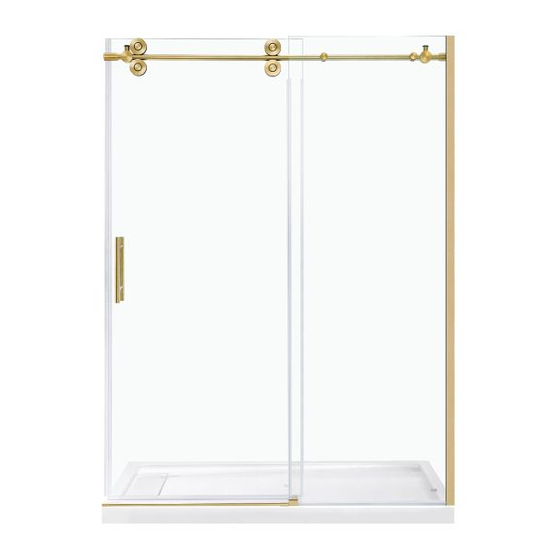

INSTALLATION MANUAL - SHOWER ENCLOSURE
MANUEL D'INSTALLATION - CABINE DE DOUCHE
MANUAL DE INSTALACIÓN - PUERTA DE DUCHA
SYDNEY 60
PAGE 1
Advertisement
Table of Contents
Related Manuals for OVE 0150560
Summary of Contents for OVE 0150560
- Page 1 MANUEL D’INSTALLATION - CABINE DE DOUCHE MANUAL DE INSTALACIÓN - PUERTA DE DUCHA Lowes USA: Chrome / Chrome / Cromo: ITEM / ARTICLE / ARTÍCULO #0150560 Satin Nickel / Satiné / Satinado: ITEM / ARTICLE / ARTÍCULO #827123 Lowes CAN: Chrome / Chrome / Cromo: ITEM / ARTICLE / ARTÍCULO #0665843 An installation video guide can be found on our Youtube channel: Un guide d’installation video est disponible sur notre chaîne Youtube:...
- Page 2 DO NOT START WITH THIS INSTALLATION MANUAL 1) FIRST, INSTALL YOUR SHOWER BASE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SHOWER BASE PACKAGE). 2) SECOND, INSTALL YOUR SHOWER SIDE PANEL, IF APPLICABLE (AN INSTALLATION MANUAL CAN BE FOUND IN THE SIDE PANEL PACKAGE). 3) THIRD, INSTALL YOUR SHOWER ENCLOSURE (USING THIS MANUAL).
-
Page 3: Table Of Contents
TABLE OF CONTENT TABLE DES MATIÈRES TABLA DE CONTENIDOS TABLE OF CONTENT ................3 WALL-TO-WALL DIMENSIONS ............13 TABLE DES MATIÈRES ................3 MESURES MUR-À-MUR ................13 TABLA DE CONTENIDOS ................3 MEDIDAS DE PARED-A-PARED ..............13 SAFETY INFORMATION ................4 WALL TRACK INSTALLATION ..............14 INFORMATION SUR LA SÉCURITÉ ............4 INSTALLATION DE LA GLISSIÈRE ............14 INFORMACIÓN DE SEGURIDAD ...............4 INSTALACIÓN DEL RIEL DE PARED ............14... -
Page 4: Safety Information
SAFETY INFORMATION INFORMATION SUR LA SÉCURITÉ INFORMACIÓN DE SEGURIDAD CAUTION Please carefully read the following important safety information before handling or installing this shower. There is a risk of serious injury while handling this product. To minimize these risks, please note: • Always wear safety glasses and gloves while handling. -
Page 5: Safety Notice
SAFETY NOTICE AVIS DE SÉCURITÉ AVISOS DE SEGURIDAD NOTICE • Any modification or alteration from what is specified in this instruction manual will void any and all warranty on this product. • The distributor is not responsible for any damage to the unit or personal property caused by improper installation. If you disregard instructional warnings, you will void your warranty and possibly deal with water damage. •... -
Page 6: Package Content
PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 6... - Page 7 PACKAGE CONTENT CONTENU DE L’EMBALLAGE CONTENIDO DEL PAQUETE PAGE 7...
-
Page 8: Part List
PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # DESCRIPTION QUANTITY CODE # DE PIÈCE DESCRIPTION QUANTITÉ CODE PARTE # DESCRIPCIÓN CANTIDAD CÓDIO Fixed panel Chrome / Chrome / Cromo: 99SG20004 Panneau fixe Satin Nickel / Satiné / Satinado: 99SG10072-WM Panel fijo Wall track Chrome / Chrome / Cromo: 99STR2020-WM... -
Page 9: Supplied Hardware List
SUPPLIED HARDWARE LIST QUINCAILLERIE FOURNIE CONTENIDO DE HARDWARE Screw Screw Screw Screw Wall Anchor Ancrage mural Tornillo Tornillo Tornillo Tornillo Tarugo ST4x12mm ST4x20mm ST5x30mm ST5x40mm ø8x30mm Fitting Allen key Capuchon Raccord Capuchon Capuchon Clé Allen Capuchón Accesorio Capuchón Capuchón Llave Allen 2mm &... -
Page 10: Reversibility
REVERSIBILITY RÉVERSIBILITÉ REVERSIBILIDAD This instruction is drawn up for a door opening from right to left (see illustration A). For an installation for a door opening from left to right (see illustration B), use the same instructions, but switch around the panels: mirror effect. Utilisez ces instructions pour une ouverture de la porte de droite à... -
Page 11: Shower Dimensions
SHOWER DIMENSIONS DIMENSIONS DE LA DOUCHE DIMENSIONES DE LA DUCHA Measurements Mesures Medidas Shower height Hauteur de la douche Altura de la ducha Shower width Largeur de la douche Anchura de la ducha Fixed panel width Largeur du panneau fixe Ancho de panel fijo Door panel width Largeur de la porte Anchura del panel de la puerta Door opening... -
Page 12: Shower Installation: Overview
SHOWER INSTALLATION: OVERVIEW IF USING TILE WALL INSTALLATION DE LA DOUCHE: VUE D’ENSEMBLE AVEC MUR DE TUILE MONTAJE DE LA DUCHA: VISIÓN GENERAL CON PARED DE AZULEJOS A. Before you start the installation of your product consult the illustration A below showing a side-view of the completed installation. B. -
Page 13: Wall-To-Wall Dimensions
WALL-TO-WALL DIMENSIONS MESURES MUR-À-MUR MEDIDAS DE PARED-A-PARED • Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit your space to install the shower panels. • Make sure to have a distance tile to tile (D) between 1478mm (58 3/16 in) min. and 1518mm (59 3/4 in) max. (see image). -
Page 14: Wall Track Installation
WALL TRACK INSTALLATION INSTALLATION DE LA GLISSIERE INSTALACIÓN DEL RIEL DE PARED A-B. Position the wall track (B) as illustrated. Level the track (B) and mark the track holes positions. C. Remove the track and drill pilot holes in the marked locations with a ø5/16” (8mm) drill bit. D. If there are no studs located behind the wall track (B), then insert the wall anchors (EE) using a rubber mallet until the wall anchors are flush with the wall. -
Page 15: Fixed Panel And Support Bar Installation
FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Insert the fixed panel bottom seal strip (I) on the base of the fixed panel (A). Cut the surplus part with a cutter, about 1 9/16” (40mm) from the panel’s edge. B. Insert the fixed panel (A) into the wall track (B). Do not fully tighten it as further adjustments may be required. Note: The wall track (B) allows you to adjust the position of the fixed panel (A). Adjusting the depth and/or giving the glass panel a slight angle allows for precise alignment with the door. - Page 16 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Slide the 2 stoppers (M) and the 2 support bar anchors (N) onto the support bar (D). B. Loosely mount the support bar (D) onto fixed panel (A) using the brackets (P) and level it.
- Page 17 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Completely remove the guide (E) and the support bar (D). C. Completely remove the fixed panel (A). D. Mark the positions of holes of the sliding door guide (E). A-B.
- Page 18 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A. Drill a pilot hole for the sliding door guide (E) using a ø1/8” (3mm) drill bit. B.
- Page 19 FIXED PANEL AND SUPPORT BAR INSTALLATION INSTALLATION DU PANNEAU FIXE ET DE LA BARRE DE SUPPORT INSTALACIÓN DEL PANEL FIJO Y DE LA BARRA DE SOPORTE A-B. Place the fixed panel (A) into the wall track (B) and put back the sliding door guide (E). C. Insert the door bottom seal strip (L) onto the door panel (C). D. Slide again the roller stoppers (M) and the support bar anchors (N) onto the support bar (D). Then fix the support bar to the wall.
-
Page 20: Shower Door Installation
SHOWER DOOR INSTALLATION INSTALLATION DE LA PORTE DE DOUCHE INSTALACION DE LA PUERTA DE DUCHA A. Install the 2 door rollers (K) on the door panel (C). B. Gently hang the door panel by its 2 top rollers on the support bar (D) and make sure to place the bottom of the door inside the guide (E). C. -
Page 21: Leveling The Glass Panel
LEVELING THE GLASS PANEL NIVELAGE DU PANNEAU DE VERRE NIVELANDO EL PANEL DE CRISTAL After the wheels have been installed, adjust the level of the glass panel using the eccentric mechanism of the rollers. Fit the bigger Allen key in the center of the inner roller, hold it in place, do not turn it, as it will loosen the wheel. -
Page 22: Seal Strips Installation
SEAL STRIPS INSTALLATION INSTALLATION DES BANDES D’ÉTANCHÉITÉ INSTALACIÓN DE LAS TIRAS DEL SELLO A-B. Install the 2 glass panel vertical seal strips (F). Install the door vertical seal strip (G) on the closing end. C. Position the 2 roller stoppers (M) in order to block the door panel (C) from hitting the wall when opening it or closing it. Use the Allen key to strongly secure the stopper when the final position is found. -
Page 23: Handle Installation
HANDLE INSTALLATION INSTALLATION DE LA POIGNÉE INSTALACIÓN DE LA MANIJA A-B. Using silicone, install the decorative track (J) in front of the door panel. Slide the decorative caps (O) onto the track. C-D. Fix the fixed panel (A) by drilling guide holes through the wall track (B) and screwing it in place using fittings (GG), screws (AA) and caps (FF). E. Install the handle (H). A-B. Installez le rail décoratif (J) à l’avant de la porte en utilisant du silicone. Glisser les embouts décoratifs (O) sur le rail. C-D. Fixez le panneau fixe (A) en perçant les trous de guidage à travers la glissière (B) et en le vissant en place à l’aide des raccords (GG), des vis (AA) et des capuchons (FF). -
Page 24: Sealing
SEALING SCELLAGE SELLADO Ensure that the door closes tightly and opens smoothly. Ensure that there is a firm connection between the fixed panel(s) and the support bar. Apply a clear silicone water sealant around the outside perimeter of any fixed shower components. Allow 24 hours for silicone to dry. Improper application of silicone sealant may cause your shower to leak. Assurez-vous que la porte se ferme totalement et s’ouvre en douceur, et qu’il existe une connexion ferme entre le(s) panneau(s) fixe(s) et la barre de support. Appliquez un joint de silicone transparent autour du périmètre extérieur de tout composant fixe de la douche. Laisser sécher 24 heures pour que le silicone sèche et adhère. Une application incorrecte du silicone peut provoquer une fuite de votre douche. Asegúrese de que la puerta esté completamente cerrada y se abrió sin problemas, y hay una conexión firme entre el conjunto(s) placa(s) y la barra de soporte. La aplicación de un sellador al agua de silicona transparente alrededor del perímetro exterior de cualquier ducha fija componente. Deje secar durante 24 horas para las curas de silicona y se adhiere. La aplicación inadecuada de sellador de silicona puede causar una fuga de su ducha. 24H! PAGE 24... -
Page 25: Care And Maintenance
CARE AND MAINTENANCE TRAITEMENT ET ENTRETIEN CUIDADO Y MANTENIMIENTO For the daily maintenance, use a wet cloth and a soft liquid cleaner. Never use abrasive cleaners containing some acetone, chlorine or strong bleach, scrapers, metallic brushes, nor other objects or the products which can graze or tarnish surfaces. -
Page 26: Limited Product Warranty
LIMITED Product Warranty The DISTRIBUTOR is a distributor of the following Products: • Shower Doors (warranty period 5 years). • Acrylic Surfaces (warranty period 5 years against blistering, cracking or chipping in the acrylic surface). • Acrylic Shell Structure (warranty period 5 years against loss of water through fiberglass laminate of the acrylic body). • Shower Hardware (handles, hinges, rubber support clips, metal support bars and wall tracks) (warranty period 1 year against defects in materials or workmanship). Limited Warranty: The DISTRIBUTOR warrants to the original retail purchaser that within a reasonable time after notification from purchaser, The DISTRIBUTOR will repair or replace the Product, or any part or component of the covered Product, distributed by The DISTRIBUTOR which is proven to the satisfaction of The DISTRIBUTOR to be defective in workmanship or materials, and which has failed during normal use and within the warranty period.
