CD Automation srl

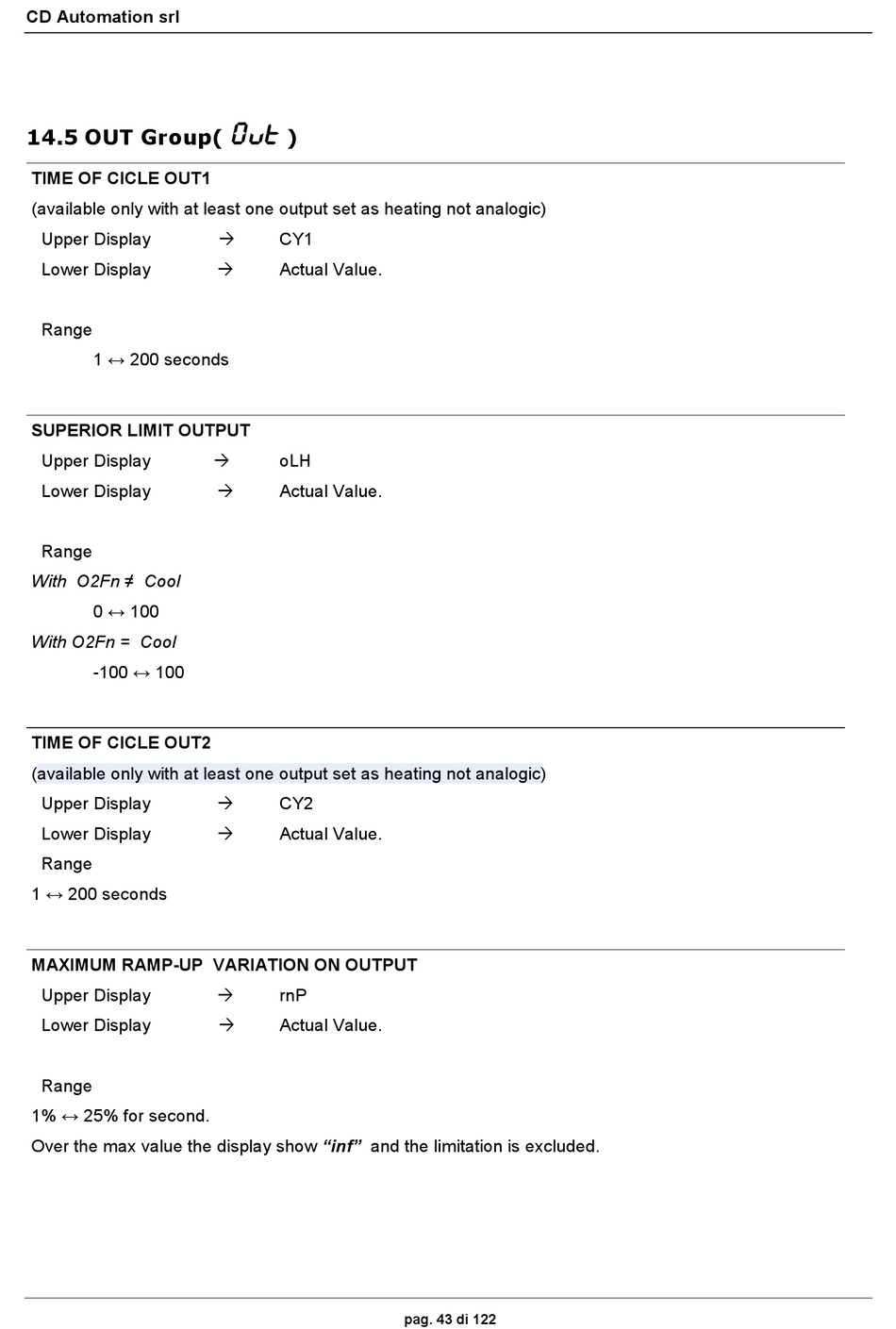

14.5 OUT Group( Out )
TIME OF CICLE OUT1
(available only with at least one output set as heating not analogic)
Upper Display
Lower Display
Range
1 ↔ 200 seconds
SUPERIOR LIMIT OUTPUT
Upper Display
Lower Display
Range
With O2Fn ≠ Cool
0 ↔ 100
With O2Fn = Cool
-100 ↔ 100
TIME OF CICLE OUT2
(available only with at least one output set as heating not analogic)
Upper Display
Lower Display
Range
1 ↔ 200 seconds
MAXIMUM RAMP-UP VARIATION ON OUTPUT
Upper Display
Lower Display
Range
1% ↔ 25% for second.
Over the max value the display show "inf" and the limitation is excluded.
CY1
Actual Value.
oLH
Actual Value.
CY2
Actual Value.
rnP
Actual Value.
pag. 43 di 122
