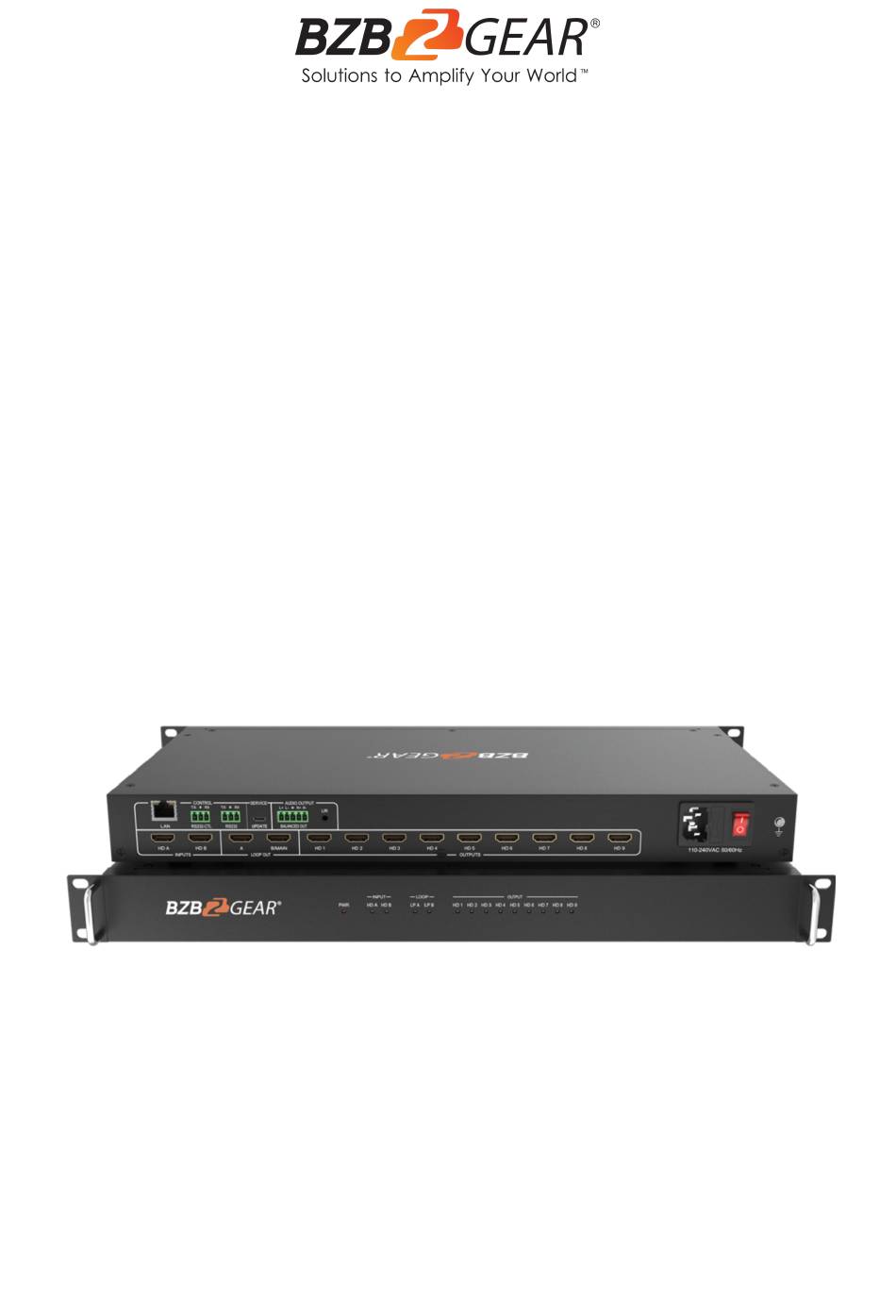

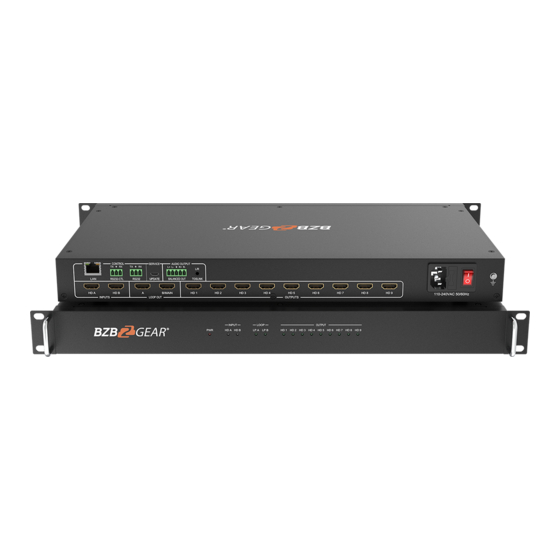

  • Page 1 BG-UHD-VW29 Crestron Driver User Manual...
  • Page 2 BZBGEAR BG-UHD-VW29 Crestron Driver User Manual · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Table of Contents Statement Safety Precaution Introduction Installation Inputs Outputs Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 4: Statement

    BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Introduction This driver has been designed to provide control for the BZBGEAR BG-UHD-VW29 via TCP/IP. Installation ● You will need to copy all of the files in the folder to your project directory to allow Simpl Windows to recognize the driver module.

  • Page 6: Inputs

    BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Inputs The module has the following commands available as inputs: Command Type Description RX_Buffer Product information feedback input GetInxFormatStatus Get the status of the HDMI input format. Trigger on the rising edge. GetSystemStatus Get the status of the system. Trigger on the rising edge.
  • Page 7 BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Command Type Description 11) 2x4 12) 3x3 SetMargin1x2_Out[1] Press to send margin output 1 to videowall 1x2. SetMargin1x2_Out[2] Press to send margin output 2 to videowall 1x2. SetMargin1x3_Out[1] Press to send margin output 1 to videowall 1x3.
  • Page 8 BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Command Type Description SetMargin2x3_Out[1] Press to send margin output 1 to videowall 2x3. SetMargin2x3_Out[2] Press to send margin output 2 to videowall 2x3. SetMargin2x3_Out[3] Press to send margin output 3 to videowall 2x3. SetMargin2x3_Out[4] Press to send margin output 4 to videowall 2x3.
  • Page 9 BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Command Type Description SetMargin3x3_Out[7] Press to send margin output 7 to videowall 3x3. SetMargin3x3_Out[8] Press to send margin output 8 to videowall 3x3. SetMargin3x3_Out[9] Press to send margin output 9 to videowall 3x3. SetVideoRouting[X]...

  • Page 10: Outputs

    BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Outputs The module has the following commands available to be used as feedback outputs: Command Type Description TX_Buffer Equipment control command issuance. FB_InxFormat[X] Input format feedback of input channel X (range 1-4). FB_IN1_Audio-Route_LR Source selected to route audio.

  • Page 11: Tech Support

    BZBGEAR BG-UHD-VW29 Crestron Driver User Manual Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
