- Page 1 BG-UHD-VW29 Ultra HD Video Wall Processor...
-
Page 2: Table Of Contents
Thank you for purchasing the BG-UHD-VW29 Please read the instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Surge Protection Recommendation This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction

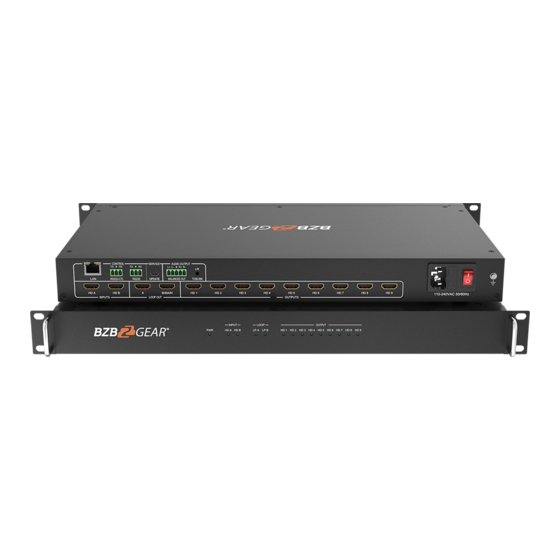

1. Introduction The BG-UHD-VW29 is an HDMI 2.0 Video Wall controller with 2 HDMI inputs, 2 HDMI loop outs and 9 HDMI scaling outputs for video wall processing. The 5-pin phoenix connector provides balanced L/R audio output. The product also features an RS-232 bypass feature for daisy chain and cascade connections with different units. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/1.4 RS-232 Baud rate: 57600, data bit: 8, Stop bit: 1, no parity 1024x768@60, 1280x800@60, 1280x1024@60, 1280x960@60, 1360x768@60, 1366x768@60, 1440x900@60, 1400x1050@60, 1600x900@60, 1600x1200@60, 1680x1050@60, 1920x1200@60, Input Video Formats 480p@60, 576p@50, 720p@50, 720p@60, 1080i@50, 1080i@60, 1080p@24, 1080p@25, 1080p@30, 1080p@50 1080p@60, 3840x2160@24, 3840x2160@25, 3840x2160@30, 3840x2160@50, 3840x2160@60,... - Page 5 Name Function Description The power LED will illuminate when the unit is powered on. Power LED The LED will illuminate when the corresponding HDMI input port is INPUT LED connected to an active HDMI source device. The LED will illuminate when the corresponding LOOP OUT port LOOP LED is connected to an HDMI display device.
-
Page 6: Rs-232/Lan Control Connection
6. RS-232/LAN Control Connection 6.1 RS-232 Control Connection The product supports RS232 Control. Connect the included RS-232 to Phoenix cable to a PC using a USB Serial Adapter as shown in the image below: 6.2 Network Control Connection The product also supports Network control. Connect the LAN port of the product to a PC using an ethernet cable as shown in the image below:... -
Page 7: Pc Tool User Guide
7. PC Tool User Guide The PC tool is an included control software that supports both UART and network control. PC Tool consists of five parts: Matrix Switch, Signal Setting, Fine Tune: PQ, Video Wall and CEC Control. The UI is as follows: ■... - Page 8 The available predefined EDID options: 1920x1200-2.0CH 4K60-2.0CH 1680x1050-2.0CH 4K60-5.1CH 4K30-2.0CH 1600x1200-2.0CH 4K30-5.1CH 1440x900-2.0CH 1400x1050-2.0CH 1080P-2.0CH 1360x768-2.0CH 1080P-5.1CH 1280x1024-2.0CH 720P-2.0CH Manual 1024x768-2.0CH ■ Signal Setting Tab The resolution of each input can be read to configure the resolution of each output. Available output resolutions: Output Resolution Setting Output Resolution Setting...
- Page 9 ■ FineTune: PQ Tab Configure the brightness, contrast, saturation, and sharpness of each output. Note: The recommended settings are the default 50/50/50/50. Avoid adjusting these settings if possible. If problems arise after reconfiguration, click ‘Reset’ to return to default settings. ■...
- Page 10 ■ Video Wall Tab Configure a group of outputs to function together as a video wall. The Video Wall Setting controls manage how the displays are arranged: Adjust the “Rows” and “Columns” sliders to adjust the video wall arrangement. The “Available” slider sets the number screens that will be used for the Video Wall.
- Page 11 Creating a second video wall Repeat steps 2-5 above using a different set out outputs. Please note that changing the “Rows”, “Columns” and “Available” sliders will automatically delete the current video wall configuration once the “Set” button is clicked. The following example shows an unusual video wall configuration for demonstrative purposes.
- Page 12 Screen Splicing This option connects the selected screens into a video wall configuration. Cancel Splicing Return the Video Wall configuration to normal outputs. Remove a single screen from the unified video wall to display a separate image. See the example below: Screen 2 –...
-
Page 13: Safety Instructions
Type B Bezel Setting: Measure the display from top to bottom outside the bezel. Next, measure in display from top to bottom inside the bezel. Enter both measurement values into the entry boxes, click “Set” and the bezel will be correct for automatically. Bezel Compensation The images below demonstrate a video wall set-up without bezel compensation and a video wall set-up with correctly configured bezel compensation:... -
Page 14: Connection Diagram
9. Connection Diagram Control System Speakers TV x 9 HDMI AUDIO 10. Tech Support Before contacting tech support, we may have answered your question already! Visit our BZBGEAR support page at bzbgear.com/support for valuable information on our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 15: Warranty
11. Warranty BZBGEAR Pro AV products and Cameras come with a three-year warranty. An extended two-year warranty is available for our Cameras upon registration for a total of five years. For an extended two-year warranty on our Cameras, follow these steps: 1.
