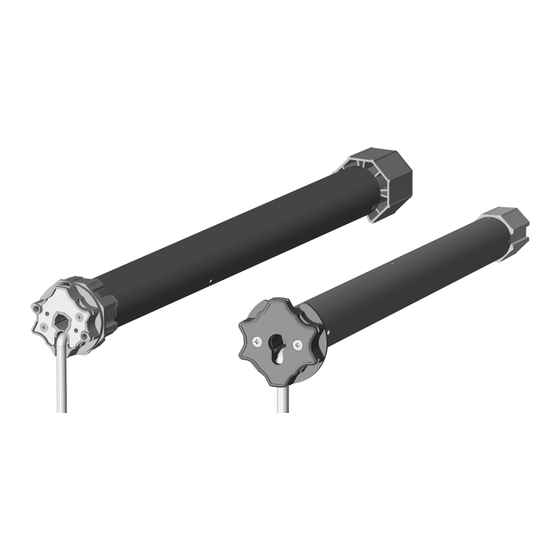

RolloTube M-line Tubular Motors
EN
Translation of the Original Operating and Assembly Manual

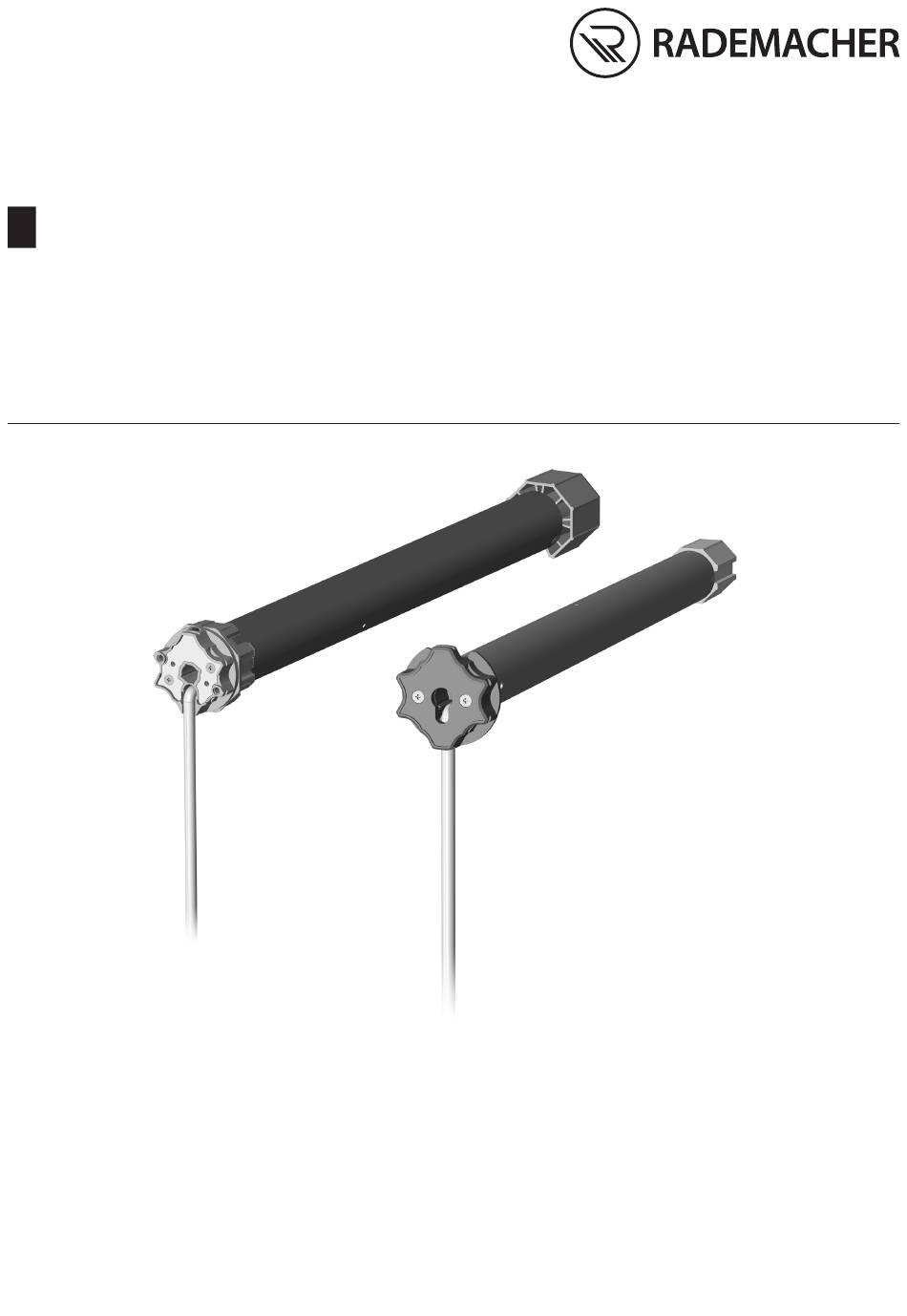

Applicable for the following series: RolloTube M-line Small (MLIS) /Medium (MLIM)
Item numbers: 2640 06 10 / 2640 10 10 / 2660 10 10 / 2660 20 10 / 2660 30 10 / 2660 40 10 / 2660 50 10
Please note:
Site of installation:
..................................................................................................................
Serial number:
..................................................................................................................
VBD 736-02 (01.23)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RADEMACHER RolloTube M-line
Summary of Contents for RADEMACHER RolloTube M-line
- Page 1 Translation of the Original Operating and Assembly Manual Applicable for the following series: RolloTube M-line Small (MLIS) /Medium (MLIM) Item numbers: 2640 06 10 / 2640 10 10 / 2660 10 10 / 2660 20 10 / 2660 30 10 / 2660 40 10 / 2660 50 10...
-
Page 2: Table Of Contents
Scope of delivery for RolloTube M-line Connection of a cord-switch setting Small/Medium ..........7 unit for manual end point setting ..22 General view of the RolloTube M-line for Self-learning mode with smooth stop ..23 Small/Medium ..........8 10. Manual adjustment of end points ...23 Functional description ........9... -
Page 3: This Manual
When passing the tubular motor on to any ‹ ‹ connection and operation of RADEMACHER tu- future owners, this manual must be passed on bular motors of the RolloTube M-line Small and as well. Medium series. Damage resulting from non-compliance with ‹... -
Page 4: Safety Instructions
3. Safety instructions Risk of fatal electric shock when Incorrect use leads to an increased risk of injury. touching electrical components. Train all personnel to safely use the tubular motor. ‹ The electrical connection for the tubular motor ‹ Do not allow children to play with the fixed ‹... -
Page 5: Intended Use / Operational Conditions
3.2 Improper use Using the RolloTube M-line for purposes other than Never use the tubular motor in continuous opera- previously mentioned is impermissible. tion. Doing so will cause serious damage. -
Page 6: Glossary - Definition
3.4 Glossary - Definition Shutter Universal setting cable Roller shutter / Venetian blind or similar. RADEMACHER accessory for the specialist roller shutter firm to set the end points. Blockage detection / Obstacle detection Rigid shaft connector Tubular motor safety features. -
Page 7: Scope Of Delivery For Rollotube M-Line Small/Medium
4. Scope of delivery for RolloTube M-line Small/Medium Included in delivery RolloTube M-line Small Medium Tubular motor, including connecting cable (2.5 m) Adapter Catch Click universal drive bearing Click-ready box support Please note: Customer-specific scope of delivery After unpacking please check the following: Check that the package contents match the scope of delivery listed on the package. -
Page 8: General View Of The Rollotube M-Line For Small/Medium
5. General view of the RolloTube M-line for Small/Medium (1) (2) (10) (11) (12) (13) (14) (15) (16) (17) Key to the overall view Counter bearing * Ball bearing * Axle pin on the roller capsule Roller capsule * Winding shaft *... -
Page 9: Functional Description
Self-learning mode with a smooth stop at both ‹ The RolloTube M-line tubular motors are self-learning end positions, see page 23. motors with a smooth stop at both end positions. The Torque monitoring ‹... -
Page 10: Obstacle Detection Function
6.2 Obstacle detection function The tubular motor stops and automatically travels Information about multi-part systems briefly in the opposite direction (reversing), in the event that the roller shutter hits an obstacle while When using a tubular motor with ob- closing. stacle detection in multi-part systems (several screens powered by a wind- Requirements for correct obstacle detection:... -
Page 11: Important Installation Instructions
The following installation instructions apply to Required minimum width for the roller shutter standard installation situations in combination with box: RADEMACHER tubular motors and accessories. Tubular motor type: Small Medium The drive head (12) of the motor can be installed Minimum width approx.:... -
Page 12: Mounting The Bearings
7.2 Mounting the bearings First determine the position of the drive (13) and ATTENTION! counter bearing (1) in the roller shutter box. A roller shutter wound at an angle can block the Wind the roller shutter casing fully onto the winding drive and cause damage. -
Page 13: Mounting / Dismantling The Adapter (10)
7.4 Mounting / dismantling the adapter (10) Mounting the adapter (10) Slide the adapter (10) over the magnetic ring (18) on the drive head until it engages. In doing so, check the correct positioning of the groove in the adapter (18) (10) (original factory settings). -
Page 14: Mounting The Catch (8) With The Freewheel Mechanism
7.6 Mounting the catch (8) with the freewheel mechanism If the tubular motor is to be operated with the self-learning end point setting and obstacle detection, then the catch (8) must be mounted with the freewheel mechanism (original factory settings). Slide the catch (8) onto the drive adapter (19) (19) so that it can free-wheel and so that it engages... -
Page 15: Sliding The Tubular Motor (9) Into The Winding Shaft
7.8 Sliding the tubular motor (9) into the winding shaft ATTENTION! Inserting the tubular motor (9) forcibly into the winding shaft (5) will cause serious damage. Never knock the tubular ‹ motor (9) with force into the winding shaft (5). First slide the catch (8) into the winding shaft (5). - Page 16 7.9 Preparation for use of the precision tubes Saw a groove in the end of the precision tube RolloTube M-line Small in order that the cam of the adapter (10) can be completely pressed into the tube.
-
Page 17: Mounting The Roller Capsule (4)
7.10 Mounting the roller capsule (4) Slide the roller capsule (4) into the winding shaft (5) and subsequently place the ball bearing (2) onto the axle pin (3) of the roller capsule. 7.11 Mounting the motor into the bearings 7.11.1 Mounting into the drive bearing as a click bearing (13) Press the drive head (12) lightly into the click bear- ing (13) until it engages. -
Page 18: Mounting Into The Counter Bearing (1)
Insert the other end of the winding shaft (5) with the ball bearing (2) into the counter bearing (1). In the event that you are using a different drive bearing than the RADEMACHER click bearing (13), you may need to secure the drive with a secondary cotter pin. -
Page 19: Mounting The Roller Shutter With Ties
7.12 Mounting the roller shutter (17) Mount the shaft connectors (6) at the winding shaft (5). In order to do so, follow the information provided in the operating manual for shaft connectors. Slide the retainer profile for each shaft connector (6) onto the uppermost slat of the roller shutter (17). -
Page 20: Safety Instructions For The Electrical Connection
8. Safety instructions for the electrical connection DANGER! WARNING! WARNING! Risk of fatal electric shock when touching Risk of short-circuit resulting from damaged electrical components. cable. Carry out all installation and connection work only Lay all cables in the roller shutter box so that they ‹... -
Page 21: Electrical Connection Of The Tubular Motor
This avoids the motor experiencing sources of interference or excess voltages. 8.2.2 Parallel connection of several motors Installation example It is possible to connect numerous RADEMACHER tubular motors in parallel. The number of motors to be connected in parallel is dependent on the capacity of the switchgear and circuit-breakers. -
Page 22: Connection Of The Universal Setting Cable For Manual End Point Setting
(15) with the same colours and corresponding to their functions, see also figure [ 25 ]: Pin assignment: Button assignment for RolloTube M-line: The connection is made with the same colours as the motor connecting cable of the RolloTube M-... -
Page 23: Self-Learning Mode With Smooth Stop
9. Self-learning mode with smooth stop The RolloTube M-line is delivered from the factory in Switch on the mains power supply. self-learning mode with a smooth stop and can be The RolloTube M-line is ready for operation imme- put into operation immediately after the electrical diately. - Page 24 10. Manual adjustment of end points With the set button on the With the universal With the cord-switch tubular motor setting unit setting cable Move the roller shut- Direction Direction of travel 1 of travel 1 ters in the desired direction.
-
Page 25: Test Run / Modifying The End Points
10.1 Test run / modifying the end points Check the direction of travel of the motor. Switch ATTENTION! the lines for the rotation direction if required, see The tubular motors are designed for transient connection diagram [ 26 ] on page 21. operation (approx. -
Page 26: What To Do If
12. What to do if... ? ...the motor fails to start? ...The roller shutter stops during upward or downward travel? Possible cause: Possible cause: The mains voltage is not available. ‹ Iced-up/jammed roller shutter or obstacle on the ‹ Solution: guide rail. -
Page 27: Technical Specifications
RADEMACHER tubular motors In order to ensure trouble-free operation of If transient operation cannot be deactivated RADEMACHER tubular motors with KNX/EIB from within the software application... Venetian blind actuators, the following parameters ...then you must ensure that the time between... -
Page 28: Simplified Eu Declaration Of Conformity
RADEMACHER Geräte-Elektronik GmbH hereby de- The full text of the EU declaration of conformity is clares that the tubular motors in the RolloTube M-line included with the product and is kept on file by the Small and Medium series comply with the Directives manufacturer. - Page 32 RADEMACHER Geräte-Elektronik GmbH Buschkamp 7 46414 Rhede (Germany)
