Clevertronics LIFELIGHT-2PRO-SMS-600 Installation & Maintenance Instructions

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.
After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red
flashing for a period up to 2 minutes.

Zoneworks and DATA Monitored Options

Lifelights with part numbers LLIFE-2PRO-ZW-SMS, LLIFE-2PRO-DATA-SMS
communications modules (nodes). These fittings are monitored using either Powerline Carrier Technology
that utilising the power cable to provide data communication or a dedicated data cable to/from data routers
installed on a dedicated data trunk connected to a central Server (can also be connected via
Ethernet/Internet/Fibre). Zoneworks software on the server is used to monitor, coordinate testing and
collate test data from each Lifelight. Zoneworks Lifelights can be commissioned by a single push of the test
switch or scanning of the supplied barcode. The LED Test Switch indicator provides a multifunction
indication of the status of the Lifelight during testing and normal operation:
State LED Operation
Commissioned LED on Solid (Green)
Un-commissioned LED flashes at 0.5Hz (0.5s Green, 0.5s Yellow)
Emergency Light Test In Progress LED flashes at 3s On (Yellow) & 0.5s Off
In the case of the DATA version a 2-way "figure 8" cable and terminal block facilitates the connection to the
DATA network via a multi-drop bus (daisy chain connection). For further information of installation of a
Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA
version)

DALI EM Option

Lifelights with part numbers LLIFE-2PRO-DALI-SMS
connection and integration to 3 rd Party
LLIFE-2PRO-DALI-SMS please confirm that the Lighting Control System has the capability to monitor
DALI Emergency Luminaires. The LLIFE-2PRO-DALI-SMS will be addressed and configured into the
control system by the Lighting Control System Commissioning Technicians and not Clevertronics.
State LED Operation
Commissioned/ Un-commissioned LED on Solid (Green)
Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off
"IDENTIFY COMMAND" Fitting goes into emergency mode for 10 seconds
A 2-way "figure 8" cable and terminal block facilitates the connection to the DALI network OR a 5/6way
"structured wiring system" lead and plug facilitating the power and DALI connection. DALI connections
are marked as Da Da.
are fitted with Zoneworks
are fitted with DALI modules (nodes) that facilitate
Lighting Control Systems. Before installing
LIFELIGHT-2PRO-SMS-600

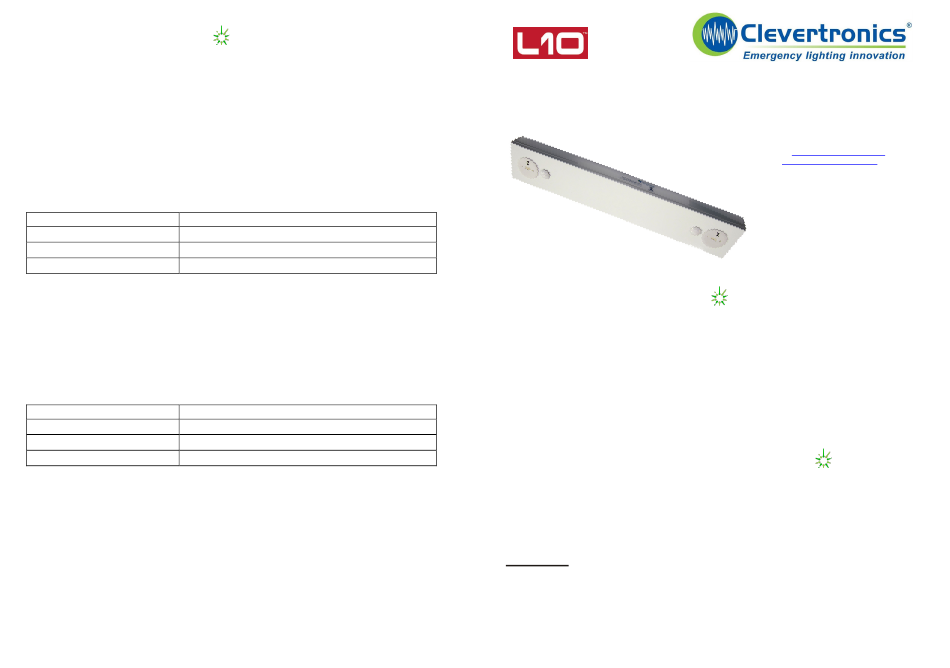

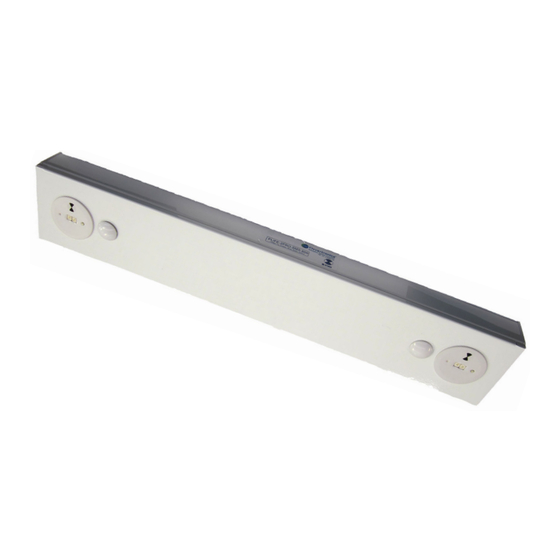

Surface Mount Emergency Luminaire
Installation & Maintenance Instruction Leaflet
Designed in Australia to comply with the requirements
of AS2293.3: 2005 and AS/NZS CISPR15: 2011
NOTE: Standard product codes with this symbol
enabled with Clevertest Plus capability. Please refer to the
operation guide supplied with the product for details.
Models: LLIFE-2PRO-SMS-xx-600-yy
the
Testing:
Manual Test xx = Blank
Zoneworks xx = ZW
Z/W DATA xx = DATA
DALI Comp. xx = DALI
Clevertest xx = CT
(NOTE: -CT Products supplied with the Clevertest Plus Symbol
Clevertest PLUS capability. Please refer to the operation guide supplied with the product for

Spare Parts:

1530230
1100869
LLIFE-PRO-CKIT-NP

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before
installation, ensure that the electricity supply has been switched off and isolated. Installation must be
carried out in accordance with the relevant Australian and International Standards.
