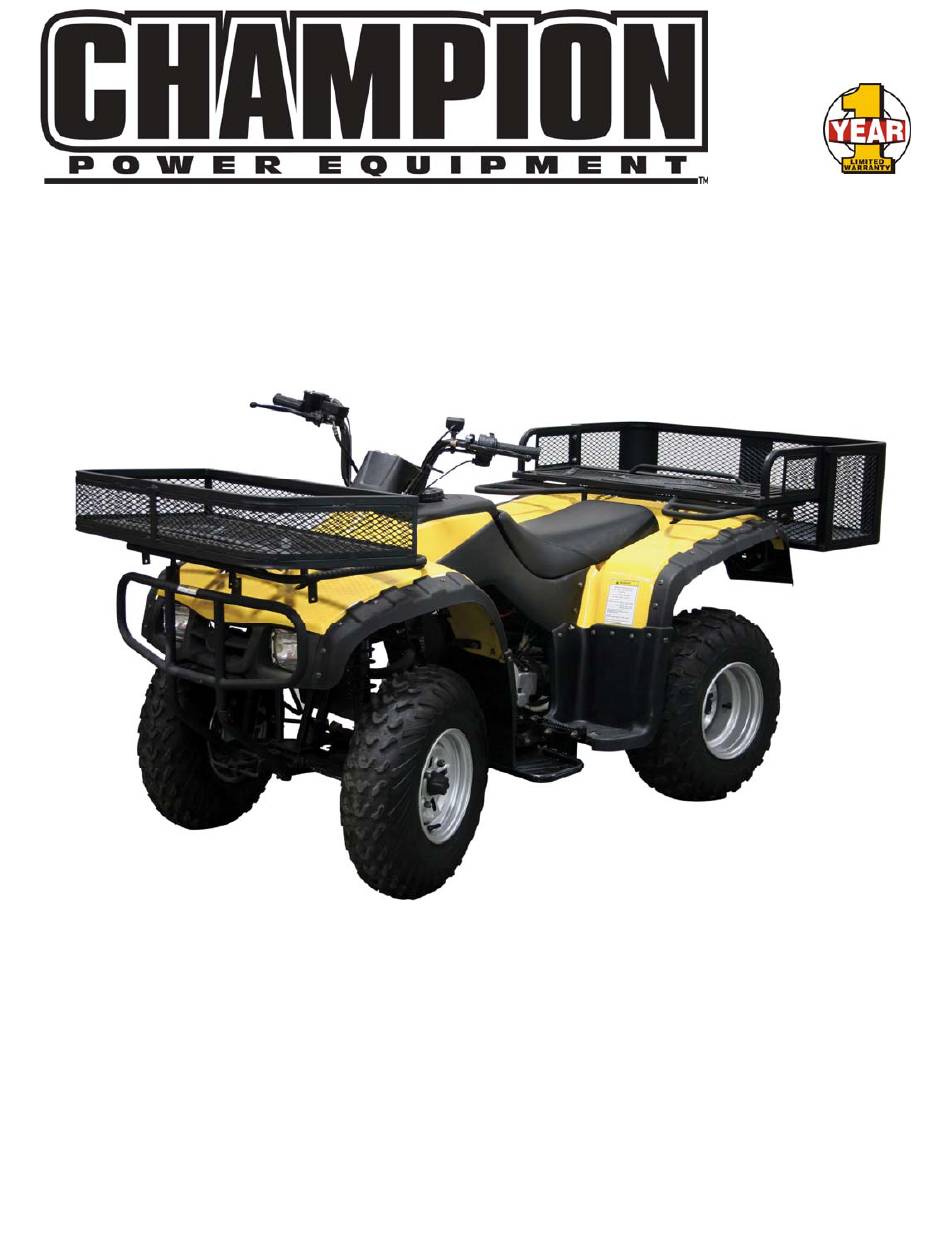

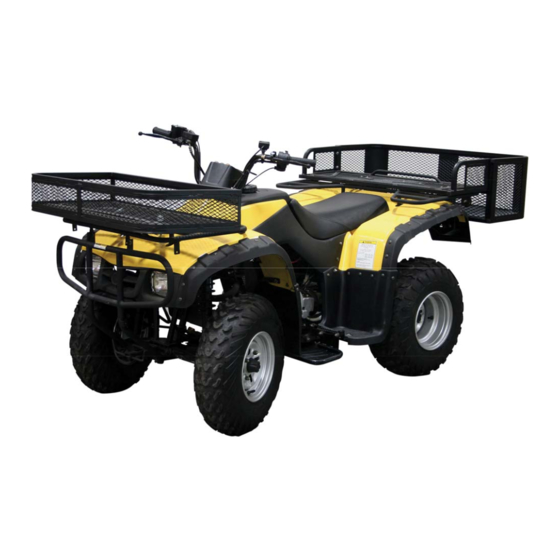

- Page 1 50028 Rev 50028-20080515 Owner’s Manual and Operating Instructions UNIVERSAL MOUNT ATV BASKETS...
- Page 3 50028 Congratulations on your purchase of a Champion Power Equipment ATV Basket. CPE designs and builds these baskets to strict specifications. With proper use and maintenance, it will bring years of satisfying service. Every effort has been made to ensure the accuracy and completeness of the information in this manual.
- Page 4 50028 Front Basket Assembly Instructions Part # Description Qty. If mounting the basket on an ATV rack without an 50028-01 Front Basket upright, attach filler clamps to the basket. The long 50028-02 Filler Clamp clamp will lie over the opening with the flat side up, as...
- Page 5 50028 Drop Basket Assembly Instructions 1. Align the pin on the small basket with the hole on the large basket (Image A on the right) 2. Push down the Big Basket so that the baskets lock in place (Image B) 3.
- Page 6 50028 Part # Description 50028-10 Big Basket 50028-11 Hex Bolt M6X40 50028-12 Big Washer Ø6 50028-13 Hex Lock Nut M6 50028-14 Small Basket 50028-15 Plastic Cap 50028-16 Hex Bolt M6X65 50028-17 Mounting Brackets...
- Page 7 2006. installed improperly. Normal maintenance is not covered by this warranty. Warranty Qualifications Champion Power Equipment (CPE) will register this Other Exclusions warranty upon receipt of your Warranty Registration Card This warranty excludes: and a copy of your sales receipt from one of CPE's retail Cosmetic defects such as paint, decals, etc.
- Page 8 50028 10006 Santa Fe Springs Rd. Santa Fe Springs, CA 90670 Customer Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 Fax no.: 1-562-236-9429 Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999...
