Summary of Contents for Champion Power Equipment 14051

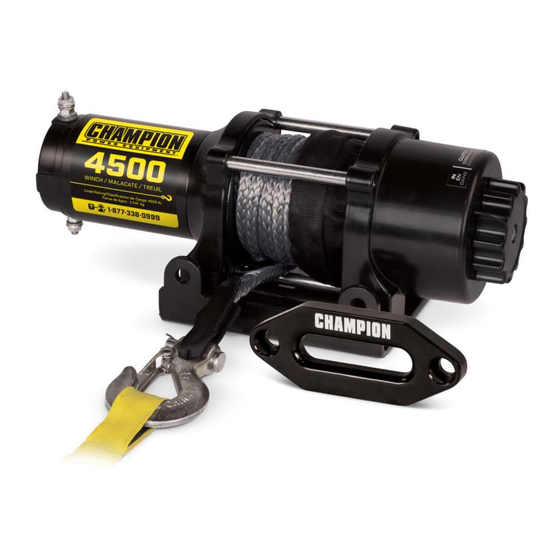

- Page 1 OWNER’S MANUAL & OPERATING INSTRUCTIONS 4500 lb. WINCH MODEL NUMBER 14051 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions MADE IN CHINA USA / 1-877-338-0999 are included in this manual. REV 14051-20160719 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
14051 4500 lb. WINCH TAblE Of CONTENTS . . . . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
INTRODUCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and Power Equipment winch . CPE designs and builds sells accessories designed to help you get the winches to strict specifications . With proper use most from your purchase . To find out more about and maintenance, this winch will bring years of our covers, tree savers, hooks, fairleads, etc .,... -
Page 5: Manual Conventions
14051 ENGLISH MANUAl CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information . The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment . -
Page 6: Safety Rules
ENGLISH 14051 SAfETy RUlES WARNING WARNING Read this manual thoroughly before operating Do not use the winch to secure or hold a your winch . Failure to follow instructions could vehicle for a long period of time . Do not use result in serious injury or death . - Page 7 14051 ENGLISH SAfETy RUlES WARNING CAUTION When re-spooling the cable, ensure that the Duration of winching pulls should be kept as cable spools in the under-wind position with short as possible . the cable entering the drum from the bottom, If the motor becomes uncomfortably hot to not the top .
-
Page 8: Controls And Features
ENGLISH 14051 CONTROlS AND fEATURES Read this owner’s manual before operating your winch . Familiarize yourself with the location and function of the controls and features . Save this manual for future reference . Winch Motor - 1 .6 HP/1 .2 kW 12V DC motor... -
Page 9: Assembly
14051 ENGLISH ASSEMbly Mounting the Winch Mounting the Winch Cont’d. This CPE 4,500 lb . winch is designed with a NOTE bolt pattern that is standard in this class of winch . Many winch mounting kits are available The type of vehicle to which the winch and... -
Page 10: Wiring The Winch
ENGLISH 14051 ASSEMbly Wiring the Winch Wiring the Winch Cont’d. 6 . Splice the end of the red wire on the rocker CAUTION switch, to an ignition (keyed) controlled power source using the supplied wire tap . NEVER route electrical cables across any 7 . -
Page 11: Wiring Diagram
14051 ENGLISH ASSEMbly Wiring Diagram Negative (–) blue yellow Positive (+) black Negative (–) Positive (+) To Switch and Remote Wiring Switch Wiring Diagram Green black Ignition Wire... -
Page 12: Operation
Self Recovery Locate a suitable anchor such as a strong tree trunk Your 14051 winch is rated at a 4,500 lb . or boulder . Always use a sling as an anchor point . (2041 kg) capacity in first layer (max) when spooling the first rope layer on the drum . -
Page 13: Synthetic Rope Abrasion Sleeve
14051 ENGLISH OPERATION Synthetic Rope Abrasion Sleeve Winching Techniques A-Z Cont’d. The winch should be set up to avoid any rough (n) Clear the area . Make sure all spectators stand surface from contacting the rope . If that is not... -
Page 14: Maintenance
ENGLISH 14051 MAINTENANCE lubrication The owner/operator is responsible for all periodic maintenance . All moving parts within the Electric Winch having been Lubricated using high temperature lithium WARNING grease at the factory . No internal lubrication is required . Lubricate Cable Assembly periodically Never operate a damaged or defective winch . -
Page 15: Specifications
14051 ENGLISH SPECIfICATIONS Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 16: Parts Diagram
ENGLISH 14051 SPECIfICATIONS Parts Diagram... -
Page 17: Parts List
14051 ENGLISH Parts list Part Number Description Part Number Description Motor Assembly - Aluminum Hawse - 456100A-BF 34 250088 Black Flat (Horizontal) 124mm 450001 Coupling, I 35 250011 Circlip ø15 450002 Spring, Coupling 36 300020 Washer ø8, Locking 450003A Coupling, II 37 300019 Washer ø8, Flat... -
Page 18: Troubleshooting
ENGLISH 14051 TROUblESHOOTING Problem Cause Solution Motor does not turn on Loose battery cable connections Tighten nuts on all cable connections Defective Switch Assembly Replace Switch Assembly Defective motor Check for voltage at armature port with Switch pressed . If voltage is present, Replace motor Water has entered motor Allow to drain and dry . - Page 19 Accessory parts such as starting batteries, and storage Warranty Qualifications covers. Champion Power Equipment (CPE) will register this warranty – Failures due to acts of God and other force majeure upon receipt of your Warranty Registration Card and a copy events beyond the manufacturer’s control.
